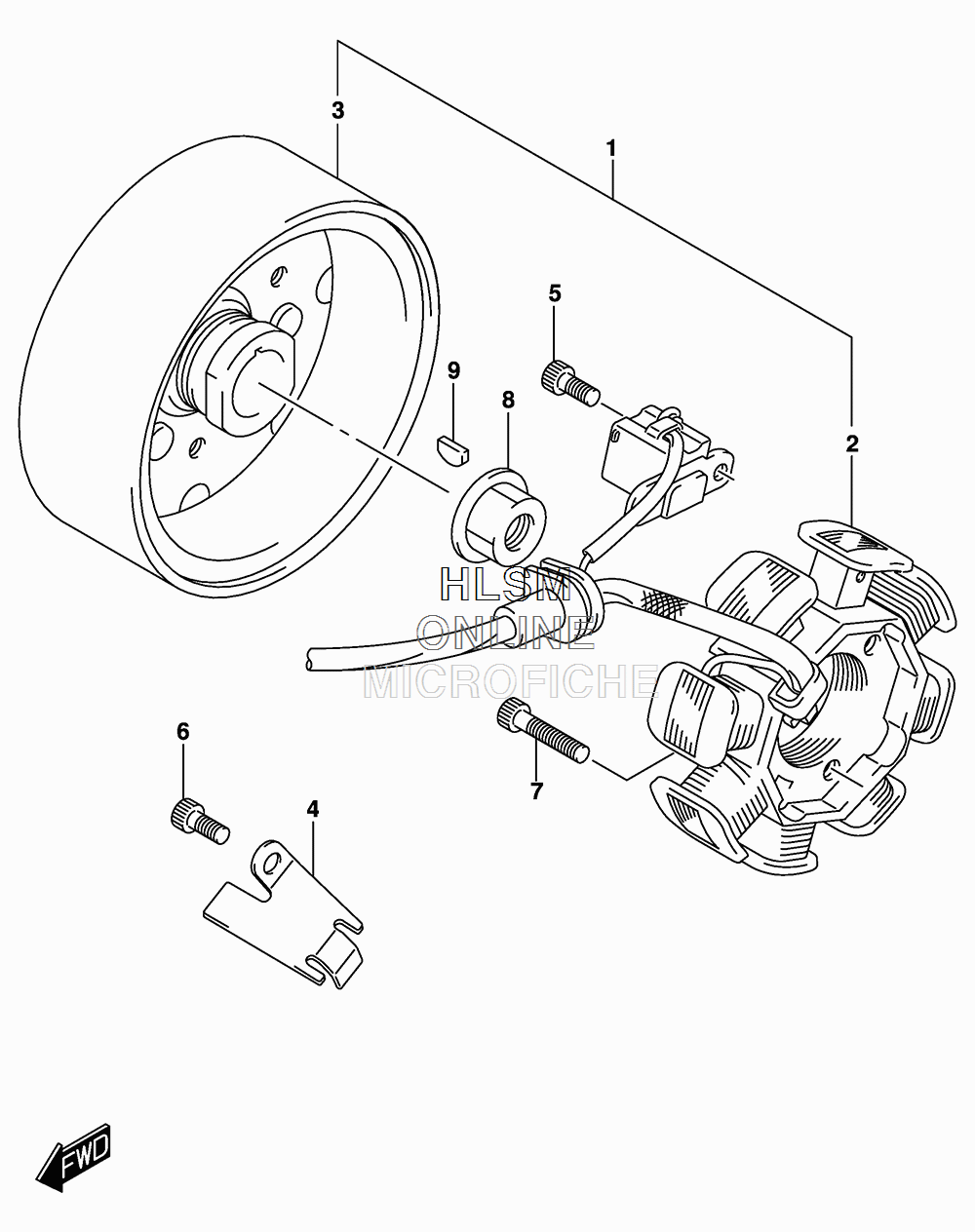

MAGNETO для Suzuki DR-Z70 - 2016 года выпуска
-
№АртикулНазвание
-
132100-14H00 MAGNETO ASSYMAGNETO ASSY
-
232101-14H00 ...STATOR ASSY, MAGNETO...STATOR ASSY, MAGNETO
-
332102-14H00 ...ROTOR ASSY, MAGNETO...ROTOR ASSY, MAGNETO
-
432371-30D00 CLAMP, MAGNETO LEAD WIRECLAMP, MAGNETO LEAD WIRE
-
507130-0512A BOLTBOLT
-
607130-0612A BOLTBOLT
-
707130-0620A BOLTBOLT
-
808316-1010A NUTNUT
-
908341-31039 KEYKEY
