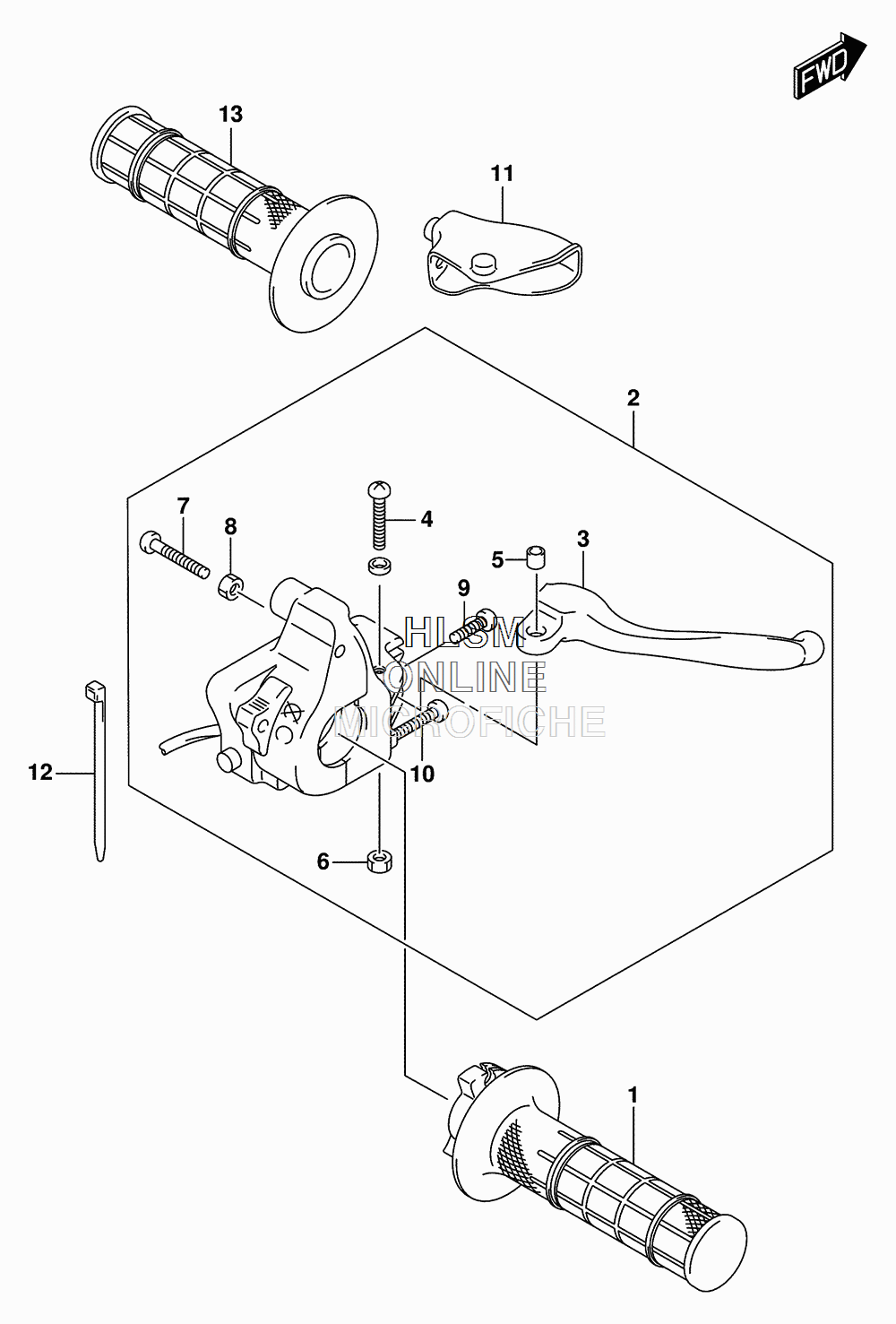

HANDLE LEVER для Suzuki DR-Z70 - 2016 года выпуска
-
№АртикулНазвание
-
157110-14H00 GRIP, THROTTLEGRIP, THROTTLE
-
257300-14H01 LEVER ASSY, FRONT BRAKELEVER ASSY, FRONT BRAKE
-
357421-14H00 ...LEVER...LEVER
-
402112-0525A ...SCREW...SCREW
-
557435-12900 ...SPACER...SPACER
-
608319-2105A ...NUT...NUT
-
702112-0525A ...SCREW...SCREW
-
808310-0005A ...NUT...NUT
-
902112-0516A ...SCREW...SCREW
-
1002112-0545A ...SCREW...SCREW
-
1157314-14H00 COVER, LEVERCOVER, LEVER
-
1209407-11401 CLAMP (L:95)CLAMP (L:95)
-
1357211-14H00 GRIP, LHGRIP, LH
