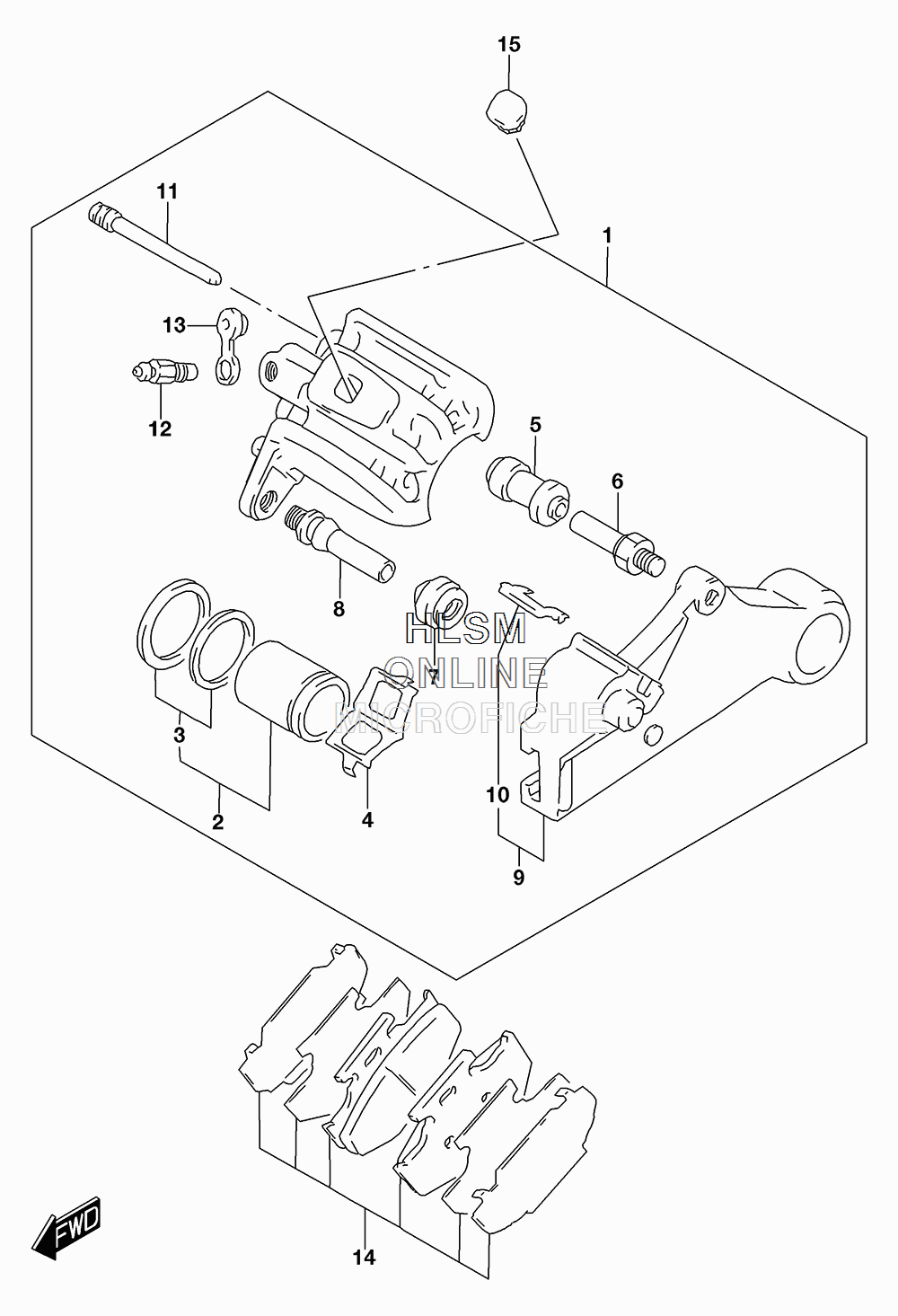

BRAKE - REAR CALIPER для Suzuki DR650SE - 2016 года выпуска
-
№АртикулНазвание
-
169100-32E00-999 CALIPER ASSY, REARCALIPER ASSY, REAR
-
269100-43830 ...PISTON SET...PISTON SET
-
369100-13810 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459315-27C10 ...SPRING...SPRING
-
559386-13A00 ...BOOT...BOOT
-
659382-27C30 ...PIN...PIN
-
759303-14500 ...BOOT...BOOT
-
859305-27C00 ...PIN...PIN
-
969150-32E00 ...BRACKET...BRACKET
-
1069113-43D00 ......RETAINER......RETAINER
-
1169345-43D00 ...PIN...PIN
-
1259121-01A00 ...BLEEDER...BLEEDER
-
1359122-01A00 ...CAP...CAP
-
1469100-32830 PAD AND SHIM SETPAD AND SHIM SET
-
1569171-14D00 COVER, CALIPER BODYCOVER, CALIPER BODY
