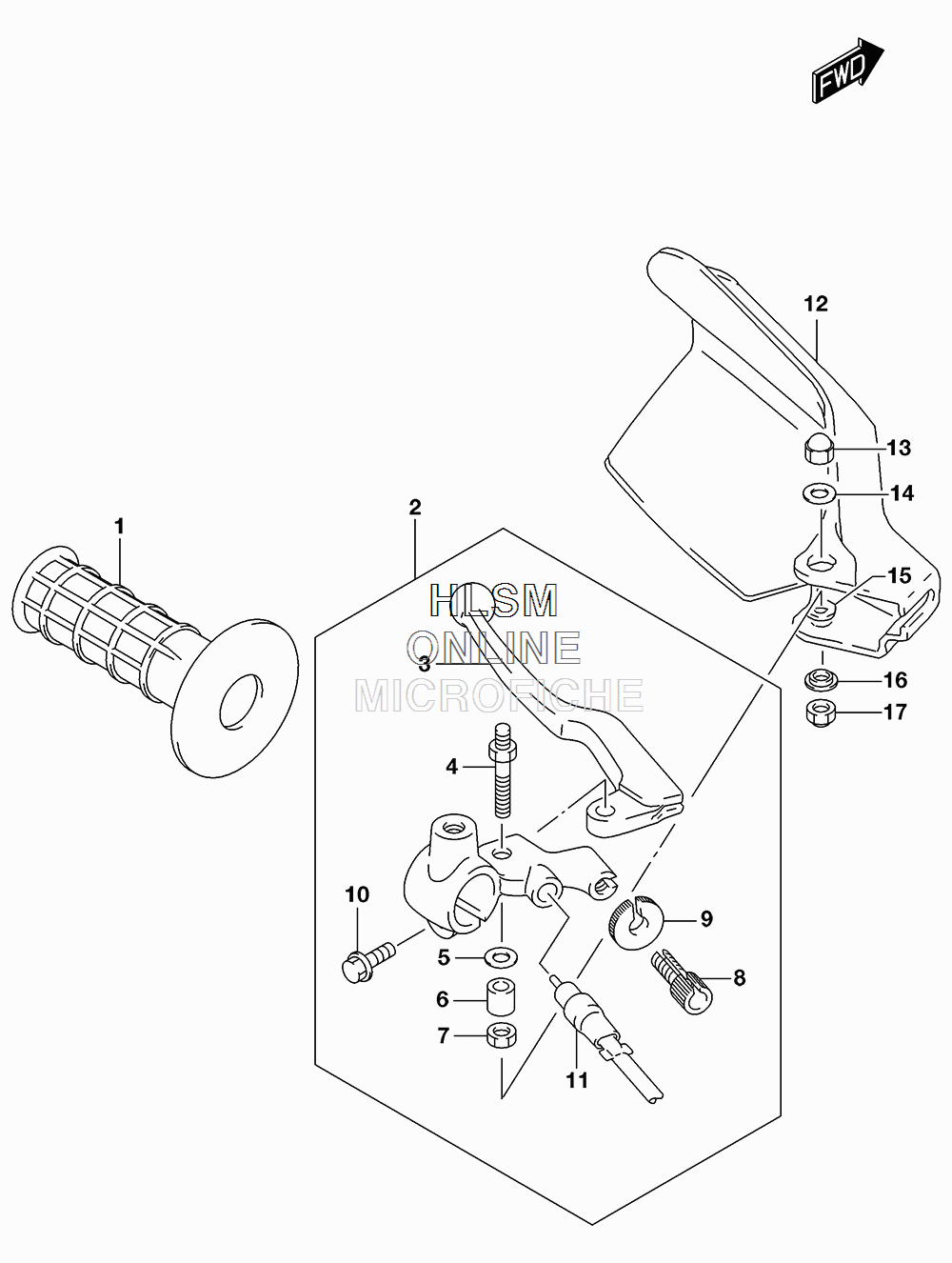

HANDLEBAR - LEFT HAND LEVER для Suzuki DR650SE - 2016 года выпуска
-
№АртикулНазвание
-
157211-12D00 GRIP, LHGRIP, LH
-
257500-12E30 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
357421-12E30 ...LEVER, CLUTCH...LEVER, CLUTCH
-
457531-12E30 ...BOLT...BOLT
-
557533-12E30 ...WASHER...WASHER
-
657532-12E30 ...SPACER...SPACER
-
708319-2106B ...NUT...NUT
-
857441-45C00 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
957442-45C00 ...NUT...NUT
-
1001547-0620B ...BOLT...BOLT
-
1157560-13E02 ...SWITCH ASSY, CLUTCH...SWITCH ASSY, CLUTCH
-
1257541-31D20-019 COVER, KNUCKLE LEFT HAND (BLACK)COVER, KNUCKLE LEFT HAND (BLACK)
-
1308313-1006B NUTNUT
-
1409160-06154 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
1509160-06019 WASHER (6.5X16X1.2)WASHER (6.5X16X1.2)
-
1609169-06055 WASHERWASHER
-
1708319-2106A NUTNUT
