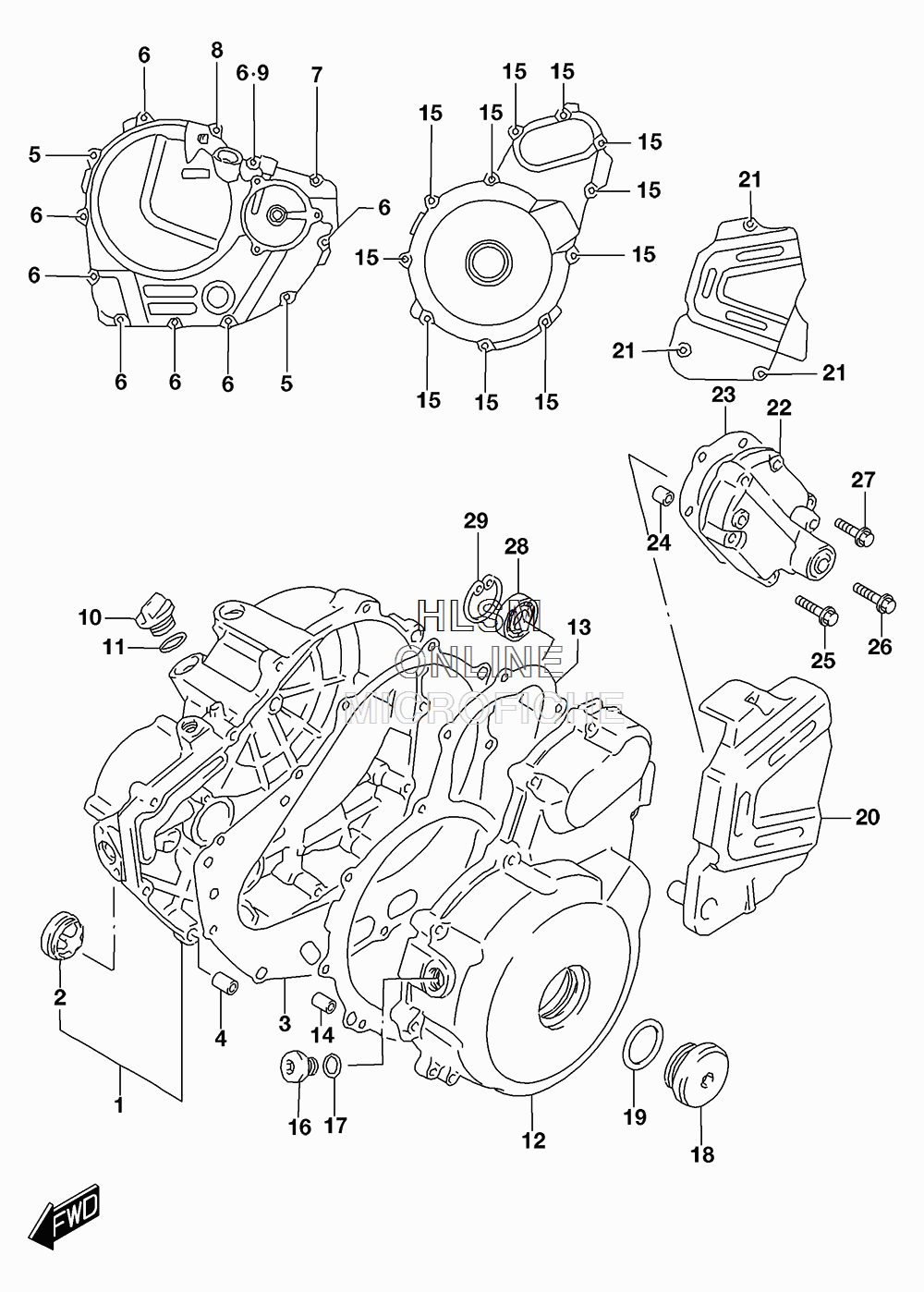

CRANKCASE COVER для Suzuki DR650SE - 2016 года выпуска
-
№АртикулНазвание
-
111340-32E00 COVER, CLUTCHCOVER, CLUTCH
-
211971-33210 ...LENS, OIL LEVEL...LENS, OIL LEVEL
-
311482-32E00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
404211-09149 PINPIN
-
501547-0645A BOLTBOLT
-
601547-0635A BOLTBOLT
-
701547-0630A BOLTBOLT
-
801547-0625A BOLTBOLT
-
909168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1009259-20019 PLUGPLUG
-
1109280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1211351-32E01 COVER, MAGNETOCOVER, MAGNETO
-
1311483-32E00 GASKETGASKET
-
1404211-09149 PINPIN
-
1501547-0630A BOLTBOLT
-
1609248-14011 PLUGPLUG
-
1709168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1809259-36016-20H PLUG (SILVER)PLUG (SILVER)
-
1909280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
2011361-32E00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2101547-0635A BOLTBOLT
-
2211371-12D30 COVER, GEAR SHIFTCOVER, GEAR SHIFT
-
2311485-12D01 GASKETGASKET
-
2404211-09149 PINPIN
-
2501547-0635A BOLTBOLT
-
2601547-0630A BOLTBOLT
-
2701547-0620A BOLTBOLT
-
2809262-12001 BEARING (12X28X8)BEARING (12X28X8)
-
2908331-41289 CIRCLIPCIRCLIP
