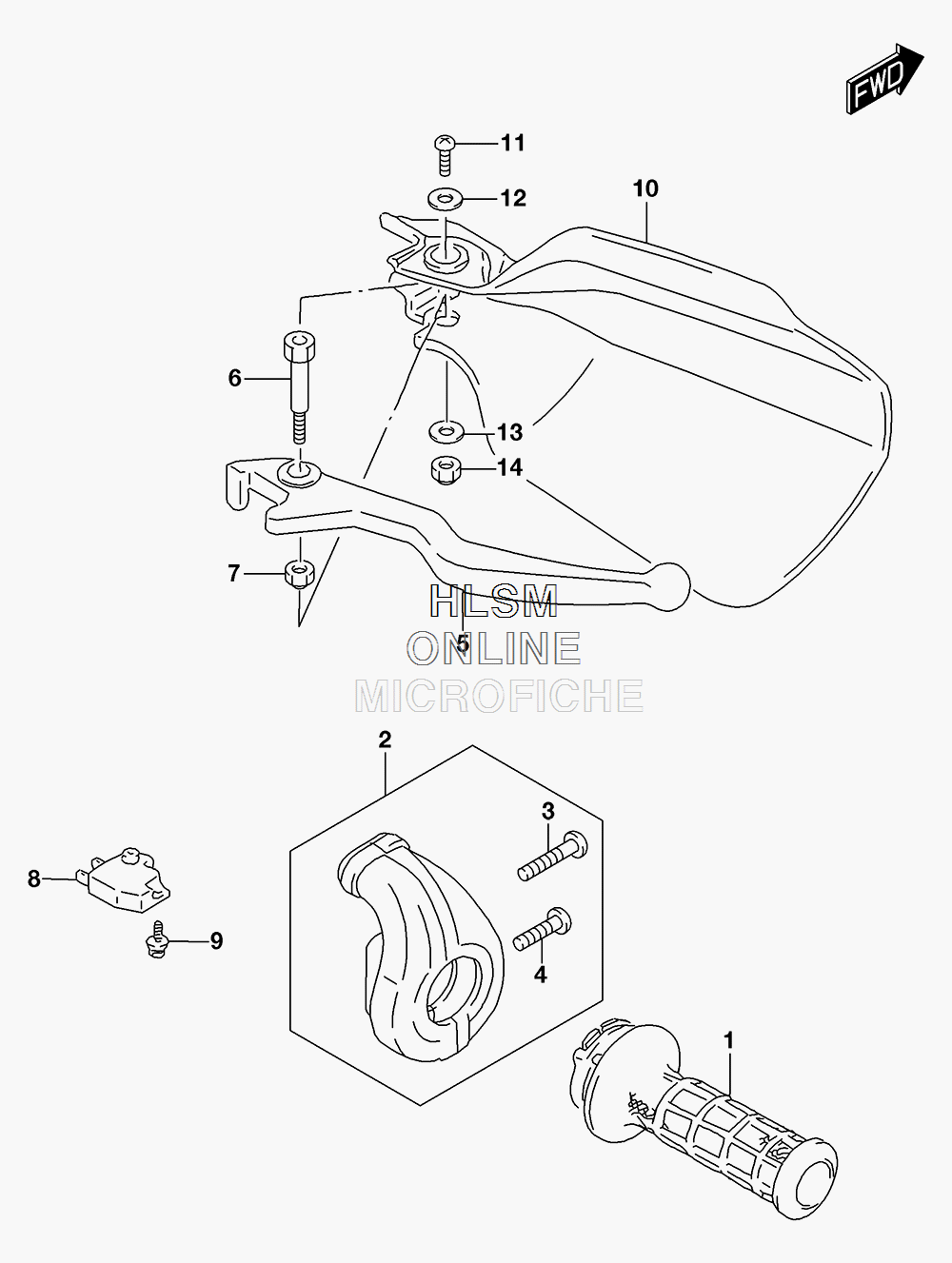

HANDLEBAR - RIGHT HAND LEVER для Suzuki DR650SE - 2016 года выпуска
-
№АртикулНазвание
-
157110-12D11 GRIP, THROTTLEGRIP, THROTTLE
-
257100-14D00 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
302112-0525B ...SCREW...SCREW
-
402112-0520B ...SCREW...SCREW
-
557421-13001 LEVERLEVER
-
657431-05D00 BOLTBOLT
-
757433-09F00 NUTNUT
-
857460-14J01 SWITCH ASSY, FRONT BRAKESWITCH ASSY, FRONT BRAKE
-
957465-17C00 ...SCREW...SCREW
-
1057341-05D10-019 COVER, KNUCKLE RIGHT HAND (BLACK)COVER, KNUCKLE RIGHT HAND (BLACK)
-
1102142-0510B SCREWSCREW
-
1209160-05043 WASHER (5.5X16X1.2)WASHER (5.5X16X1.2)
-
1309160-06130 WASHER (6.5X16X1.6)WASHER (6.5X16X1.6)
-
1408319-2106A NUTNUT
