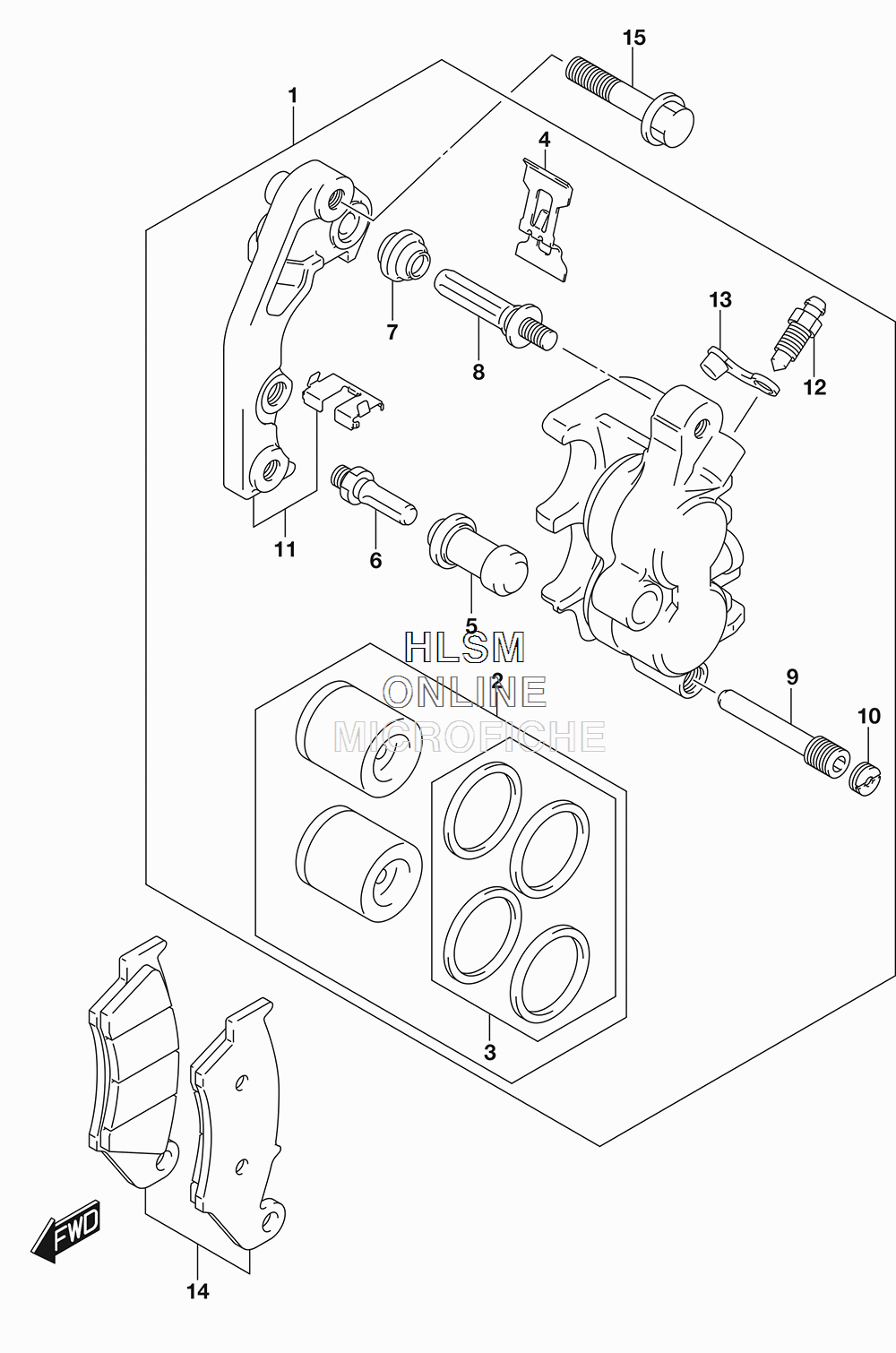

BRAKE - FRONT CALIPER для Suzuki RM-Z250L7 - 2017 года выпуска
-
№АртикулНазвание
-
159300-28H00-999 CALIPER ASSY, FRONTCALIPER ASSY, FRONT
-
259300-28830 ...PISTON SET...PISTON SET
-
359300-13820 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459315-13E00 ...SPRING, PAD...SPRING, PAD
-
559386-13A00 ...BOOT...BOOT
-
659382-37F00 ...BOLT...BOLT
-
759303-14500 ...BOOT...BOOT
-
859305-27C00 ...PIN...PIN
-
959345-13E00 ...PIN, HANGER...PIN, HANGER
-
1059146-21E10 ...PLUG, PIN...PLUG, PIN
-
1159350-13E00 ...BRACKET...BRACKET
-
1259121-01A00 ...BLEEDER...BLEEDER
-
1359122-01A00 ...CAP, BLEEDER...CAP, BLEEDER
-
1459301-36810 PAD SETPAD SET
-
1509103-08403 BOLT (8X41)BOLT (8X41)
