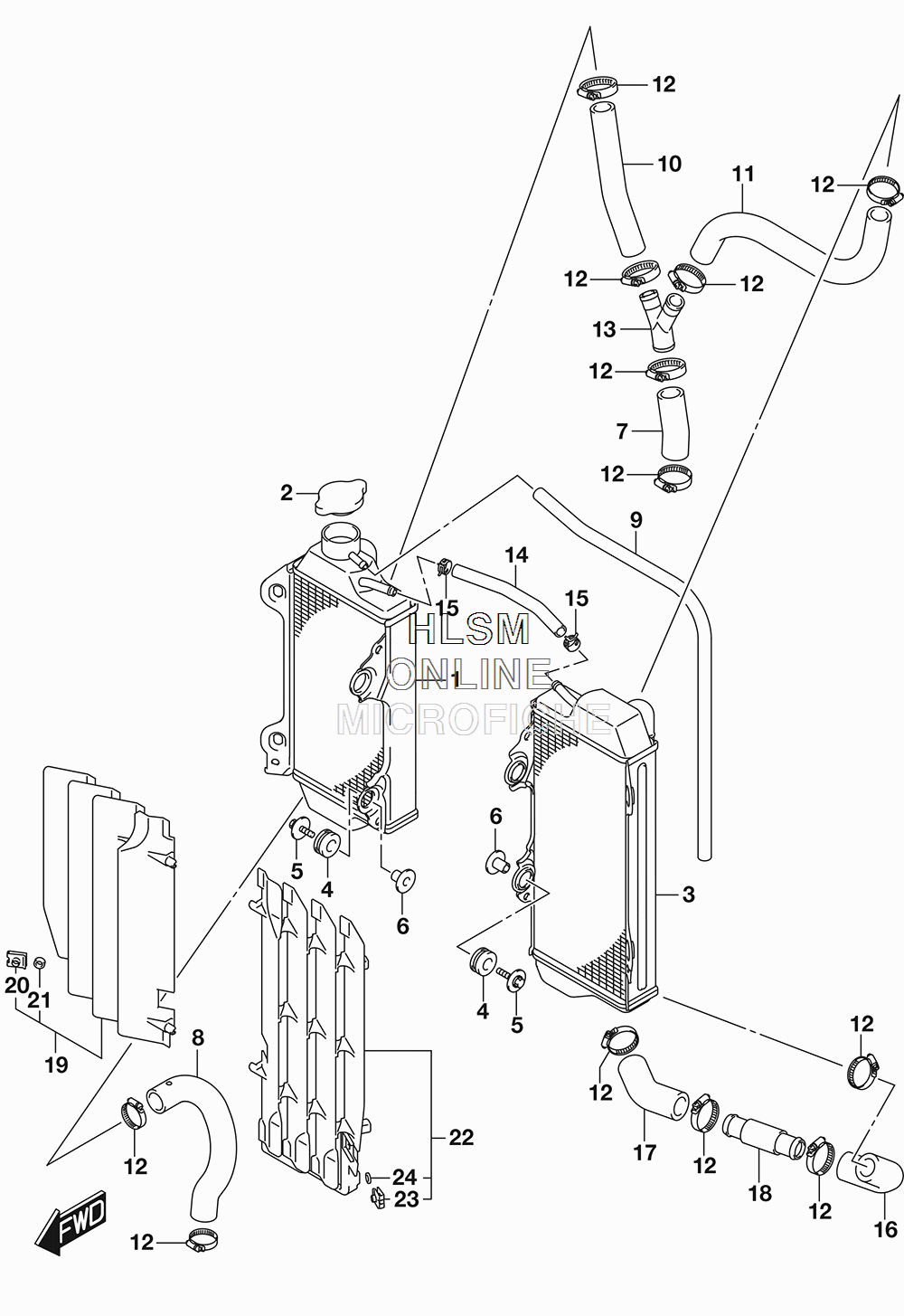

RADIATOR для Suzuki RM-Z250L7 - 2017 года выпуска
-
№АртикулНазвание
-
117710-49H10 RADIATOR, WATER, (RH)RADIATOR, WATER, (RH)
-
217730-08J00 CAP, RADIATOR (1.1)CAP, RADIATOR (1.1)
-
317720-49H10 RADIATOR, WATER, (LH)RADIATOR, WATER, (LH)
-
417787-19A00 CUSHION, RADIATOR SUPPORTCUSHION, RADIATOR SUPPORT
-
509116-06186 BOLT (6X25)BOLT (6X25)
-
609180-06243 SPACER (6.5X10.5X14.1)SPACER (6.5X10.5X14.1)
-
717851-49H10 HOSE, INLET NO.1HOSE, INLET NO.1
-
817852-49H10 HOSE, OUTLET NO.1HOSE, OUTLET NO.1
-
909351-50801-00A HOSE (5X8X1000) (L:1000->700)HOSE (5X8X1000) (L:1000->700)
-
1017853-49H10 HOSE, INLET NO.2HOSE, INLET NO.2
-
1117854-49H20 HOSE, INLET NO.3HOSE, INLET NO.3
-
1209402-28513 CLAMPCLAMP
-
1317856-28H00 JOINT, RADIATOR HOSEJOINT, RADIATOR HOSE
-
1417855-35G00 HOSE, BYPASSHOSE, BYPASS
-
1509401-11415 CLIPCLIP
-
1617855-49H10 HOSE, OUTLET NO.2HOSE, OUTLET NO.2
-
1717858-49H00 HOSE, OUTLET NO.3HOSE, OUTLET NO.3
-
1817859-49H00 PIPE, OUTLETPIPE, OUTLET
-
1917801-49H00 LOUVER, RADIATOR (RH)LOUVER, RADIATOR (RH)
-
2009148-06017 ...NUT...NUT
-
2109180-06129 ...SPACER (6.2X10X2.2)...SPACER (6.2X10X2.2)
-
2217802-49H00 LOUVER, RADIATOR (LH)LOUVER, RADIATOR (LH)
-
2309148-06017 ...NUT...NUT
-
2409180-06129 ...SPACER (6.2X10X2.2)...SPACER (6.2X10X2.2)
