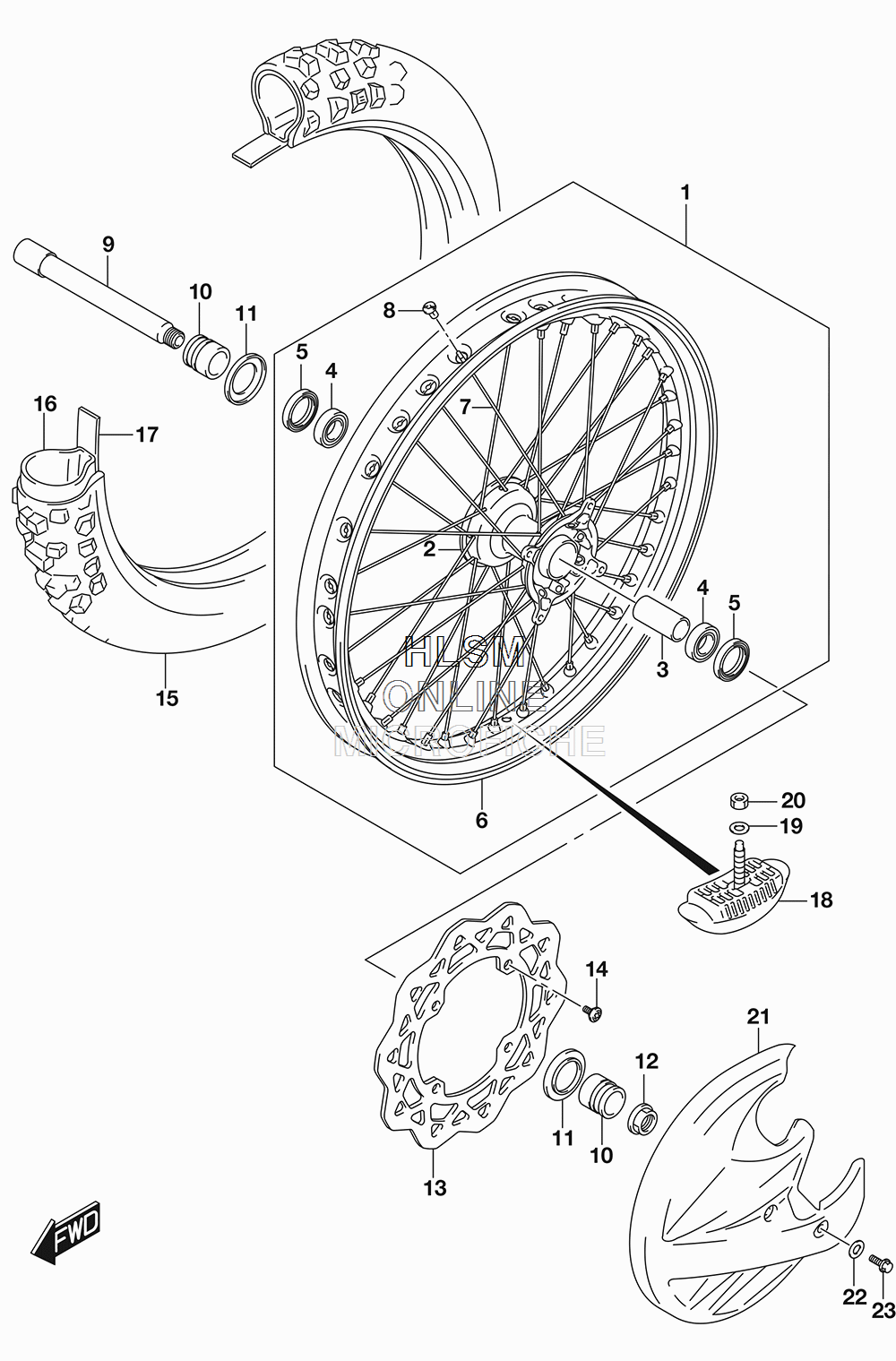

WHEEL - FRONT для Suzuki RM-Z250L7 - 2017 года выпуска
-
№АртикулНазвание
-
154100-10H10 WHEEL ASSY, FRONTWHEEL ASSY, FRONT
-
254111-35G01 ...HUB, FRONT WHEEL...HUB, FRONT WHEEL
-
354731-35G00 ...SPACER, FRONT HUB...SPACER, FRONT HUB
-
409262-22034 ...BEARING (22X39X9)...BEARING (22X39X9)
-
509283-30073 ...OIL SEAL (30X40X7)...OIL SEAL (30X40X7)
-
655311-10H10 ...RIM, FRONT WHEEL (21X1.60)...RIM, FRONT WHEEL (21X1.60)
-
755321-35G10 ...SPOKE, FRONT WHEEL...SPOKE, FRONT WHEEL
-
855325-35G00 ...NIPPLE, FRONT WHEEL...NIPPLE, FRONT WHEEL
-
954711-35G00 AXLE, FRONTAXLE, FRONT
-
1054741-35G00 SPACER, FRONT AXLESPACER, FRONT AXLE
-
1154742-35G00 COVER, FRONT AXLE SPACERCOVER, FRONT AXLE SPACER
-
1209159-18016 NUTNUT
-
1359221-28H10 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1409139-06142 SCREW (6X13.5)SCREW (6X13.5)
-
1555110-49H10 TIRE, FRONT (80/100-21 51M MX DUNLOP)TIRE, FRONT (80/100-21 51M MX DUNLOP)
-
1655200-29F00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
1755261-44AF0 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
1865270-14300 STOPPER, BEADSTOPPER, BEAD
-
1908322-0108A WASHERWASHER
-
2008310-0008A NUTNUT
-
2159231-36E30-019 COVER, BRAKE DISC (019 - BLACK) (OPT)COVER, BRAKE DISC (019 - BLACK) (OPT)
-
2259232-36E30 WASHER, DISC COVER (OPT)WASHER, DISC COVER (OPT)
-
2309103-06233 BOLT (6X12) (OPT)BOLT (6X12) (OPT)
