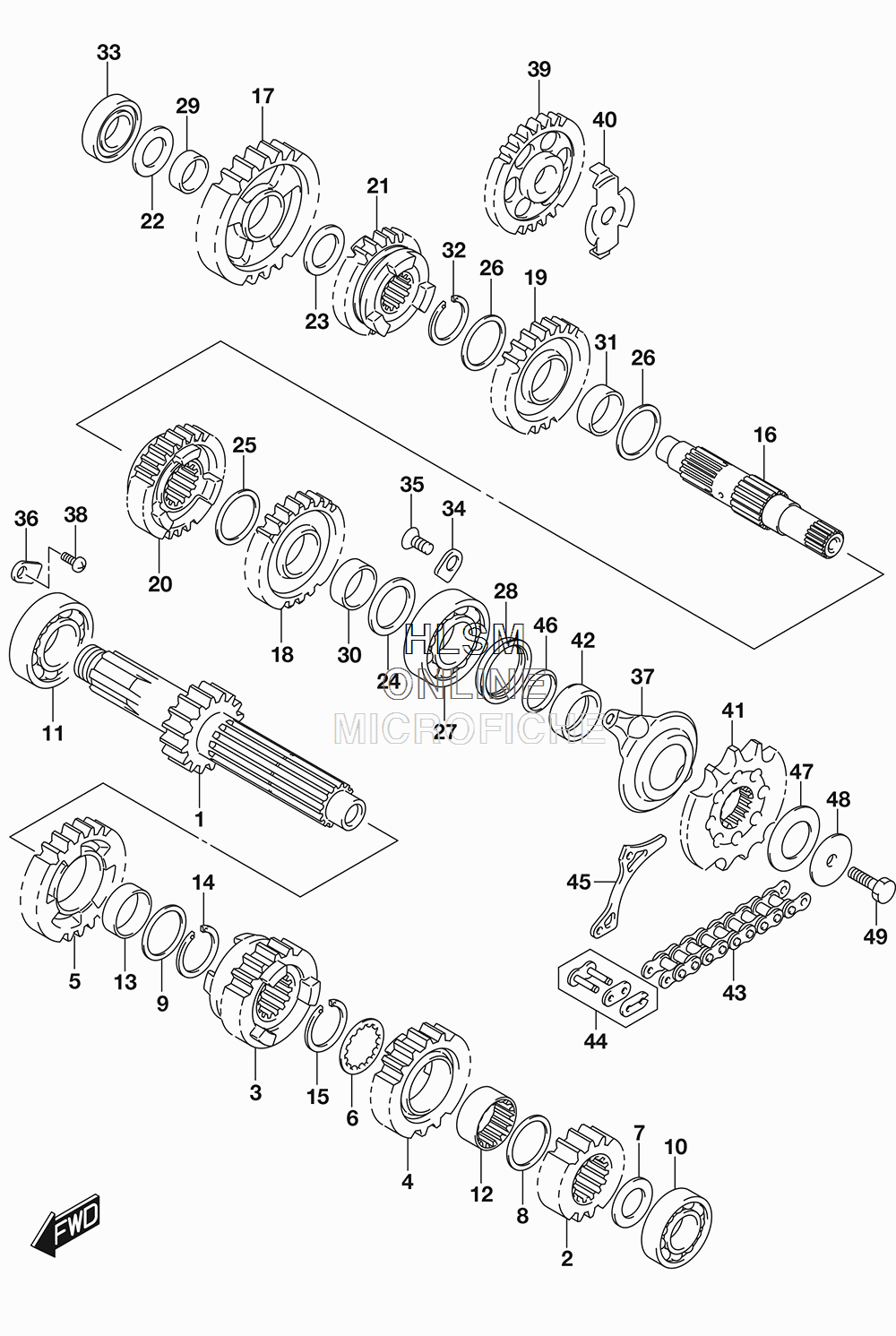

TRANSMISSION для Suzuki RM-Z250L7 - 2017 года выпуска
-
№АртикулНазвание
-
124120-49H10 SHAFT, COUNTER (NT:13)SHAFT, COUNTER (NT:13)
-
224221-49H10 GEAR, 2ND DRIVE (NT:17)GEAR, 2ND DRIVE (NT:17)
-
324231-49H10 GEAR, 3RD DRIVE (NT:17)GEAR, 3RD DRIVE (NT:17)
-
424241-49H10 GEAR, 4TH DRIVE (NT:21)GEAR, 4TH DRIVE (NT:21)
-
524251-49H10 GEAR, 5TH DRIVE (NT:22)GEAR, 5TH DRIVE (NT:22)
-
624243-49H00 WASHER, 4TH DRIVE GEARWASHER, 4TH DRIVE GEAR
-
709181-17195 SHIM (17X28X1)SHIM (17X28X1)
-
809181-24008 SHIM (24X30X1)SHIM (24X30X1)
-
909181-24008 SHIM (24X30X1)SHIM (24X30X1)
-
1009262-17040 BEARING (17X40X9.5) (LH)BEARING (17X40X9.5) (LH)
-
1109262-22018 BEARING (22X50X14) (RH)BEARING (22X50X14) (RH)
-
1224242-49H00 BUSH, 4TH DRIVE GEARBUSH, 4TH DRIVE GEAR
-
1324252-49H00 BUSH, 5TH DRIVE GEARBUSH, 5TH DRIVE GEAR
-
1409380-24007 CIRCLIPCIRCLIP
-
1509380-24007 CIRCLIPCIRCLIP
-
1624131-49H10 SHAFT, DRIVESHAFT, DRIVE
-
1724311-49H10 GEAR, 1ST DRIVEN (NT:28)GEAR, 1ST DRIVEN (NT:28)
-
1824321-49H10 GEAR, 2ND DRIVEN (NT:30)GEAR, 2ND DRIVEN (NT:30)
-
1924331-49H10 GEAR, 3RD DRIVEN (NT:25)GEAR, 3RD DRIVEN (NT:25)
-
2024341-49H10 GEAR, 4TH DRIVEN (NT:26)GEAR, 4TH DRIVEN (NT:26)
-
2124351-49H10 GEAR, 5TH DRIVEN (NT:24)GEAR, 5TH DRIVEN (NT:24)
-
2209181-17195 SHIM (17X28X1)SHIM (17X28X1)
-
2309181-20167 SHIM (20X28X1)SHIM (20X28X1)
-
2409181-22167 SHIM (22X30X1)SHIM (22X30X1)
-
2509181-24008 SHIM (24X30X1)SHIM (24X30X1)
-
2609181-24008 SHIM (24X30X1)SHIM (24X30X1)
-
2709262-22040 BEARING (22X52X15) (LH)BEARING (22X52X15) (LH)
-
2809289-28012 OIL SEAL (28X38X7.5)OIL SEAL (28X38X7.5)
-
2909300-20037 BUSH (20X24X10)BUSH (20X24X10)
-
3024323-49H00 BUSH, 2ND DRIVEN GEARBUSH, 2ND DRIVEN GEAR
-
3124323-49H00 BUSH, 2ND DRIVEN GEARBUSH, 2ND DRIVEN GEAR
-
3209380-24007 CIRCLIPCIRCLIP
-
3309262-17023 BEARING (17X40X12) (RH)BEARING (17X40X12) (RH)
-
3424741-20A00 RETAINER, DRIVE SHAFT BEARINGRETAINER, DRIVE SHAFT BEARING
-
3509126-06011 SCREW (6X12)SCREW (6X12)
-
3624741-21A00 RETAINERRETAINER
-
3724751-49H00 RETAINER, DRIVE SHAFT OIL SEALRETAINER, DRIVE SHAFT OIL SEAL
-
3809125-06122 SCREW (6X12)SCREW (6X12)
-
3926260-49H10 GEAR, KICK STARTER IDLEGEAR, KICK STARTER IDLE
-
4027516-28H00 WASHER, ENG SPROCKET BOLT LOCWASHER, ENG SPROCKET BOLT LOC
-
4127511-49H10 SPROCKET, ENGINE (NT:13)SPROCKET, ENGINE (NT:13)
-
4227531-49H00 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
4327600-43D02-114 CHAIN ASSY, DRIVECHAIN ASSY, DRIVE
-
4427620-43D02 JOINT SET, CHAINJOINT SET, CHAIN
-
4527641-28H00 PLATE, FRONT CHAIN GUIDEPLATE, FRONT CHAIN GUIDE
-
4627515-49H00 D RING, SPROCKET SPACERD RING, SPROCKET SPACER
-
4727514-49H00 WASHER, ENGINE SPROCKET WAVEWASHER, ENGINE SPROCKET WAVE
-
4827513-49H00 WASHER, ENGINE SPROCKETWASHER, ENGINE SPROCKET
-
4927517-28H00 BOLT, ENGINE SPROCKETBOLT, ENGINE SPROCKET
