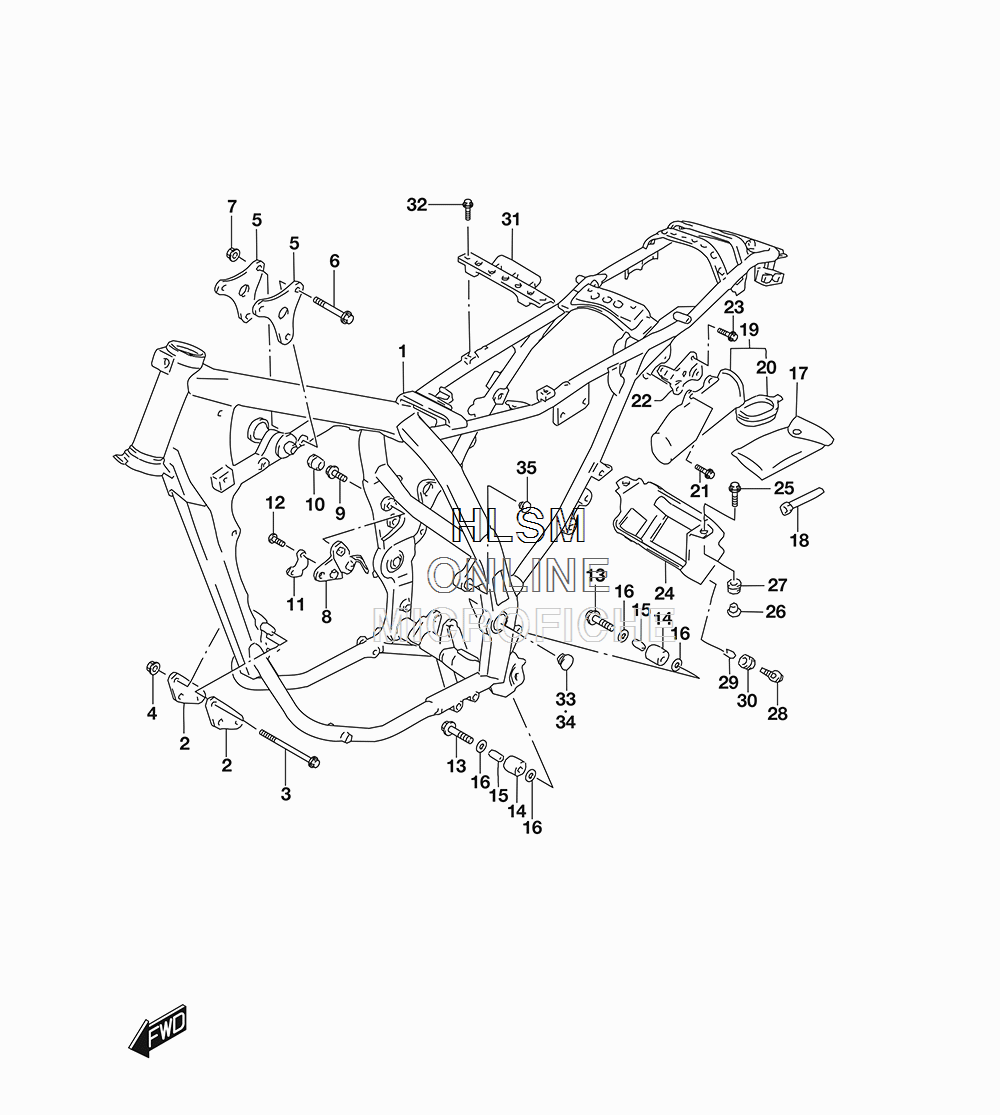

FRAME (CALIF.) для Suzuki DR650SEL8 - 2018 года выпуска
-
№АртикулНазвание
-
141100-32E70-YPT FRAME (YPT - GRAY)FRAME (YPT - GRAY)
-
241911-32E00 PLATE, ENGINE MOUNTING FRONTPLATE, ENGINE MOUNTING FRONT
-
309103-08139 BOLT (8X100)BOLT (8X100)
-
408319-3108A NUTNUT
-
541991-32E00 PLATE, ENGINE MOUNTING UPPERPLATE, ENGINE MOUNTING UPPER
-
609103-08339 BOLT (8X55)BOLT (8X55)
-
708319-3108A NUTNUT
-
841930-32E00-019 PLATE, REAR (RH) (019 - BLACK)PLATE, REAR (RH) (019 - BLACK)
-
901550-0820A BOLTBOLT
-
1009250-20012 PLUG (OD:22)PLUG (OD:22)
-
1143251-32E00 BRACKET, STOP SWITCHBRACKET, STOP SWITCH
-
1202162-0616B SCREWSCREW
-
1309103-08178 BOLT (8X38)BOLT (8X38)
-
1443911-13E00 ROLLER, CHAINROLLER, CHAIN
-
1509180-08119 SPACER (8.6X12X25.5)SPACER (8.6X12X25.5)
-
1608211-08201 WASHERWASHER
-
1709800-21034 TOOL ASSYTOOL ASSY
-
1809816-00100 SPANNER, BOX 16SPANNER, BOX 16
-
1941550-32E00 HOLDER, TOOLHOLDER, TOOL
-
2041552-37210 ...CAP...CAP
-
2109116-06006 BOLT (6X16)BOLT (6X16)
-
2247440-32E00 BRACKET, TOOL HOLDERBRACKET, TOOL HOLDER
-
2301550-0616B BOLTBOLT
-
2441540-32E00 HOLDER, BATTERYHOLDER, BATTERY
-
2509116-06167 BOLT (6X20)BOLT (6X20)
-
2609169-06065 WASHERWASHER
-
2709320-08021 CUSHIONCUSHION
-
2809116-06213 BOLT (6X16)BOLT (6X16)
-
2909180-06038 SPACER (6.1X9X7.5)SPACER (6.1X9X7.5)
-
3009320-08021 CUSHIONCUSHION
-
3141561-32E00 PLATE, FITTINGPLATE, FITTING
-
3201550-0610B BOLTBOLT
-
3343585-32E00 PLUG, FRAME PIVOT (RH)PLUG, FRAME PIVOT (RH)
-
3443595-32E00 PLUG, FRAME PIVOT (LH)PLUG, FRAME PIVOT (LH)
-
3543586-32E00 PLUG, FRAME BOSSPLUG, FRAME BOSS
