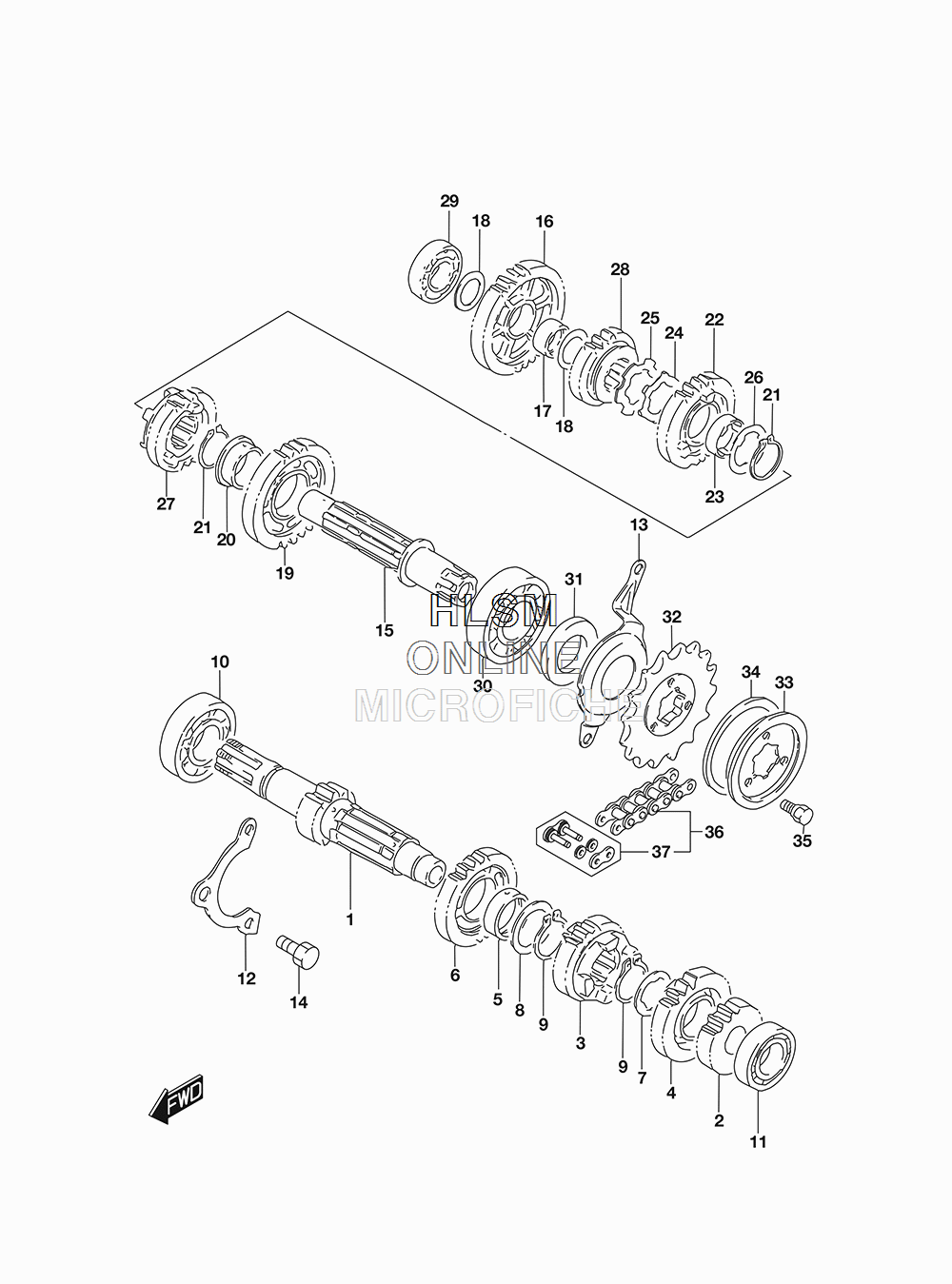

TRANSMISSION для Suzuki DR650SEL8 - 2018 года выпуска
-
№АртикулНазвание
-
124120-14810 COUNTERSHAFT (NT:12)COUNTERSHAFT (NT:12)
-
224221-14A10 GEAR, 2ND DRIVE (NT:16)GEAR, 2ND DRIVE (NT:16)
-
324231-12D21 GEAR, 3RD DRIVE (NT:21)GEAR, 3RD DRIVE (NT:21)
-
424241-14A10 GEAR, 4TH DRIVE (NT:21)GEAR, 4TH DRIVE (NT:21)
-
524252-19F00 BUSH, 5THBUSH, 5TH
-
624251-14A10 GEAR, 5TH DRIVE (NT:23)GEAR, 5TH DRIVE (NT:23)
-
709167-25012 LOCK WASHERLOCK WASHER
-
809181-25167 SHIM (25X34X1)SHIM (25X34X1)
-
909380-25003 SNAP RINGSNAP RING
-
1009262-22028 BEARING (22X56X16) (RH)BEARING (22X56X16) (RH)
-
1109262-17046 BEARING (17X40X12) (LH)BEARING (17X40X12) (LH)
-
1224741-14A00 HOLDER, BEARINGHOLDER, BEARING
-
1324751-32E00 RETAINER,DRIVE SHAFT OIL SEALRETAINER,DRIVE SHAFT OIL SEAL
-
1401500-0816A BOLTBOLT
-
1524130-14A10 DRIVE SHAFTDRIVE SHAFT
-
1624311-14A01 GEAR, 1ST DRIVEN (NT:29)GEAR, 1ST DRIVEN (NT:29)
-
1709300-20032 BUSH (20X24X13)BUSH (20X24X13)
-
1809181-20195 SHIM (20X30X1)SHIM (20X30X1)
-
1924321-14A10 GEAR, 2ND DRIVEN (NT:26)GEAR, 2ND DRIVEN (NT:26)
-
2009301-25002 BUSHBUSH
-
2109380-25003 SNAP RINGSNAP RING
-
2224331-14A20 GEAR, 3RD DRIVEN (NT:26)GEAR, 3RD DRIVEN (NT:26)
-
2324332-24510 BUSHBUSH
-
2409169-25001 WASHERWASHER
-
2509167-25013 LOCK WASHERLOCK WASHER
-
2609167-25016 LOCK WASHERLOCK WASHER
-
2724341-14A10 GEAR, 4TH DRIVEN (NT:21)GEAR, 4TH DRIVEN (NT:21)
-
2824351-14A10 GEAR, 5TH DRIVEN (NT:19)GEAR, 5TH DRIVEN (NT:19)
-
2909262-20059 BEARING (20X42X12) (RH)BEARING (20X42X12) (RH)
-
3009262-25125 BEARING (25X62X17) (LH)BEARING (25X62X17) (LH)
-
3109283-25108 OIL SEAL (25X44X7) (LH)OIL SEAL (25X44X7) (LH)
-
3227511-31D00 SPROCKET (NT:15)SPROCKET (NT:15)
-
3327512-44B00 PLATEPLATE
-
3427517-37400 DAMPERDAMPER
-
3509111-06039 BOLT (6X13)BOLT (6X13)
-
3627600-32C90-110 CHAIN, DRIVE (DID525V11X110LECHAIN, DRIVE (DID525V11X110LE
-
3727620-32C90 ...JOINT SET, CHAIN (DID525V11)...JOINT SET, CHAIN (DID525V11)
