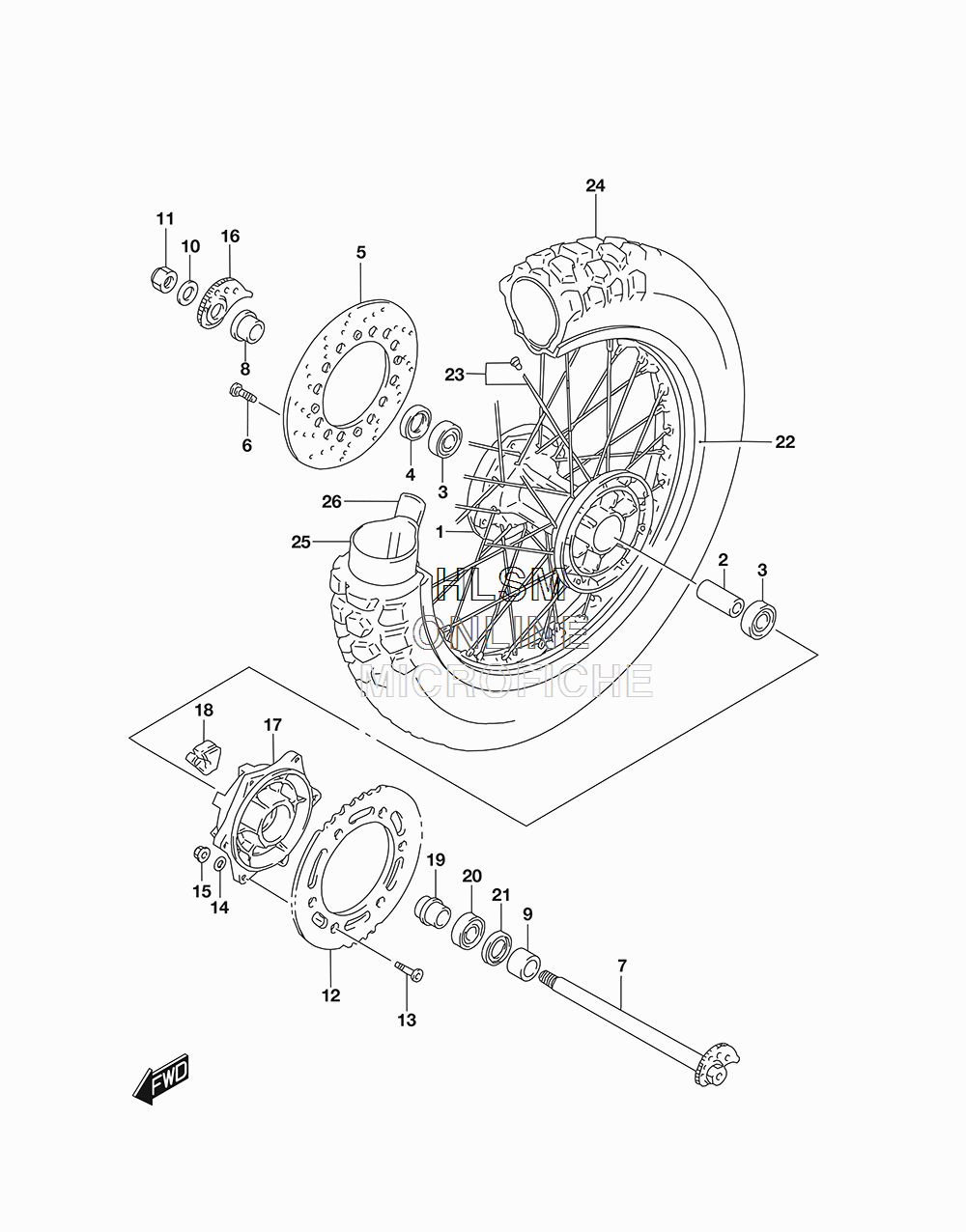

WHEEL - REAR для Suzuki DR650SEL8 - 2018 года выпуска
-
№АртикулНазвание
-
164111-15D10 HUB, REAR WHEELHUB, REAR WHEEL
-
264731-15D00 SPACER, HUB BEARINGSPACER, HUB BEARING
-
308123-62047 BEARINGBEARING
-
409283-26019 OIL SEAL (26X47X5) (RH)OIL SEAL (26X47X5) (RH)
-
569211-32E01 DISC, REAR BAKEDISC, REAR BAKE
-
609106-08155 BOLT (8X20)BOLT (8X20)
-
764710-32E00 AXLE, REARAXLE, REAR
-
864741-05D00 SPACER, REAR AXLE (RH)SPACER, REAR AXLE (RH)
-
964751-15D00 SPACER, REAR AXLE (LH)SPACER, REAR AXLE (LH)
-
1009160-19022 WASHER (19X32X3.2)WASHER (19X32X3.2)
-
1108319-2118A NUTNUT
-
1264511-32E00 SPROCKET, REAR (NT:42)SPROCKET, REAR (NT:42)
-
1309120-08010 BOLT (8X30.5)BOLT (8X30.5)
-
1408322-0108B WASHERWASHER
-
1508319-3108A NUTNUT
-
1661410-32E00 ADJUSTER, CHAIN (RH)ADJUSTER, CHAIN (RH)
-
1764611-15D01 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
1864651-32E00 ABSORBER, REAR HUB SHOCKABSORBER, REAR HUB SHOCK
-
1964733-15D00 RETAINER, SPROCKET DRUMRETAINER, SPROCKET DRUM
-
2009262-25061 BEARING (25X52X15)BEARING (25X52X15)
-
2109283-34003 OIL SEAL (34X52X6)OIL SEAL (34X52X6)
-
2265311-32E01 RIM, REAR WHEEL (17XMT2.50)RIM, REAR WHEEL (17XMT2.50)
-
2365320-32E00 SPOKE SET, REAR WHEELSPOKE SET, REAR WHEEL
-
2465110-32E00 TIRE, REAR (120/90-17 64S) (BRIDGESTONE)TIRE, REAR (120/90-17 64S) (BRIDGESTONE)
-
2565200-32E01 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
2665261-32E01 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
