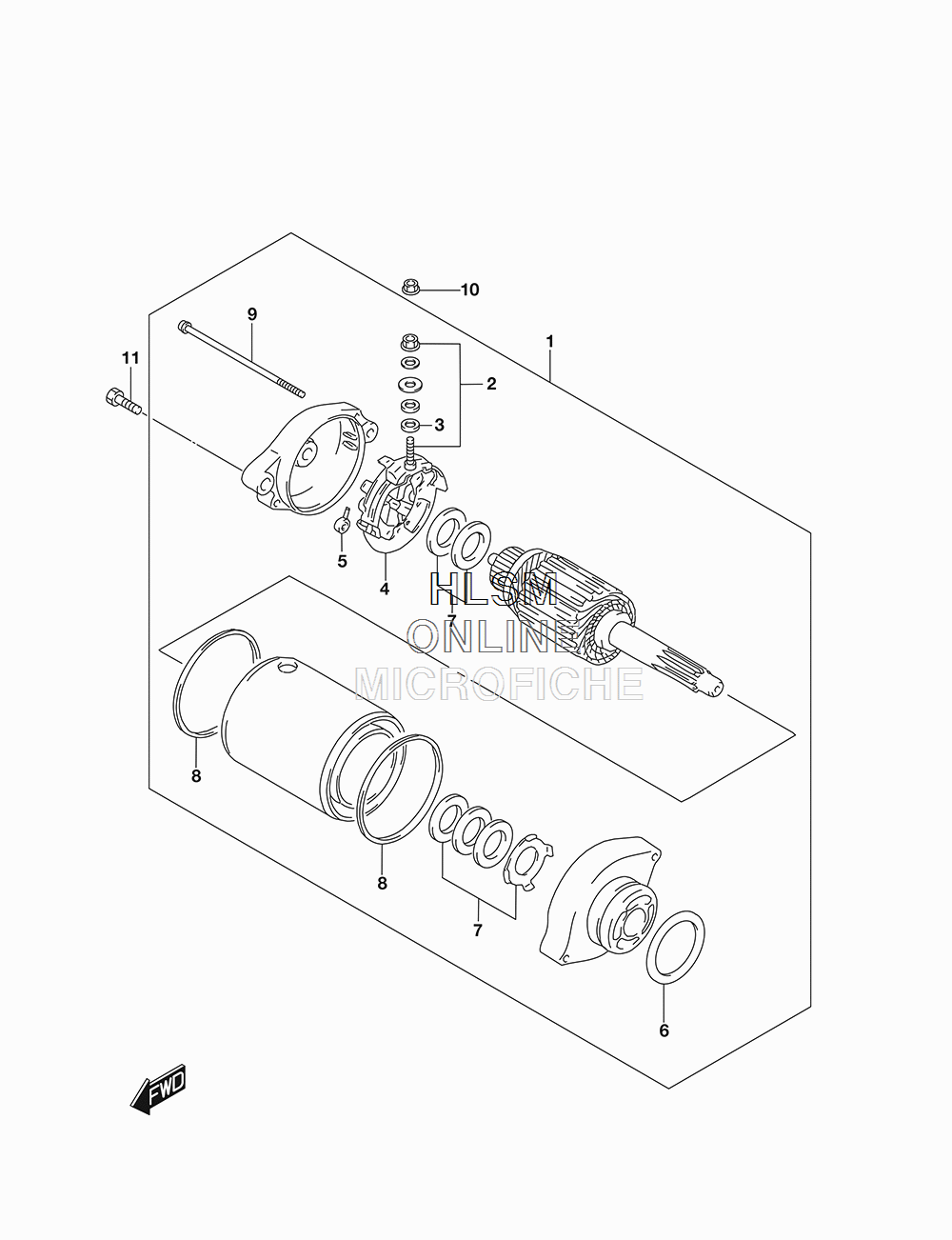

STARTING MOTOR для Suzuki DR650SEL8 - 2018 года выпуска
-
№АртикулНазвание
-
131100-32E01 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231130-38B00 ...TERMINAL SET, BRUSH...TERMINAL SET, BRUSH
-
331143-49040 ...O RING...O RING
-
431132-38B00 ...HOLDER SET, BRUSH...HOLDER SET, BRUSH
-
531135-38B00 ...SPRING, BRUSH...SPRING, BRUSH
-
631156-48B00 ...O RING...O RING
-
731170-32E00 ...WASHER SET...WASHER SET
-
831264-31300 ...O RING...O RING
-
931280-26D00 ...BOLT...BOLT
-
1008361-3506A NUTNUT
-
1101547-0630A BOLTBOLT
