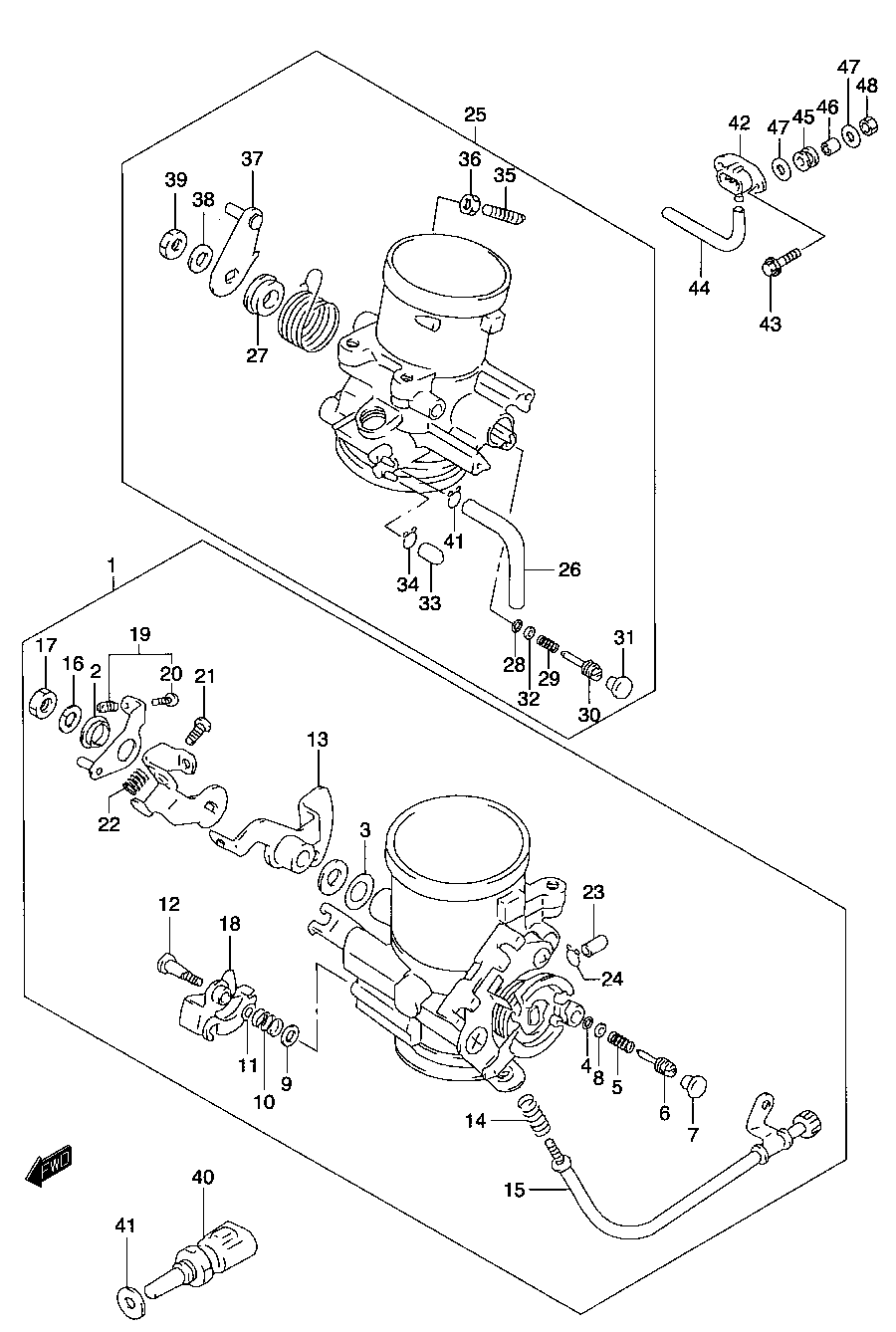

CARBURETOR - THROTTLE BODY ASSY. для Suzuki TL-1000S Y - 2000 года выпуска
-
№АртикулНазвание
-
1-313401-02F50 BODY ASSY., THROTTLE (FRONT) (EXCEPT CALIF.)BODY ASSY., THROTTLE (FRONT) (EXCEPT CALIF.)
-
1-413401-02F60 BODY ASSY., THROTTLE (FRONT) (CALIF. ONLY)BODY ASSY., THROTTLE (FRONT) (CALIF. ONLY)
-
295569-82140 ...RING...RING
-
3-113556-02F00 ...PACKING...PACKING
-
413295-29900 ...O-RING...O-RING
-
513494-09410 ...SPRING...SPRING
-
613269-16700 ...ADJUST SCREW...ADJUST SCREW
-
713357-36A00 ...PLUG...PLUG
-
813606-47A00 ...WASHER...WASHER
-
913606-38800 ...WASHER...WASHER
-
1013426-02F00 ...SPRING...SPRING
-
1113424-02F00 ...RING...RING
-
1213548-20E20 ...SCREW...SCREW
-
1313541-02F00 ...LEVER ASSY....LEVER ASSY.
-
1413271-93011 ...SPRING...SPRING
-
1513270-02F00 ...ADJUSTER ASSY....ADJUSTER ASSY.
-
1695559-82140 ...WASHER...WASHER
-
1713607-37010 ...NUT...NUT
-
1813421-02F00 ...LEVER ASSY....LEVER ASSY.
-
1913601-60AT0 ...SCREW SET, ADJUST...SCREW SET, ADJUST
-
2002112-04203 ......SCREW......SCREW
-
2113602-42E10 ...SCREW...SCREW
-
2213375-60A00 ...SPRING...SPRING
-
2313274-84000 ...CAP...CAP
-
2409401-06101 ...CLIP...CLIP
-
25-313402-02F50 BODY ASSY., THROTTLE (REAR) (EXCEPT CALIF.)BODY ASSY., THROTTLE (REAR) (EXCEPT CALIF.)
-
25-413402-02F60 BODY ASSY., THROTTLE (REAR) (CALIF. ONLY)BODY ASSY., THROTTLE (REAR) (CALIF. ONLY)
-
26-213683-10F60 ...HOSE...HOSE
-
27-113615-02F00 ...RING...RING
-
2813295-29900 ...O-RING...O-RING
-
2913494-09410 ...SPRING...SPRING
-
3013269-16700 ...ADJUST SCREW...ADJUST SCREW
-
3113357-36A00 ...PLUG...PLUG
-
3213606-47A00 ...WASHER...WASHER
-
3313274-84000 ...CAP...CAP
-
3409401-06101 ...CLIP...CLIP
-
35-113267-02F00 ...SCREW...SCREW
-
3613607-47070 ...NUT...NUT
-
3713542-02F00 ...LEVER ASSY....LEVER ASSY.
-
3895559-82140 ...WASHER...WASHER
-
3913607-37010 ...NUT...NUT
-
4013650-51G10 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
4109168-12017 GASKET (12X17X1.0)GASKET (12X17X1.0)
-
4218590-80C50 SENSOR, AIR PRESSURESENSOR, AIR PRESSURE
-
4301550-06253 BOLTBOLT
-
4409355-40805-600 HOSE (L:600?150)HOSE (L:600?150)
-
4509320-10501 CUSHIONCUSHION
-
4609180-06310 SPACERSPACER
-
4709160-06077 WASHERWASHER
-
4808316-10063 NUTNUT
