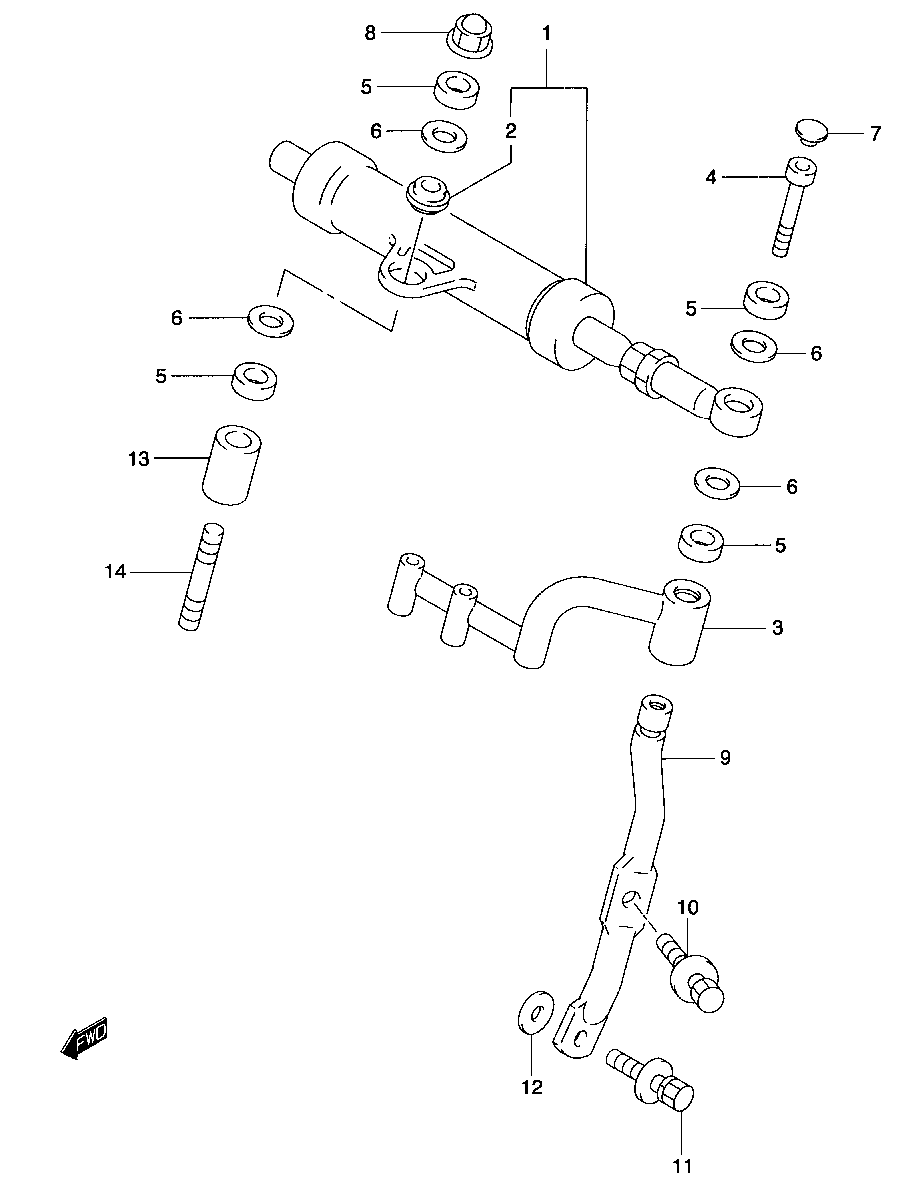

STEERING DAMPER для Suzuki TL-1000S Y - 2000 года выпуска
-
№АртикулНазвание
-
1-151750-02F00 DAMPER ASSY., STEERING (UNITED STATES)DAMPER ASSY., STEERING (UNITED STATES)
-
1-251750-02F10 DAMPER ASSY., STEERING (CANADA)DAMPER ASSY., STEERING (CANADA)
-
209269-08003 ...BEARING (8X17.5X11)...BEARING (8X17.5X11)
-
351710-02F10 STAY, STEERING DAMPERSTAY, STEERING DAMPER
-
407130-08507 BOLT (8X50)BOLT (8X50)
-
564339-40410 SEAL, DAMPER DUSTSEAL, DAMPER DUST
-
609181-08106 WASHER (8X12X0.8)WASHER (8X12X0.8)
-
709250-06011 CAPCAP
-
808313-20087 NUTNUT
-
951720-02F10 ROD, STEERING DAMPERROD, STEERING DAMPER
-
1009116-06171 BOLT (6X30)BOLT (6X30)
-
1151735-02F00 BOLT (LOWER/LEFT) (6X35)BOLT (LOWER/LEFT) (6X35)
-
1209160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
1351722-02F10 SPACER, DAMPER (8.1X17X25.5)SPACER, DAMPER (8.1X17X25.5)
-
1409108-08167 BOLT (8X50)BOLT (8X50)
