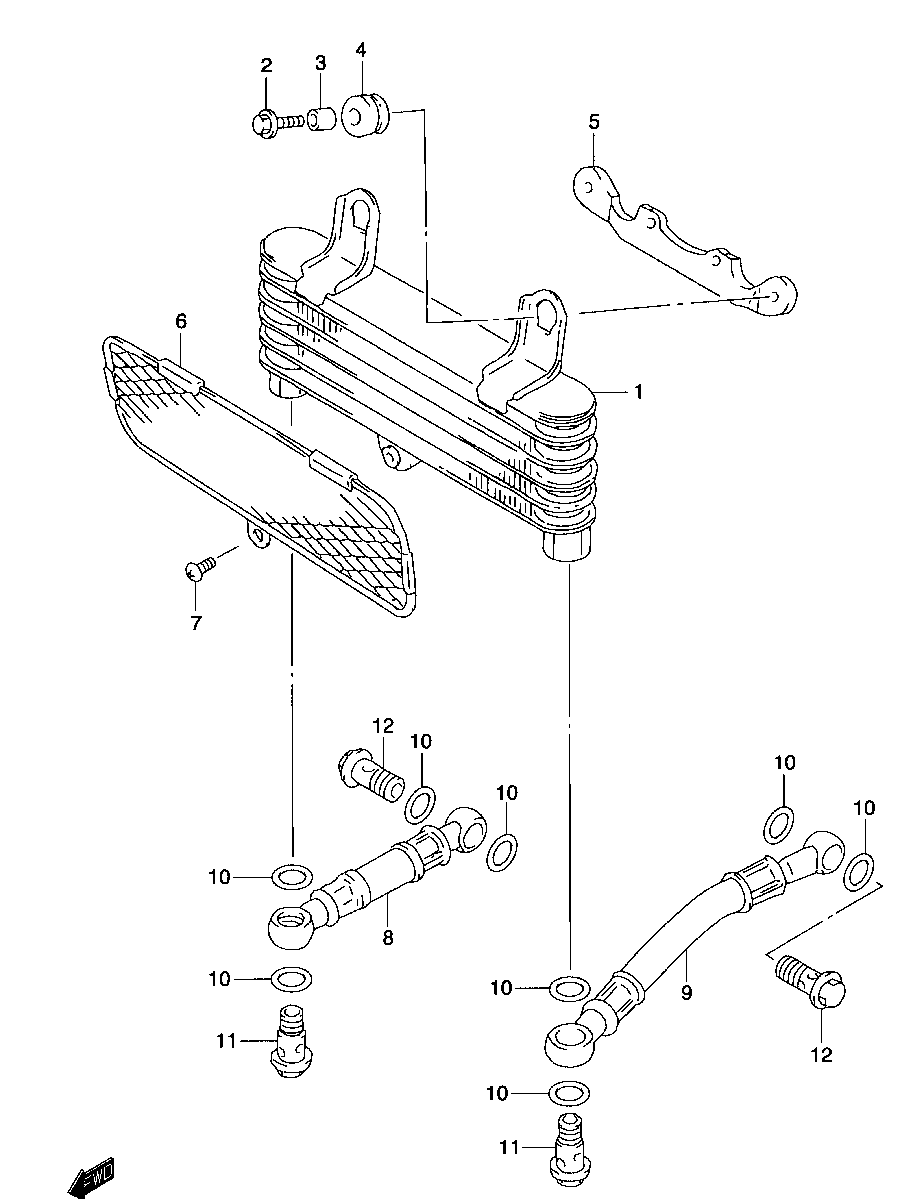

OIL COOLER для Suzuki TL-1000S Y - 2000 года выпуска
-
№АртикулНазвание
-
116600-02F00 COOLER ASSY., OILCOOLER ASSY., OIL
-
2-209116-06115 BOLTBOLT
-
309180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
409320-10015 CUSHIONCUSHION
-
516620-02F00 BRACKET, OIL COOLERBRACKET, OIL COOLER
-
616650-02F00 GUARD, OIL COOLERGUARD, OIL COOLER
-
702142-05103 BOLTBOLT
-
816460-02F00 HOSE, OIL COOLER (RIGHT)HOSE, OIL COOLER (RIGHT)
-
916470-02F00 HOSE, OIL COOLER (LEFT)HOSE, OIL COOLER (LEFT)
-
1009168-14011 GASKETGASKET
-
1109360-12006 BOLT, UNIONBOLT, UNION
-
1209360-14012 BOLTBOLT
