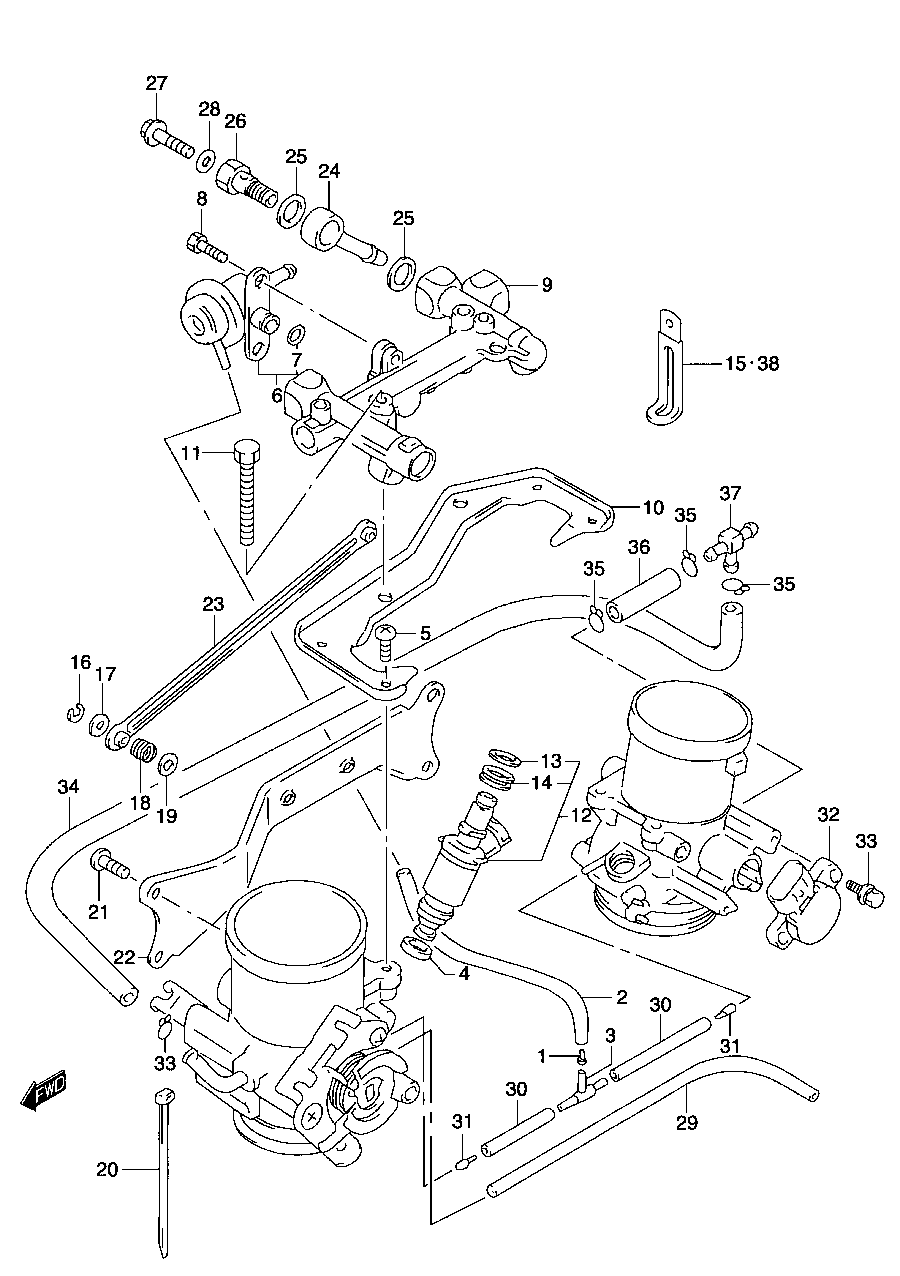

CARBURETOR - THROTTLE BODY FITTINGS для Suzuki TL-1000S Y - 2000 года выпуска
-
№АртикулНазвание
-
109493-50006 JETJET
-
2-213683-10F60 HOSE4HOSE4
-
309367-04007 NIPPLENIPPLE
-
409320-08062 CUSHIONCUSHION
-
513602-06148 SCREWSCREW
-
6-215610-02F10 REGULATOR, FUEL PRESSUREREGULATOR, FUEL PRESSURE
-
715710-09300 ...O-RING...O-RING
-
813612-02F00 BOLTBOLT
-
915731-02F00 PIPE ASSY., DELIVERYPIPE ASSY., DELIVERY
-
1013625-02F00 PLATEPLATE
-
1113612-02F10 BOLTBOLT
-
12-215710-02FA0 INJECTOR ASSY.INJECTOR ASSY.
-
13-215717-02F00 ...O-RING...O-RING
-
1415720-09300 ...GROMMET...GROMMET
-
1509404-06432 PLATEPLATE
-
1613617-44500 E-RINGE-RING
-
1713615-02F10 RINGRING
-
18-113543-02F00 SPRINGSPRING
-
1913615-02F20 RINGRING
-
2013671-02F00 CLIPCLIP
-
2113602-02F00 SCREWSCREW
-
2213626-02F00 PLATEPLATE
-
2313540-02F00 LEVER ASSY.LEVER ASSY.
-
2415815-02F00 CONNECTORCONNECTOR
-
2513925-85553 GASKETGASKET
-
2613923-85551 BOLTBOLT
-
2717568-50F00 PLUGPLUG
-
2809168-06023 GASKETGASKET
-
29-213683-10F60 HOSEHOSE
-
30-113682-02F00 HOSEHOSE
-
3109493-20015 JETJET
-
3213580-02F00 SENSOR ASSY., THROTTLESENSOR ASSY., THROTTLE
-
3313605-02F00 BOLTBOLT
-
3413684-02F10 HOSE (CALIF. ONLY)HOSE (CALIF. ONLY)
-
3509401-10410 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
36-213684-02F10 HOSE (CALIF. ONLY)HOSE (CALIF. ONLY)
-
3713685-48B00 NIPPLE (CALIF. ONLY)NIPPLE (CALIF. ONLY)
-
3809404-06432 PLATE (CALIF. ONLY)PLATE (CALIF. ONLY)
