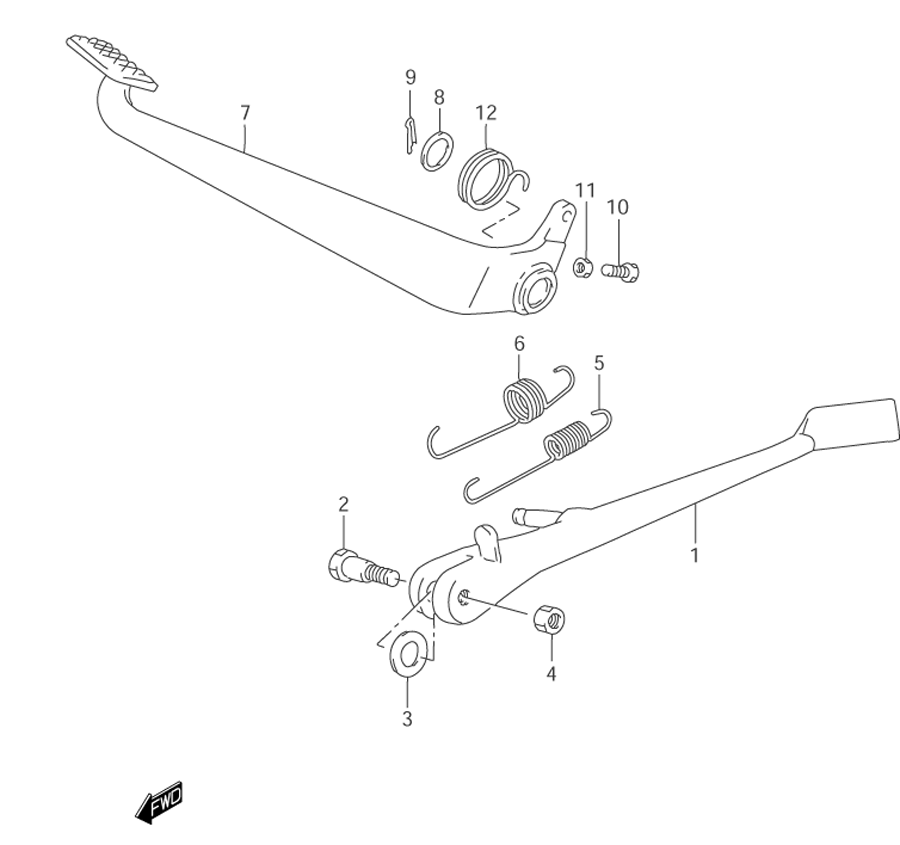

BRAKE PEDAL W/ STAND для Suzuki VZ800 K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-342310-48E20 STAND, PROPSTAND, PROP
-
209111-10027 BOLTBOLT
-
4-208319-21103 NUTNUT
-
509443-14066 SPRINGSPRING
-
609443-19012 SPRINGSPRING
-
7-243110-48E10 PEDAL, BRAKEPEDAL, BRAKE
-
8-209160-16043 WASHER (16.5X22X1)WASHER (16.5X22X1)
-
904111-30308 COTTER PINCOTTER PIN
-
1001500-06207 BOLTBOLT
-
1108310-00067 NUTNUT
-
1209448-31034 SPRINGSPRING
