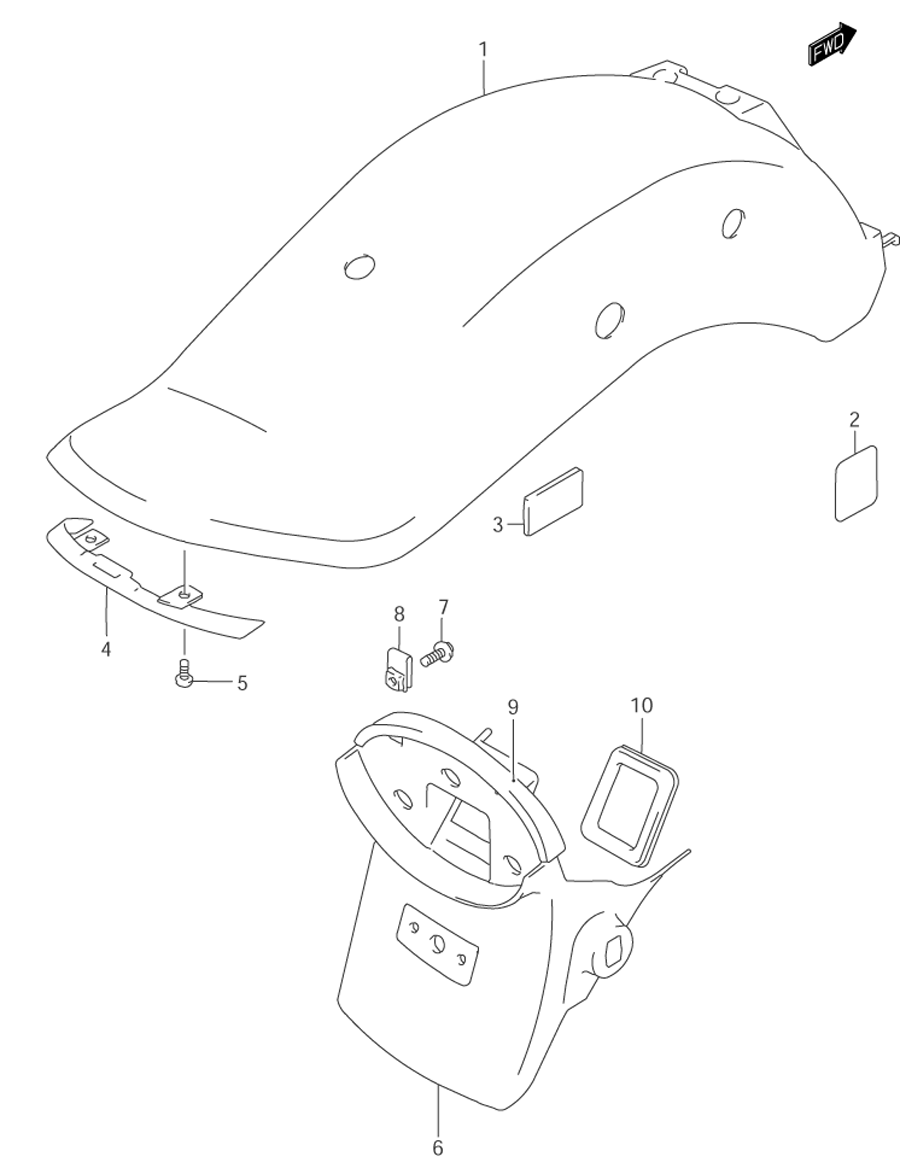

FENDER - REAR для Suzuki VZ800 K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-163110-48E50-33J FENDER (REAR) (33J - BLACK) (CANADA)FENDER (REAR) (33J - BLACK) (CANADA)
-
1-263110-48E50-YC2 FENDER (REAR) (YC2 - BLUE)FENDER (REAR) (YC2 - BLUE)
-
1-363110-48E50-YE2 FENDER (REAR) (YE2 - MAROON)FENDER (REAR) (YE2 - MAROON)
-
261544-94500 ...PAD, FENDER (REAR)...PAD, FENDER (REAR)
-
309320-13015 CUSHIONCUSHION
-
463112-48E00 COVER, FENDER (REAR)COVER, FENDER (REAR)
-
503541-05123 SCREWSCREW
-
663311-48E00 EXTENSION, FENDER (REAR)EXTENSION, FENDER (REAR)
-
702162-06163 SCREWSCREW
-
847153-19C01 NUT, FENDER EXTENTION (REAR)NUT, FENDER EXTENTION (REAR)
-
963312-48E00 CUSHION, FENDER EXTENSION (REAR)CUSHION, FENDER EXTENSION (REAR)
-
1063191-48E00 CAP, FENDER EXTENSION (REAR)CAP, FENDER EXTENSION (REAR)
