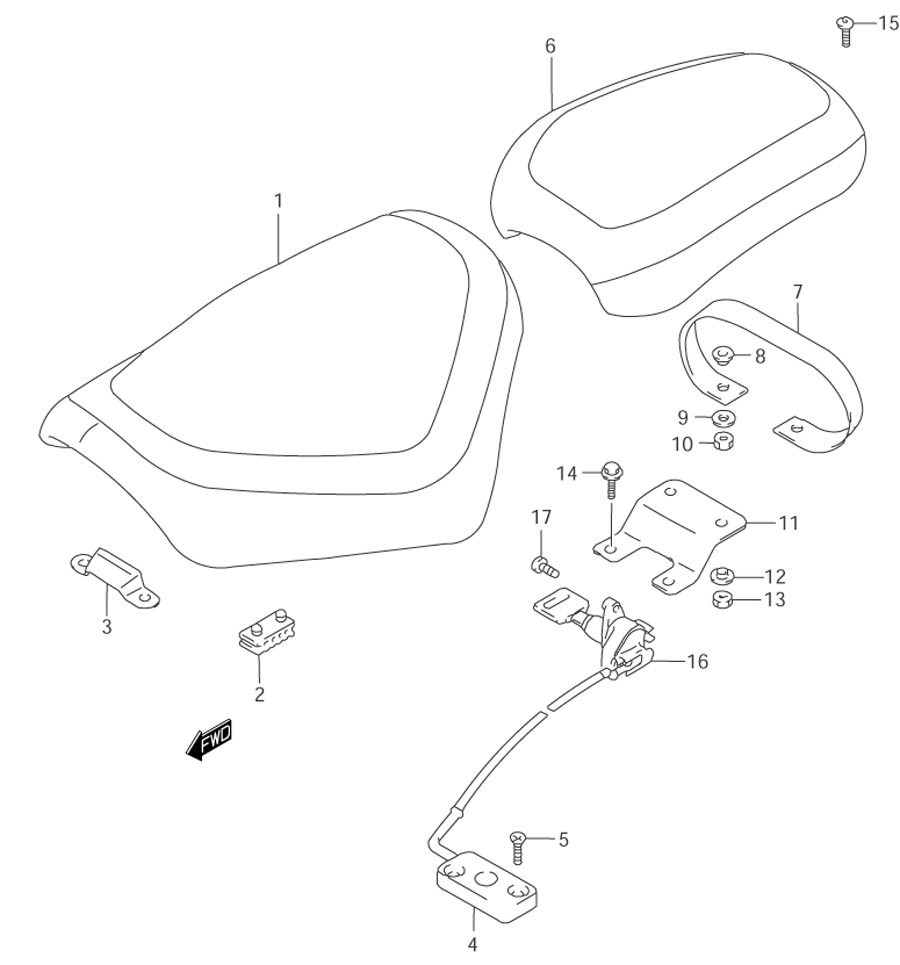

SEAT для Suzuki VZ800 K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-245100-48E50-M9Z SEAT ASSY. (M9Z - BLACK)SEAT ASSY. (M9Z - BLACK)
-
245149-31300 ...CUSHION...CUSHION
-
345119-48E00 PLATE, SEAT HOOK (FRONT)PLATE, SEAT HOOK (FRONT)
-
445220-48E01 BRACKET, SEAT SUPPORT (FRONT)BRACKET, SEAT SUPPORT (FRONT)
-
502122-06253 SCREW (6X25)SCREW (6X25)
-
6-245300-48E50-M9Z SEAT ASSY., PILLION (M9Z - BLACK)SEAT ASSY., PILLION (M9Z - BLACK)
-
7-245180-48E50-P21 ...BAND, SEAT (P21 - BLACK)...BAND, SEAT (P21 - BLACK)
-
809169-06071 ...WASHER...WASHER
-
909160-06084 ...WASHER...WASHER
-
1008316-20063 ...NUT...NUT
-
1145116-48E00 ...PLATE, PILLION SEAT...PLATE, PILLION SEAT
-
1209169-06071 ...WASHER...WASHER
-
1308316-20063 ...NUT...NUT
-
1401550-06123 BOLT, FRONT (6X12)BOLT, FRONT (6X12)
-
1509106-08140 BOLT, REAR (8X16)BOLT, REAR (8X16)
-
1695700-12852 LOCK SET, SEATLOCK SET, SEAT
-
1709139-06092 SCREW (6X14)SCREW (6X14)
