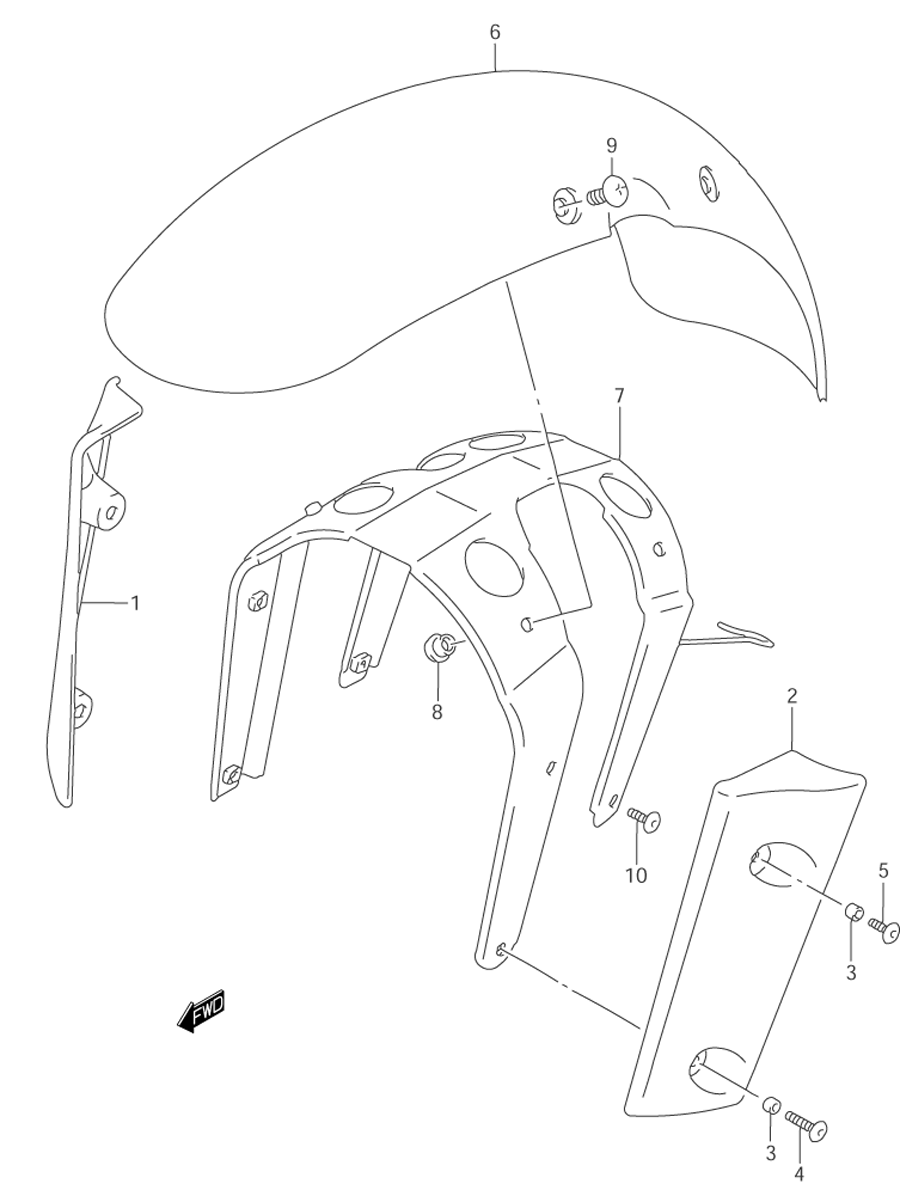

FENDER - FRONT для Suzuki VZ800 K1 - 2001 года выпуска
-
№АртикулНазвание
-
151881-48E00 COVER, FORK SIDE (FRONT/RIGHT)COVER, FORK SIDE (FRONT/RIGHT)
-
251882-48E00 COVER, FORK SIDE (FRONT/LEFT)COVER, FORK SIDE (FRONT/LEFT)
-
309180-06245 SPACER (6.1X8X3.5)SPACER (6.1X8X3.5)
-
409139-06028 SCREW (LOWER) (6X20)SCREW (LOWER) (6X20)
-
509139-06027 SCREW (UPPER) (6X12)SCREW (UPPER) (6X12)
-
6-153111-48E00-33J FENDER (FRONT) (33J - BLACK) (CANADA)FENDER (FRONT) (33J - BLACK) (CANADA)
-
6-253111-48E00-YC2 FENDER (FRONT (YC2 - BLUE)FENDER (FRONT (YC2 - BLUE)
-
6-353111-48E00-YE2 FENDER (FRONT) (YE2 - MAROON) (US)FENDER (FRONT) (YE2 - MAROON) (US)
-
753120-48E00 BRACE, FENDER (FRONT)BRACE, FENDER (FRONT)
-
853122-33D00 ...NUT...NUT
-
909139-06027 SCREW (6X12)SCREW (6X12)
-
1009139-06030 SCREW (6X16)SCREW (6X16)
