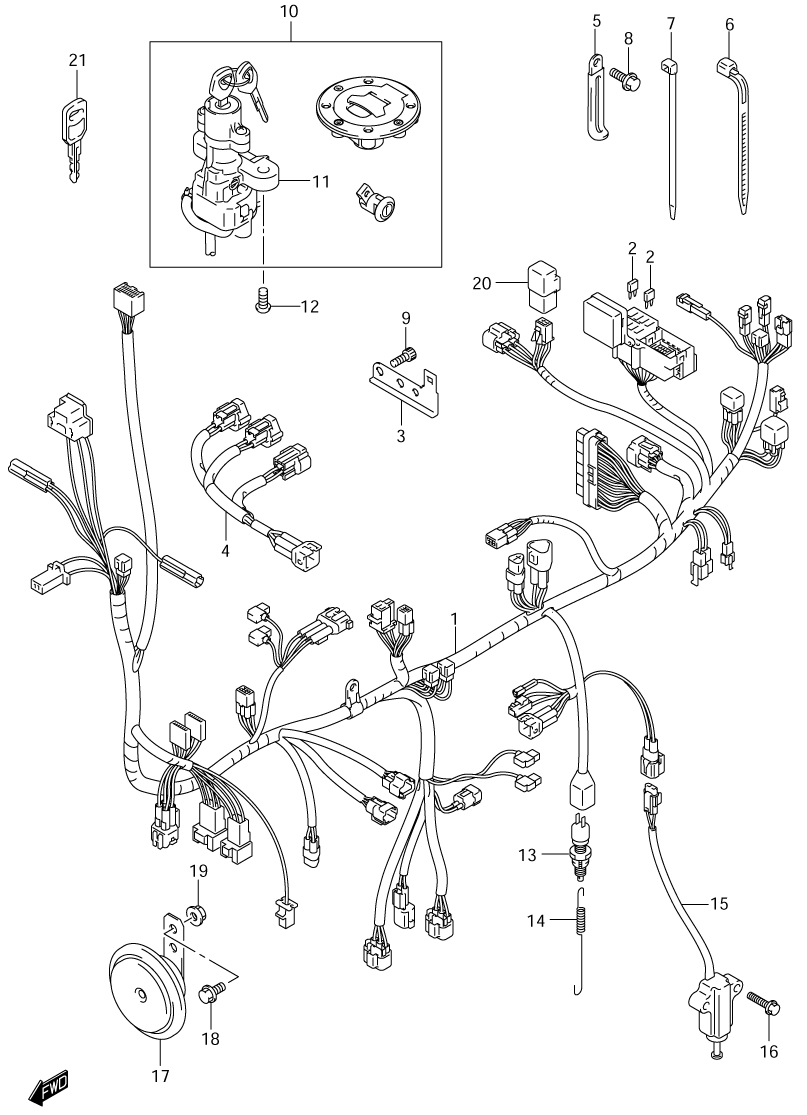

ELECTRICAL - WIRING HARNESS для Suzuki SV1000 K3 - 2003 года выпуска
-
№АртикулНазвание
-
136610-16G80 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
2-109481-10501 ...FUSE (10A)...FUSE (10A)
-
2-209481-15501 ...FUSE (15A)...FUSE (15A)
-
336687-16G00 HOLDER, COUPLERHOLDER, COUPLER
-
436859-16G00 WIRE, INJECTOR LEADWIRE, INJECTOR LEAD
-
5-109404-06429 CLAMP (L:45)CLAMP (L:45)
-
5-209404-08207 CLAMP (L:80)CLAMP (L:80)
-
6-109407-11401 CLAMP (L:95)CLAMP (L:95)
-
6-209407-14403 CLAMP (L:125)CLAMP (L:125)
-
6-309407-18402 CLAMP (L:165)CLAMP (L:165)
-
709407-14407 CLAMP (L:145)CLAMP (L:145)
-
801550-06103 BOLTBOLT
-
907130-06103 BOLTBOLT
-
10-137000-16820 LOCK SETLOCK SET
-
10-237000-16830 LOCK SET (CALIF. ONLY)LOCK SET (CALIF. ONLY)
-
1137100-16G20 ...LOCK ASSY., STEERING...LOCK ASSY., STEERING
-
1209139-08016 SCREW (8X20)SCREW (8X20)
-
13-137740-24A00 SWITCH ASSY., STOP LAMPSWITCH ASSY., STOP LAMP
-
14-109443-06005 SPRING, STOP LAMPSPRING, STOP LAMP
-
1537840-16G00 SWITCH ASSY., SIDE STANDSWITCH ASSY., SIDE STAND
-
1601550-06257 BOLTBOLT
-
1738500-16G00 HORN ASSY.HORN ASSY.
-
1801550-08123 BOLTBOLT
-
1908316-10083 NUTNUT
-
2038740-24X50 RELAY ASSY., FUEL PUMPRELAY ASSY., FUEL PUMP
-
2137146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
