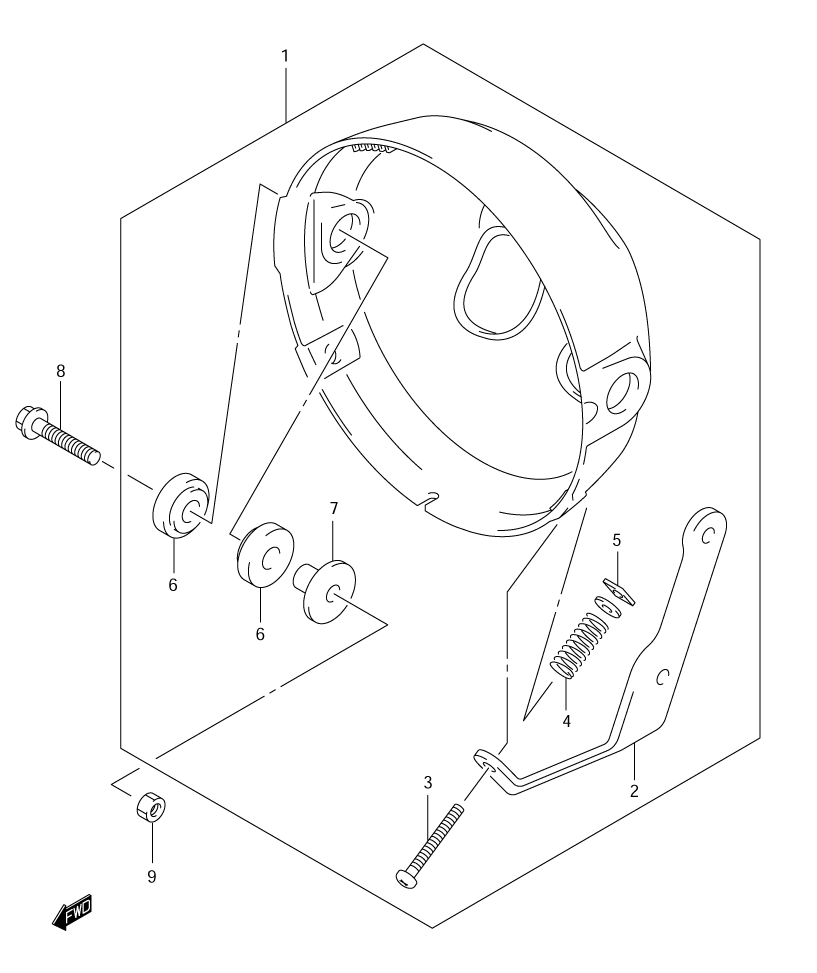

HEADLAMP HOUSING для Suzuki SV1000 K3 - 2003 года выпуска
-
№АртикулНазвание
-
151800-16GA0 HOUSING ASSY., HEADLAMPHOUSING ASSY., HEADLAMP
-
251814-16GA0 ...PLATE...PLATE
-
309125-05128 ...SCREW, ADJUSTER...SCREW, ADJUSTER
-
451837-25D00 ...SPRING, ADJUSTER...SPRING, ADJUSTER
-
551825-25D00 ...NUT, ADJUSTER...NUT, ADJUSTER
-
609320-12065 ...CUSHION...CUSHION
-
709180-08217 ...SPACER...SPACER
-
809103-08391 BOLTBOLT
-
908310-00083 NUTNUT
