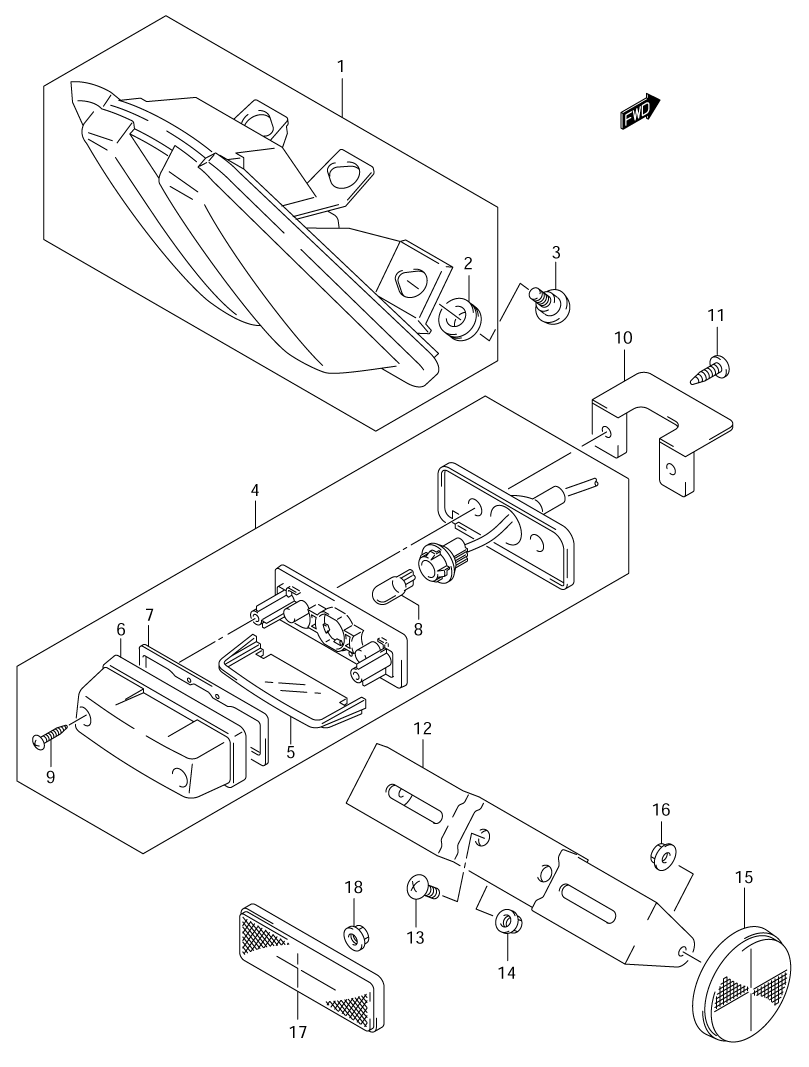

TAIL LAMP для Suzuki SV1000 K3 - 2003 года выпуска
-
№АртикулНазвание
-
135710-16G30 LAMP ASSY., REAR COMBLAMP ASSY., REAR COMB
-
209320-10049 ...CUSHION...CUSHION
-
309139-06118 SCREW, REAR COMBSCREW, REAR COMB
-
435910-16G10 LAMP ASSY., LICENSELAMP ASSY., LICENSE
-
535912-16G00 ...LENS...LENS
-
635917-16G00 ...COVER...COVER
-
735913-16G00 ...GASKET...GASKET
-
809471-12216 ...BULB (12V,5W)...BULB (12V,5W)
-
903211-04163 ...SCREW...SCREW
-
1035926-16G00 BRACKET, LICENSEBRACKET, LICENSE
-
1103541-05203 SCREW, LICENSESCREW, LICENSE
-
1235927-16G30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1302142-06163 SCREWSCREW
-
1408316-10063 NUTNUT
-
1535970-14A20 REFLECTOR ASSY., REAR SIDEREFLECTOR ASSY., REAR SIDE
-
1608316-10053 NUTNUT
-
1735970-07F00 REFLECTOR ASSY., REARREFLECTOR ASSY., REAR
-
1808316-10053 NUTNUT
