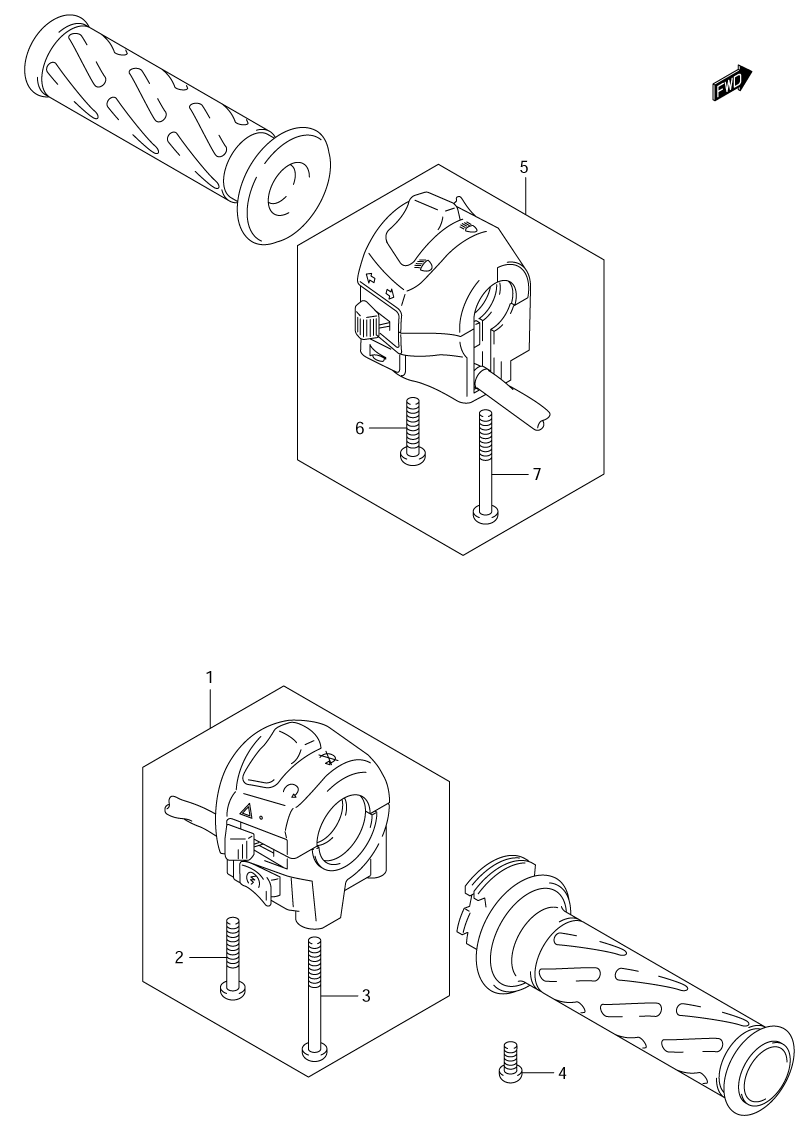

HANDLEBAR - LEVERS / SWITCHES для Suzuki SV1000 K3 - 2003 года выпуска
-
№АртикулНазвание
-
1-137200-17G50 SWITCH ASSY., HANDLE (RIGHT)SWITCH ASSY., HANDLE (RIGHT)
-
202112-05305 ...SCREW...SCREW
-
302112-05505 ...SCREW...SCREW
-
402112-05103 SCREW, THROTTLESCREW, THROTTLE
-
537400-17G60 SWITCH ASSY., HANDLE (LEFT)SWITCH ASSY., HANDLE (LEFT)
-
602112-05253 ...SCREW...SCREW
-
702112-05453 ...SCREW...SCREW
