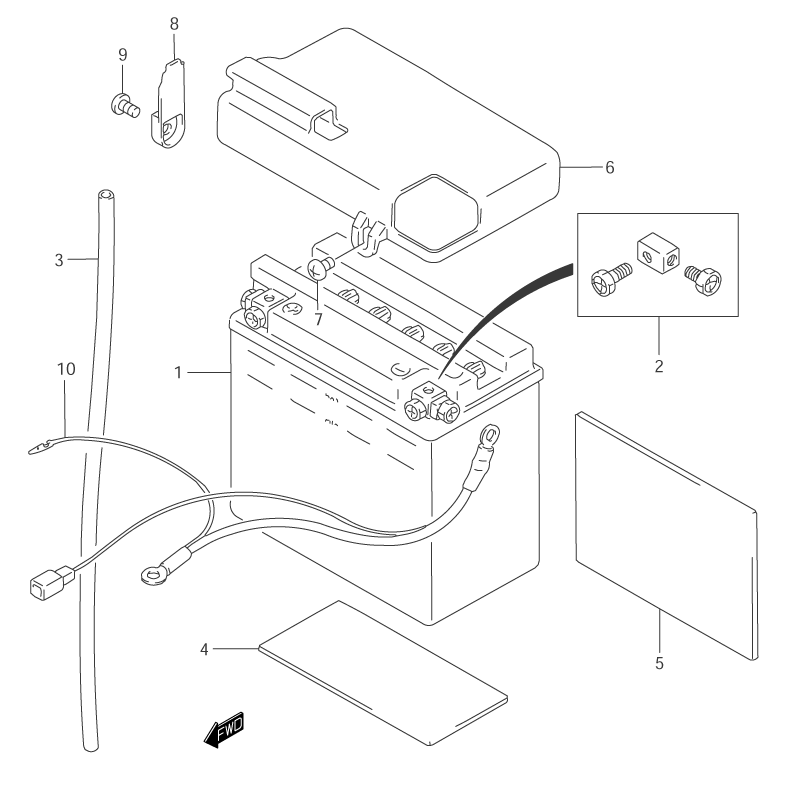

BATTERY для Suzuki VS800GL K4 - 2004 года выпуска
-
№АртикулНазвание
-
133610-38A01 BATTERY (12V,16AH)BATTERY (12V,16AH)
-
233626-38A01 ...BOLT SET, TERMINAL...BOLT SET, TERMINAL
-
333680-16A10 HOSE, BATTERY EXHAUSTHOSE, BATTERY EXHAUST
-
433651-37000 PROTECTOR (170X95X3.0) (60X130) CUT AS REQUIRED PROFILEPROTECTOR (170X95X3.0) (60X130) CUT AS REQUIRED PROFILE
-
533652-07D00 PROTECTOR (80X80X2) (20X90) CUT AS REQUIRED PROFILEPROTECTOR (80X80X2) (20X90) CUT AS REQUIRED PROFILE
-
633658-38A30 COVER, BATTERY UPPERCOVER, BATTERY UPPER
-
702142-05083 SCREWSCREW
-
833658-38A40 COVER, BATTERY TERMINALCOVER, BATTERY TERMINAL
-
902142-05083 SCREWSCREW
-
1033860-38A00 LEAD WIRE, BATTERY (-)LEAD WIRE, BATTERY (-)
