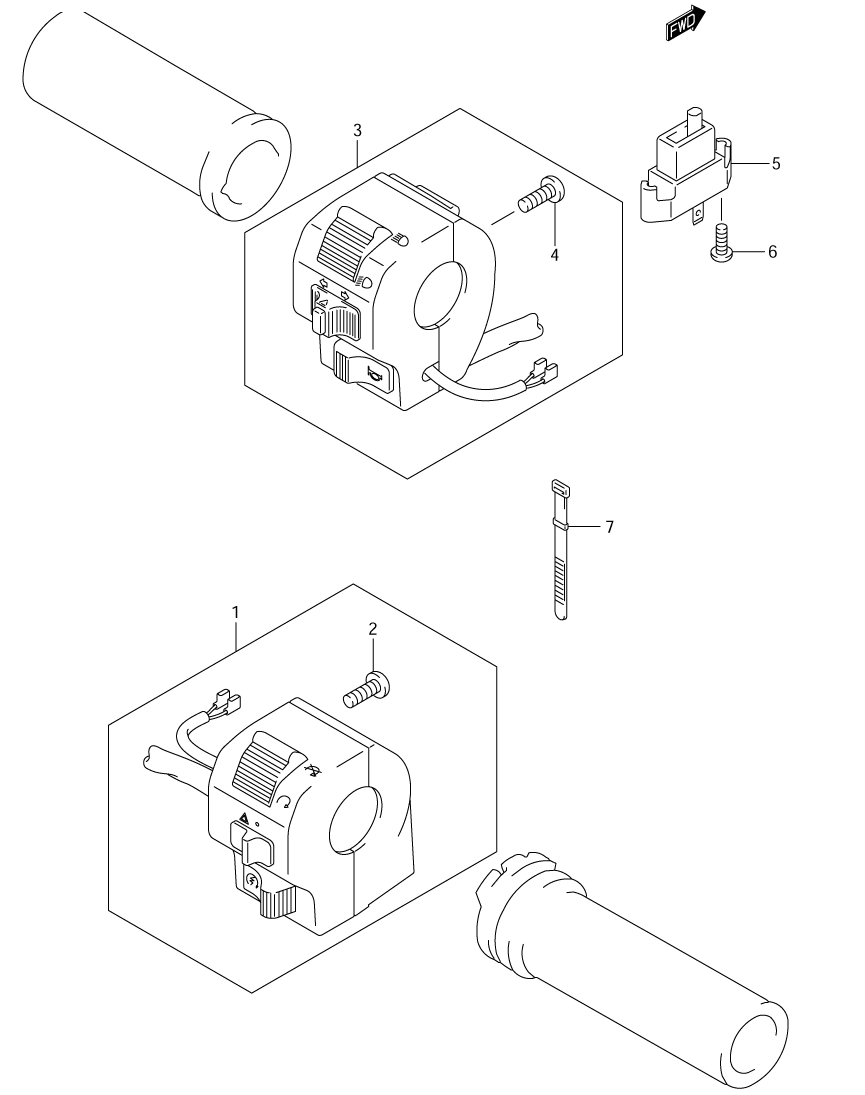

HANDLEBAR - SWITCHES для Suzuki VS800GL K4 - 2004 года выпуска
-
№АртикулНазвание
-
137200-38AF0 SWITCH ASSY., HANDLE (RIGHT)SWITCH ASSY., HANDLE (RIGHT)
-
202112-05167 ...SCREW...SCREW
-
337400-38AF0 SWITCH ASSY., HANDLE (LEFT)SWITCH ASSY., HANDLE (LEFT)
-
402112-05167 ...SCREW...SCREW
-
537560-38A00 SWITCH ASSY., CLUTCHSWITCH ASSY., CLUTCH
-
602142-03127 SCREWSCREW
-
709407-14401 CLAMP, HANDLE SWITCHCLAMP, HANDLE SWITCH
