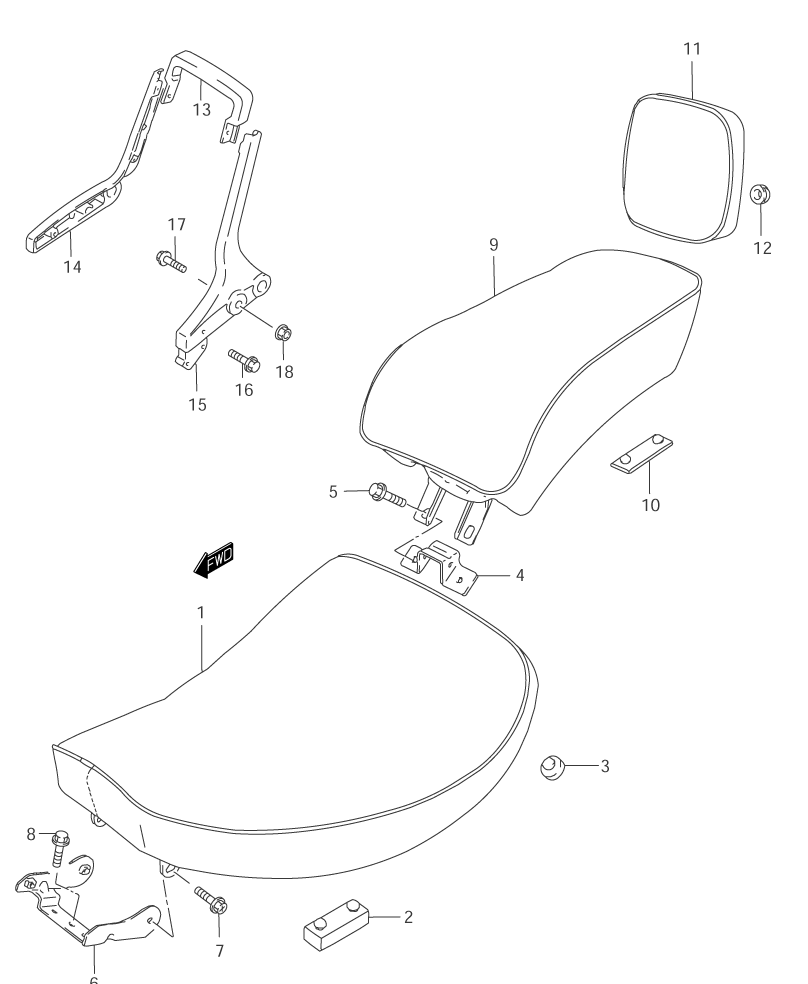

SEAT для Suzuki VS800GL K4 - 2004 года выпуска
-
№АртикулНазвание
-
145100-38A60-E7T SEAT SETSEAT SET
-
245149-43500 ...CUSHION...CUSHION
-
309321-10012 ...CUSHION...CUSHION
-
445119-38A00 PLATE, SEAT HOOK REARPLATE, SEAT HOOK REAR
-
509113-06001 BOLT (6X16)BOLT (6X16)
-
645210-38A03 BRACKET, SEAT FRONTBRACKET, SEAT FRONT
-
709113-06001 BOLT (6X16)BOLT (6X16)
-
801550-06163 BOLT (6X16)BOLT (6X16)
-
945300-38A60-E7T SEAT SET, PILLIONSEAT SET, PILLION
-
1045149-14500 ...CUSHION...CUSHION
-
1145350-38A60-E7T PAD ASSY., SEATPAD ASSY., SEAT
