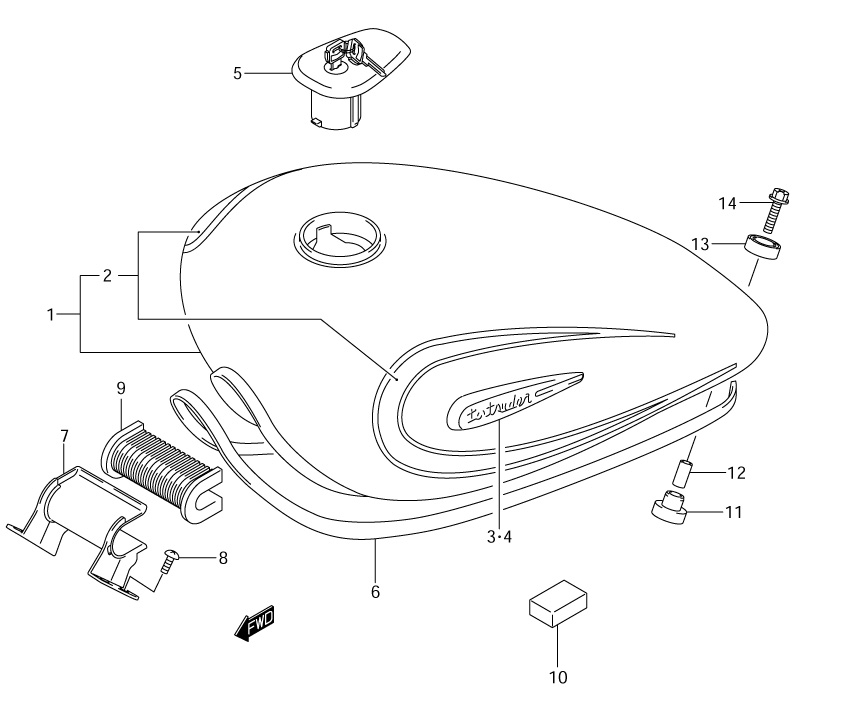

FUEL TANK для Suzuki VS800GL K4 - 2004 года выпуска
-
№АртикулНазвание
-
1-144100-38EK0-YAY TANK ASSY., FUEL (YAY - BLACK) (EXCEPT CALIF.)TANK ASSY., FUEL (YAY - BLACK) (EXCEPT CALIF.)
-
1-244100-38EK0-YD8 TANK ASSY., FUEL (YD8 - SILVER) (EXCEPT CALIF.)TANK ASSY., FUEL (YD8 - SILVER) (EXCEPT CALIF.)
-
1-344100-38EL0-YAY TANK ASSY., FUEL (YAY - BLACK) (CALIF. ONLY)TANK ASSY., FUEL (YAY - BLACK) (CALIF. ONLY)
-
1-444100-38EL0-YD8 TANK ASSY., FUEL (YD8 - SILVER) (CALIF. ONLY)TANK ASSY., FUEL (YD8 - SILVER) (CALIF. ONLY)
-
2-168110-38E70-ABB ...TAPE SET, FUEL TANK (ABB - MAROON/GRAY/SILVER/BLACK) (FOR YAY - BLACK)...TAPE SET, FUEL TANK (ABB - MAROON/GRAY/SILVER/BLACK) (FOR YAY - BLACK)
-
2-268110-38E70-ABA ...TAPE SET, FUEL TANK (ABA - GRAY/GRAY/SILVER/BLACK) (FOR YD8 - SILVER)...TAPE SET, FUEL TANK (ABA - GRAY/GRAY/SILVER/BLACK) (FOR YD8 - SILVER)
-
368111-38E00 EMBLEM, (RIGHT)EMBLEM, (RIGHT)
-
468121-38E00 EMBLEM, (LEFT)EMBLEM, (LEFT)
-
5-144200-38820 CAP SET, FUEL TANK (EXCEPT CALIF.)CAP SET, FUEL TANK (EXCEPT CALIF.)
-
5-244200-38850 CAP SET, FUEL TANK (CALIF. ONLY)CAP SET, FUEL TANK (CALIF. ONLY)
-
5-344200-38860 CAP SET, FUEL TANK (OPT) (CALIF. ONLY)CAP SET, FUEL TANK (OPT) (CALIF. ONLY)
-
5-444200-38870 CAP SET, FUEL TANK (OPT) (CALIF. ONLY)CAP SET, FUEL TANK (OPT) (CALIF. ONLY)
-
668241-04X50-00B MOLDING, FUEL TANKMOLDING, FUEL TANK
-
744250-38A01-019 BRACKET, FRONT (BLACK)BRACKET, FRONT (BLACK)
-
802112-76163 SCREW, BRACKETSCREW, BRACKET
-
944511-38A01 CUSHION, FRONTCUSHION, FRONT
-
1044512-38B00 CUSHION, SIDECUSHION, SIDE
-
1109320-10020 CUSHION, REAR LOWERCUSHION, REAR LOWER
-
1209180-06273 SPACERSPACER
-
1309320-14013 CUSHION, REAR UPPERCUSHION, REAR UPPER
-
1409136-06095 BOLTBOLT
