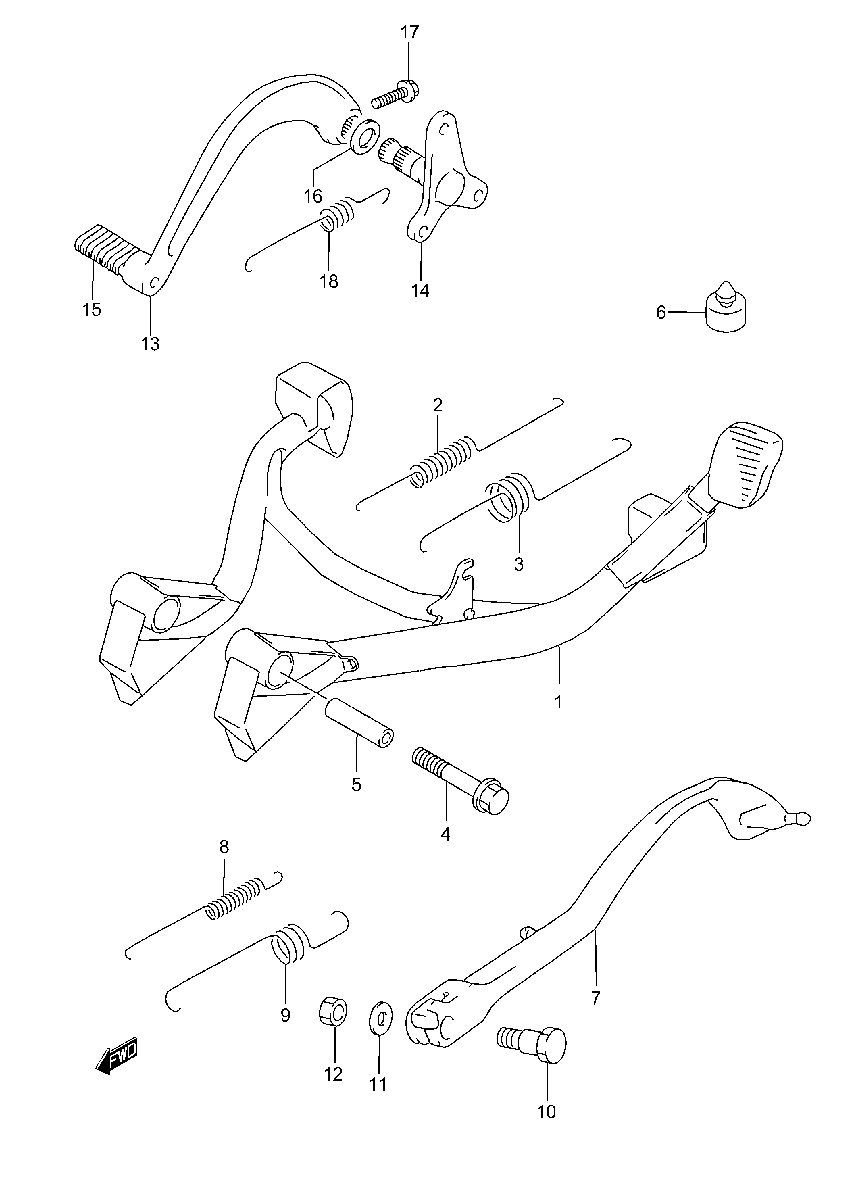

BRAKE PEDAL W/ STAND для Suzuki GSX600F K5 - 2005 года выпуска
-
№АртикулНазвание
-
142100-08F00 STAND, CENTERSTAND, CENTER
-
209443-14059 SPRING, INNERSPRING, INNER
-
309443-22013 SPRING, OUTERSPRING, OUTER
-
401580-10603 BOLTBOLT
-
509180-10040 SPACERSPACER
-
609321-10017 CUSHIONCUSHION
-
742310-08F01 STAND, PROPSTAND, PROP
-
809443-12036 SPRING, INNERSPRING, INNER
-
909443-19010 SPRING, OUTERSPRING, OUTER
-
1009111-10036 BOLTBOLT
-
1108221-12224 SHIMSHIM
-
1209159-10097 NUTNUT
-
1343110-19C02 PEDAL, BRAKEPEDAL, BRAKE
-
1443120-19C00 ARM, BRAKE PEDAL RODARM, BRAKE PEDAL ROD
-
1543151-04701 RUBBERRUBBER
-
1643212-04A00 WASHER, BRAKE BOSSWASHER, BRAKE BOSS
-
1701547-06253 BOLTBOLT
-
1809443-13028 SPRINGSPRING
