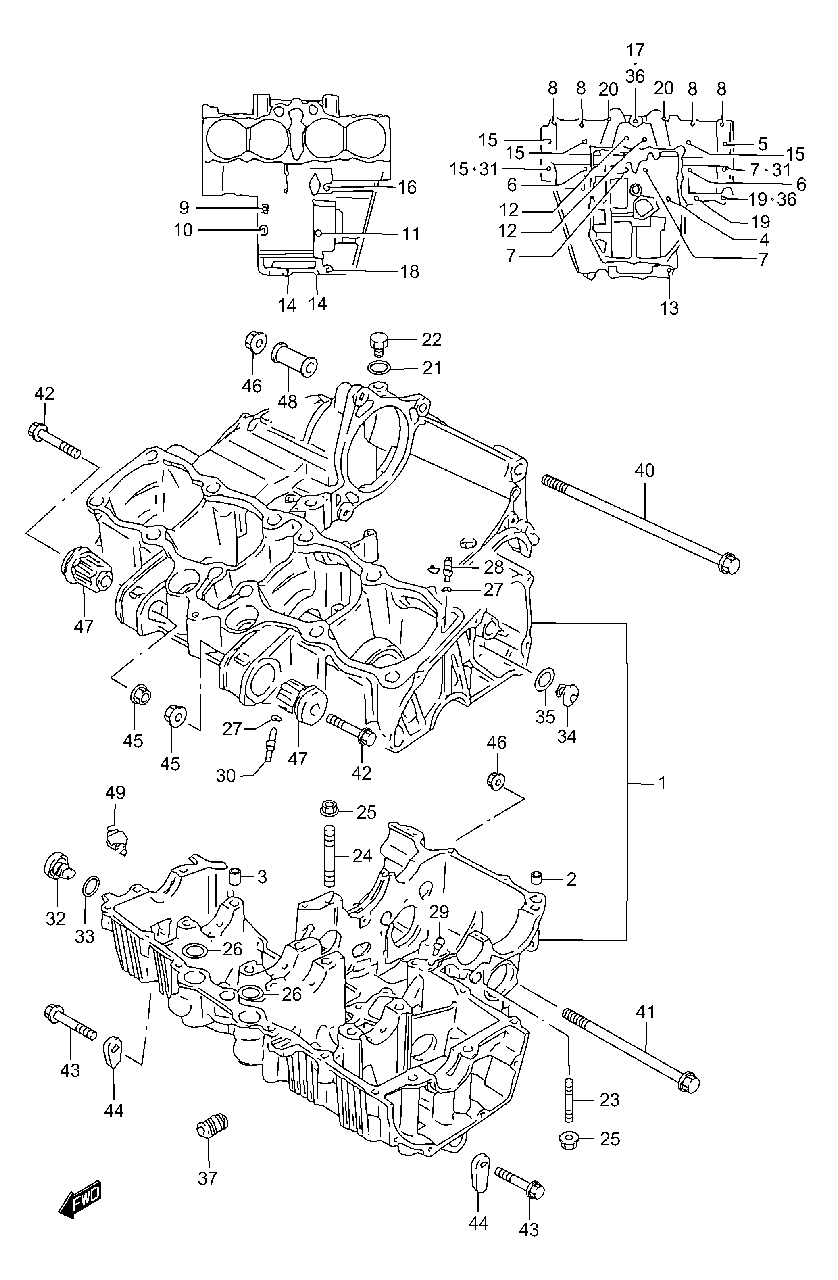

CRANKCASE для Suzuki GSX600F K5 - 2005 года выпуска
-
№АртикулНазвание
-
111301-19890 CRANKCASE SETCRANKCASE SET
-
209206-13004 PINPIN
-
309206-11007 PINPIN
-
409103-06163 BOLT (6X105)BOLT (6X105)
-
509103-08097 BOLT (8X105)BOLT (8X105)
-
609103-08182 BOLT (8X125)BOLT (8X125)
-
709103-08098 BOLT (8X115)BOLT (8X115)
-
801550-06353 BOLTBOLT
-
907130-06403 BOLTBOLT
-
1007130-06503 BOLTBOLT
-
1107130-06653 BOLTBOLT
-
1207130-08653 BOLTBOLT
-
1301550-08603 BOLTBOLT
-
1401550-06407 BOLTBOLT
-
1509103-08066 BOLT (8X95)BOLT (8X95)
-
1601550-06803 BOLTBOLT
-
1701550-06503 BOLTBOLT
-
1801550-06603 BOLTBOLT
-
1901550-06553 BOLTBOLT
-
2001550-06703 BOLTBOLT
-
2109168-12002 GASKET, HOLE PLUGGASKET, HOLE PLUG
-
2209247-12103 PLUG, HOLEPLUG, HOLE
-
2301421-06408 STUD BOLTSTUD BOLT
-
2401421-06608 STUD BOLTSTUD BOLT
-
2508316-10063 NUTNUT
-
2609280-21008 O RING (D:2.5,ID:21.0)O RING (D:2.5,ID:21.0)
-
2709280-04004 O RING (D:1.2,ID:4.0)O RING (D:1.2,ID:4.0)
-
2809493-14002 JET, OIL GALL HEADJET, OIL GALL HEAD
-
2909493-24010 JET, OIL GALL GEAR SHIFTJET, OIL GALL GEAR SHIFT
-
3009493-26007 JET, OIL GALL PISTONJET, OIL GALL PISTON
-
3109168-08021 GASKETGASKET
-
3209248-16003 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
3309280-17002 O RING (D:2.4,ID:16.8)O RING (D:2.4,ID:16.8)
-
3409248-14010 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
3509168-14002 GASKETGASKET
-
3609168-06023 GASKETGASKET
-
3716591-06B00 UNION, OIL FILTER STANDUNION, OIL FILTER STAND
-
3812228-43414 BEARING, THRUST RIGHT HAND (BROWN)BEARING, THRUST RIGHT HAND (BROWN)
-
3912228-43411 BEARING, THRUST LEFT HAND (RED)BEARING, THRUST LEFT HAND (RED)
-
3912228-43412 BEARING, THRUST LEFT HAND (BLACK)BEARING, THRUST LEFT HAND (BLACK)
-
3912228-43413 BEARING, THRUST LEFT HAND (BLUE)BEARING, THRUST LEFT HAND (BLUE)
-
3912228-43414 BEARING, THRUST LEFT HAND (GREEN)BEARING, THRUST LEFT HAND (GREEN)
-
3912228-43415 BEARING, THRUST LEFT HAND (YELLOW)BEARING, THRUST LEFT HAND (YELLOW)
-
3912228-43416 BEARING, THRUST LEFT HAND (WHITE)BEARING, THRUST LEFT HAND (WHITE)
-
4009103-10151 BOLT (10X175)BOLT (10X175)
-
4109103-10237 BOLT (10X130)BOLT (10X130)
-
4201550-10553 BOLTBOLT
-
4309103-10298 BOLT (10X55)BOLT (10X55)
-
4409159-10020 NUTNUT
-
4508316-10103 NUTNUT
-
4609159-10058 NUTNUT
-
4711681-06B00 BUSHBUSH
-
4811610-20C00 SPACER (L:27)SPACER (L:27)
-
4937820-33D10 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
