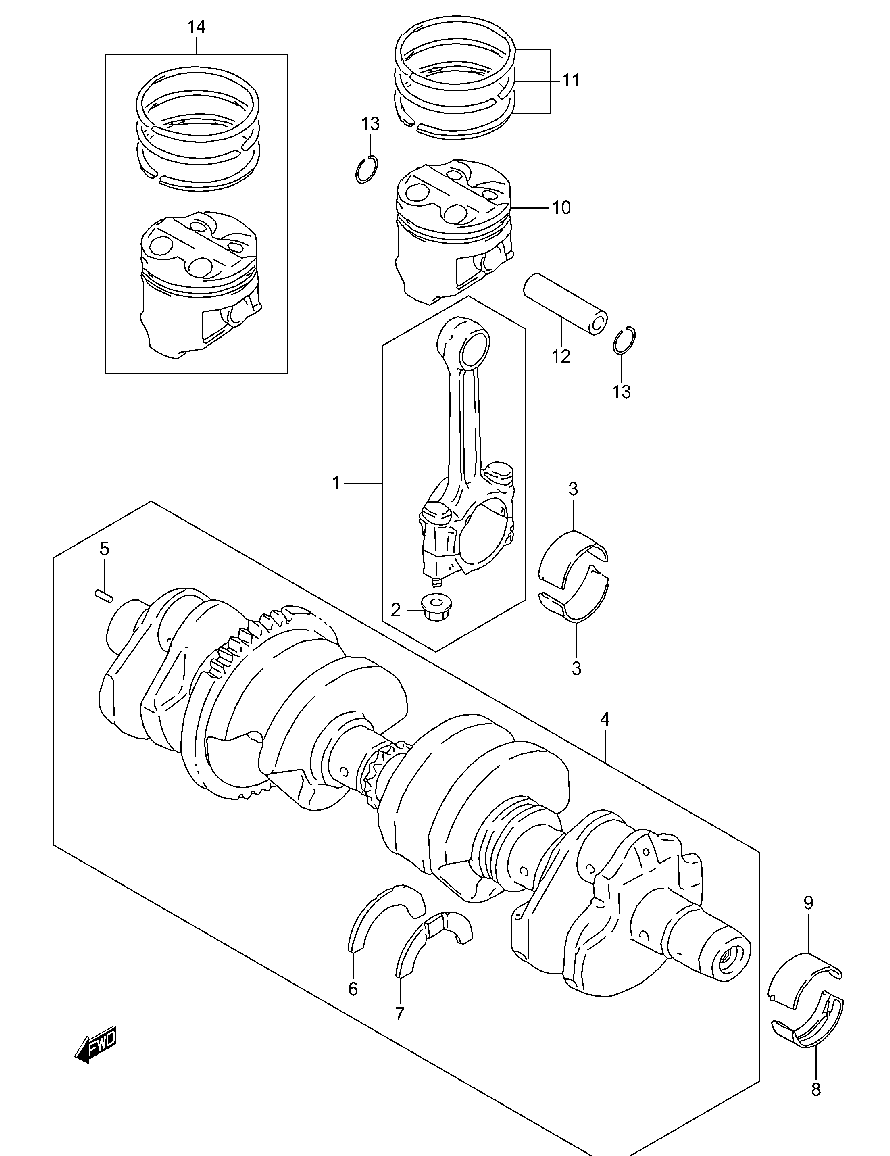

CRANKSHAFT W/ PISTON для Suzuki GSX600F K5 - 2005 года выпуска
-
№АртикулНазвание
-
112160-27A14 ROD ASSY, CONNECTINGROD ASSY, CONNECTING
-
209159-08033 NUTNUT
-
312164-26E00-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
312164-26E00-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
312164-26E00-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
312164-26E00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
412000-26831 CRANKSHAFT SETCRANKSHAFT SET
-
504221-04089 PINPIN
-
612228-43414 BEARING, THRUST RIGHT HAND (GREEN)BEARING, THRUST RIGHT HAND (GREEN)
-
712228-43411 BEARING, THRUST LEFT HAND (RED)BEARING, THRUST LEFT HAND (RED)
-
712228-43412 BEARING, THRUST LEFT HAND (BLACK)BEARING, THRUST LEFT HAND (BLACK)
-
712228-43413 BEARING, THRUST LEFT HAND (BLUE)BEARING, THRUST LEFT HAND (BLUE)
-
712228-43414 BEARING, THRUST LEFT HAND (GREEN)BEARING, THRUST LEFT HAND (GREEN)
-
712228-43415 BEARING, THRUST LEFT HAND (YELLOW)BEARING, THRUST LEFT HAND (YELLOW)
-
712228-43416 BEARING, THRUST LEFT HAND (WHITE)BEARING, THRUST LEFT HAND (WHITE)
-
812229-27A00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
812229-27A00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
812229-27A00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
812229-27A00-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
912229-27A10-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
912229-27A10-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
912229-27A10-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
912229-27A10-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
1012111-19C30-0F0 PISTONPISTON
-
1112140-19C20 RING SET, PISTONRING SET, PISTON
-
1212151-19C02 PIN, PISTONPIN, PISTON
-
1309381-18003 CIRCLIPCIRCLIP
-
1412100-19C30-050 PISTON SET (OS:0.5)PISTON SET (OS:0.5)
