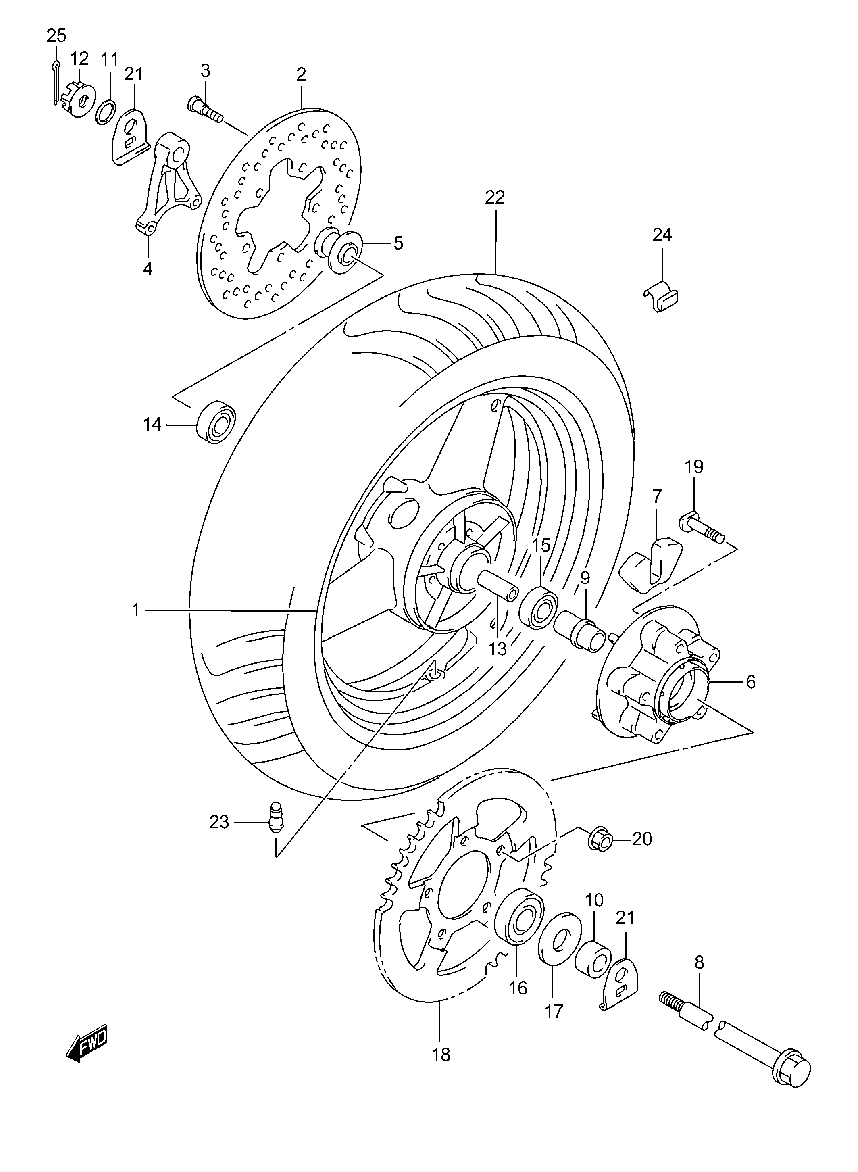

WHEEL - REAR для Suzuki GSX600F K5 - 2005 года выпуска
-
№АртикулНазвание
-
164111-08F01-019 WHEEL, REAR (17XMT4.50) (BLACK)WHEEL, REAR (17XMT4.50) (BLACK)
-
269211-21E00 DISC, REAR BRAKEDISC, REAR BRAKE
-
309106-08125 BOLT (8X33)BOLT (8X33)
-
469721-33D00 BRACKET, REAR CALIPERBRACKET, REAR CALIPER
-
564740-19C00 SPACER, REAR AXLE RIGHT HANDSPACER, REAR AXLE RIGHT HAND
-
664611-33C00 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
764651-27A01 ABSORBER, REAR HUB SHOCKABSORBER, REAR HUB SHOCK
-
864711-08F10 AXLE, REARAXLE, REAR
-
964733-34C00 RETAINER, HUB BEARINGRETAINER, HUB BEARING
-
1064741-45D00 SPACER, REAR AXLE LEFT HANDSPACER, REAR AXLE LEFT HAND
-
1109160-17050 WASHERWASHER
-
1208314-40163 NUTNUT
-
1309180-17067 SPACER, BEARING (17.5X25X88)SPACER, BEARING (17.5X25X88)
-
1408123-63037 BEARING, RBEARING, R
-
1508143-63037 BEARING, LBEARING, L
-
1609262-25073 BEARING (25X62X17)BEARING (25X62X17)
-
1709285-35001 OIL SEAL (35X62X8)OIL SEAL (35X62X8)
-
1864511-20C11 SPROCKET, REAR (NT:47)SPROCKET, REAR (NT:47)
-
1909119-10043 BOLT (10X47)BOLT (10X47)
-
2008319-31107 NUTNUT
-
2161445-20C01 WASHER, CHAIN ADJUSTERWASHER, CHAIN ADJUSTER
-
2265110-08F20 TIRE, REAR, 150/70 ZR17M/C (69W)TIRE, REAR, 150/70 ZR17M/C (69W)
-
2343130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
2455411-17G00 BALANCER, WHEEL NO.1BALANCER, WHEEL NO.1
-
2455412-17G00 BALANCER, WHEEL NO.2BALANCER, WHEEL NO.2
-
2455413-17G00 BALANCER, WHEEL NO.3BALANCER, WHEEL NO.3
-
2504111-40308 PIN, COTTERPIN, COTTER
