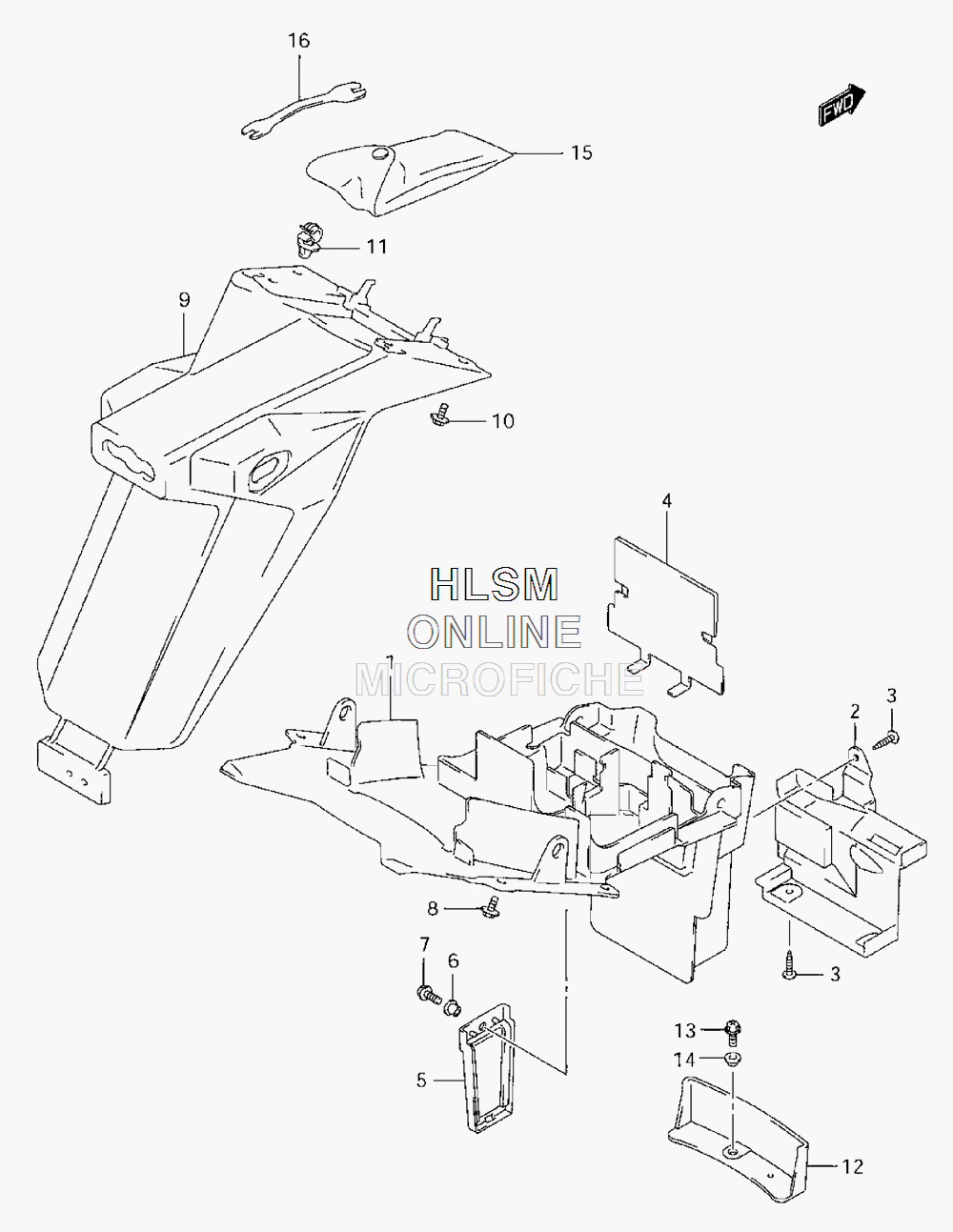

FENDER - REAR для Suzuki SV1000 K6 - 2006 года выпуска
-
№АртикулНазвание
-
163110-16GA0-5PK FENDER, REAR, FRONT (BLACK)FENDER, REAR, FRONT (BLACK)
-
263260-16GA0 COVER, REAR FENDER FRONTCOVER, REAR FENDER FRONT
-
303541-0512B SCREWSCREW
-
463251-16GA0 COVER, REAR FENDER UPPERCOVER, REAR FENDER UPPER
-
563190-16GA0 LID, REAR FENDER FRONTLID, REAR FENDER FRONT
-
609409-08329 GROMMETGROMMET
-
709409-08330 PLUNGERPLUNGER
-
809116-06098 BOLT,6X14BOLT,6X14
-
963112-16GB1-5PK FENDER, REAR (BLACK)FENDER, REAR (BLACK)
-
1009116-06098 BOLT,6X14BOLT,6X14
-
1109403-07325 CLIPCLIP
-
1263421-16GA0 MUDGUARD, LOWERMUDGUARD, LOWER
-
1302162-0616B BOLTBOLT
-
1409169-06071 WASHERWASHER
-
1509800-21039 TOOL ASSYTOOL ASSY
-
1609813-00039 SPANNERSPANNER
