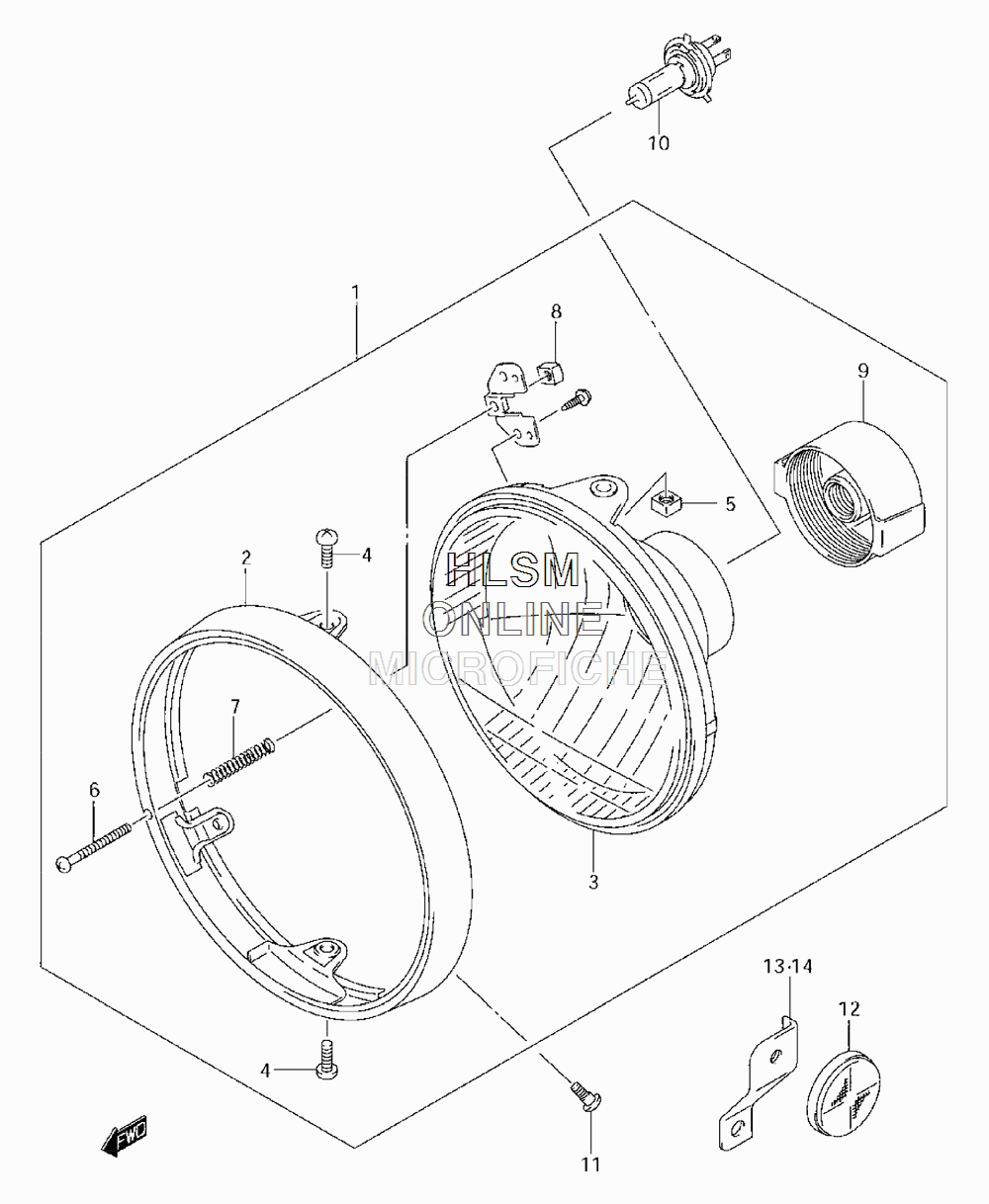

HEADLAMP для Suzuki SV1000 K6 - 2006 года выпуска
-
№АртикулНазвание
-
135100-19F00-999 HEADLAMP ASSY (INCL. 2-9)HEADLAMP ASSY (INCL. 2-9)
-
235111-19F00 RIMRIM
-
335121-19F00 LAMP UNITLAMP UNIT
-
435181-19F00 SCREW (5X6) (INCL. 5)SCREW (5X6) (INCL. 5)
-
535135-45900 NUTNUT
-
635151-19F00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
735154-13F00 SPRINGSPRING
-
835152-45600 NUTNUT
-
935174-19F00 COVER, SOCKETCOVER, SOCKET
-
1009471-12185 BULB (12V60/55W,H4)BULB (12V60/55W,H4)
-
1109139-05038 SCREWSCREW
-
1235950-14A10 REFLEX REFLECTOR ASSY, FRREFLEX REFLECTOR ASSY, FR
-
1335956-16G00 BRACKET, FRONT SIDE, RIGHT HANDBRACKET, FRONT SIDE, RIGHT HAND
-
1435957-16G00 BRACKET, FRONT SIDE, LEFT HANDBRACKET, FRONT SIDE, LEFT HAND
