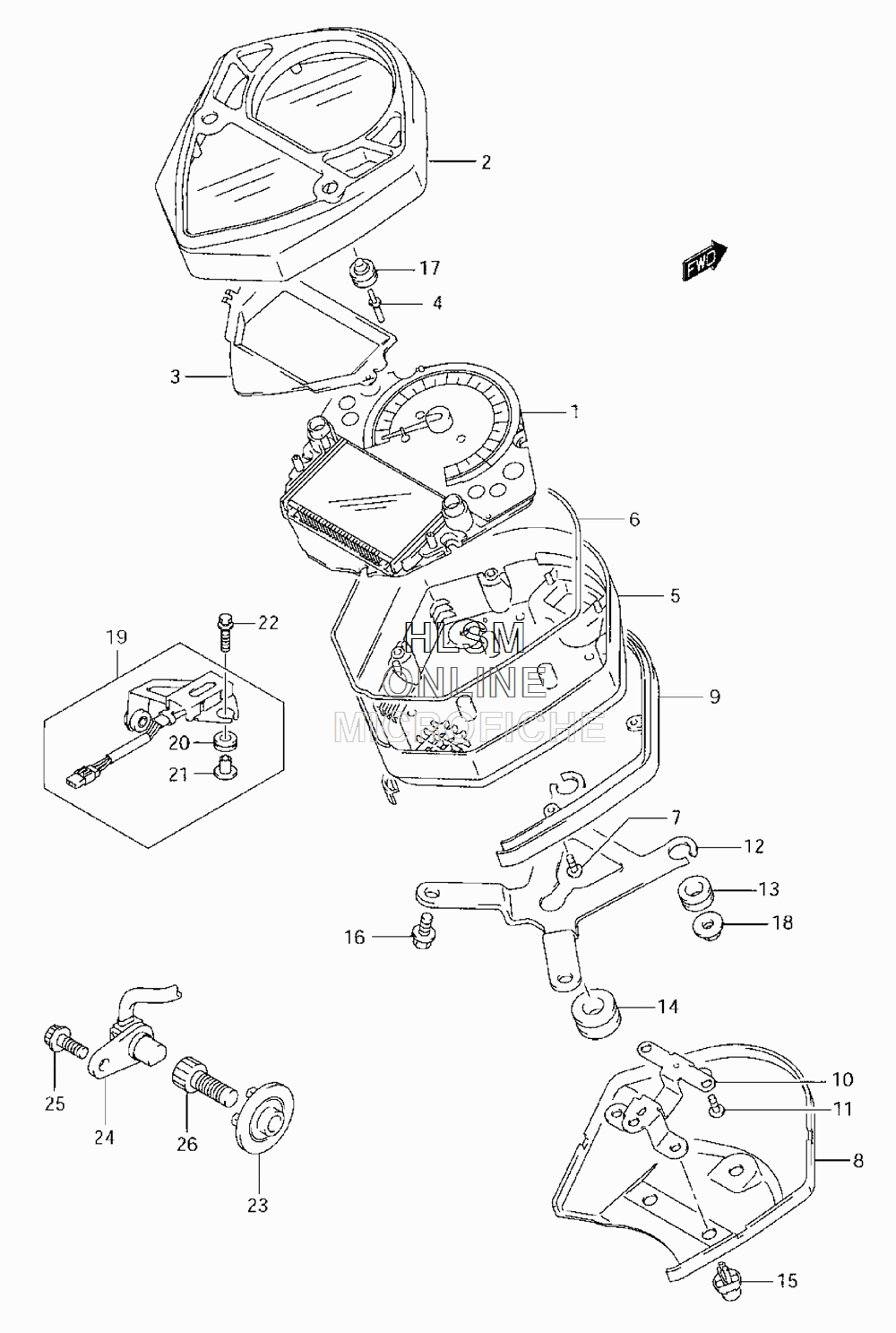

SPEEDOMETER для Suzuki SV1000 K6 - 2006 года выпуска
-
№АртикулНазвание
-
134120-16G80 SPEEDOMETER (MILE/KILO)SPEEDOMETER (MILE/KILO)
-
234150-16G30 CASE, SPEEDOMETER UPPERCASE, SPEEDOMETER UPPER
-
334125-16G00 PLATE, SPEEDOMETERPLATE, SPEEDOMETER
-
434124-16G00 KNOB, SPEEDOMETERKNOB, SPEEDOMETER
-
534152-16G00 CASE, SPEEDOMETER LOWERCASE, SPEEDOMETER LOWER
-
634153-16G00 GASKET, METER CASEGASKET, METER CASE
-
734183-16G30 SCREW, SPEEDOMETERSCREW, SPEEDOMETER
-
834156-16G30 COVER, SPEEDOMETER LOWERCOVER, SPEEDOMETER LOWER
-
934157-16G30 DECORATION PLATE, METER CASEDECORATION PLATE, METER CASE
-
1034195-16G30 HOLDER, SPEEDOMETERHOLDER, SPEEDOMETER
-
1134149-16B00 SCREWSCREW
-
1234162-16G40 BRACKET, SPEEDOMETER CASEBRACKET, SPEEDOMETER CASE
-
1334996-43410 CUSHION, SPEEDOMETERCUSHION, SPEEDOMETER
-
1434955-13E00 CUSHION, SPEEDOMETERCUSHION, SPEEDOMETER
-
1509409-07332 CLIPCLIP
-
1607120-06163 BOLT, SPEEDOMETERBOLT, SPEEDOMETER
-
1734126-16G00 COVER, SPEEDOMETER KNOBCOVER, SPEEDOMETER KNOB
-
1809159-05044 NUTNUT
-
1936510-16G00 RESISTOR ASSY (INCL. 20-21)RESISTOR ASSY (INCL. 20-21)
-
2009320-10015 CUSHION, RESISTORCUSHION, RESISTOR
-
2109180-06319 SPACER (6.5X10X11.6)SPACER (6.5X10X11.6)
-
2209116-06047 BOLT, RESISTOR (6X25)BOLT, RESISTOR (6X25)
-
2334981-35F00 ROTOR, SPEEDROTOR, SPEED
-
2434990-35F00 SENSOR, SPEEDSENSOR, SPEED
-
2507120-0512B BOLT, SPEED SENSORBOLT, SPEED SENSOR
-
2607130-0825B BOLT, SPEED ROTORBOLT, SPEED ROTOR
