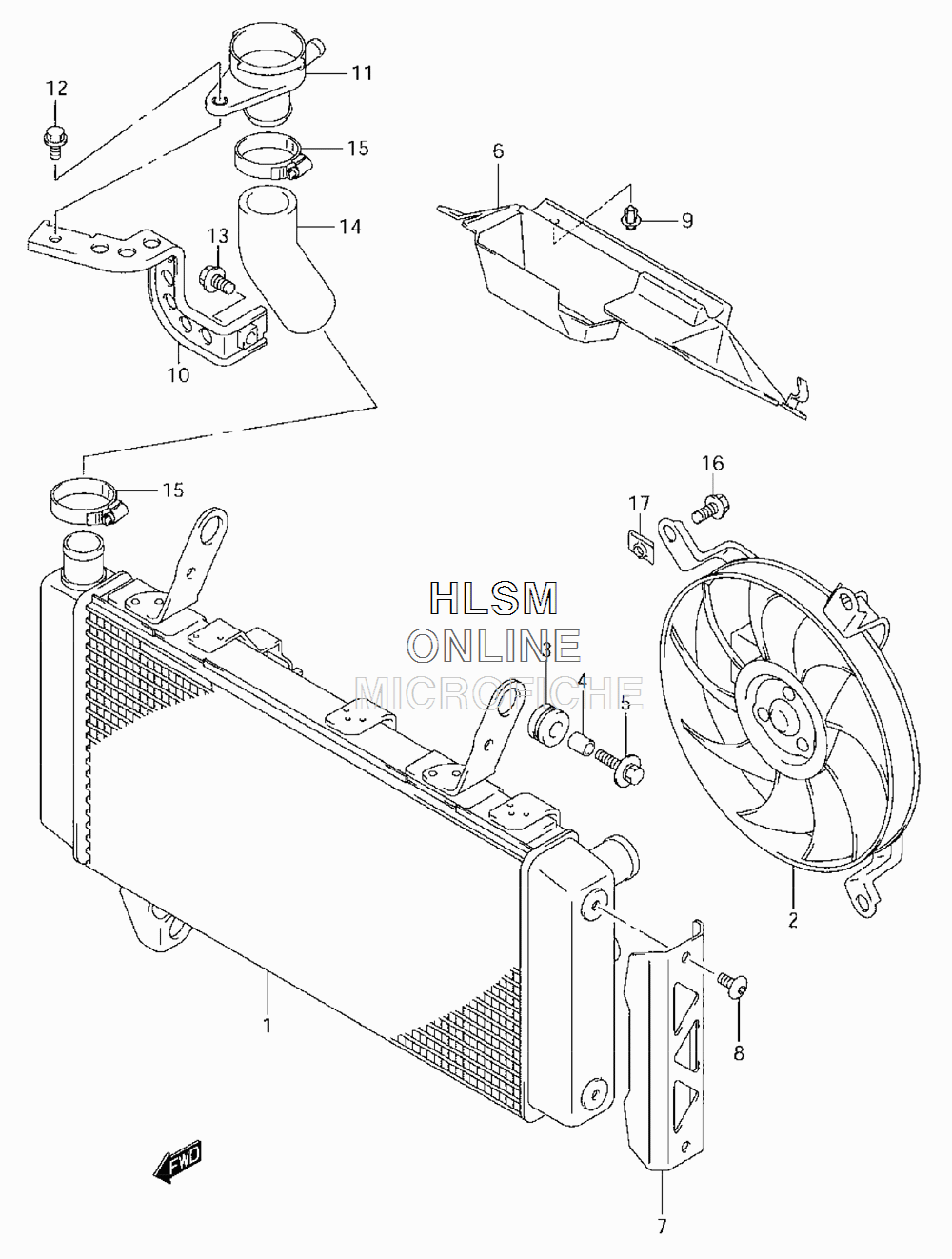

RADIATOR для Suzuki SV1000 K6 - 2006 года выпуска
-
№АртикулНазвание
-
117710-16G00 RADIATOR ASSY, WATER (NOT FOR US)RADIATOR ASSY, WATER (NOT FOR US)
-
217800-16G00 FAN ASSYFAN ASSY
-
309320-10051 CUSHIONCUSHION
-
409180-06290 SPACERSPACER
-
509118-06097 BOLT (6X20)BOLT (6X20)
-
617771-16G00 SHIELDSHIELD
-
717761-16G00 COVERCOVER
-
809139-06027 BOLTBOLT
-
909409-06313 CLIPCLIP
-
1601550-06163 BOLTBOLT
-
1717802-14F00 NUTNUT
