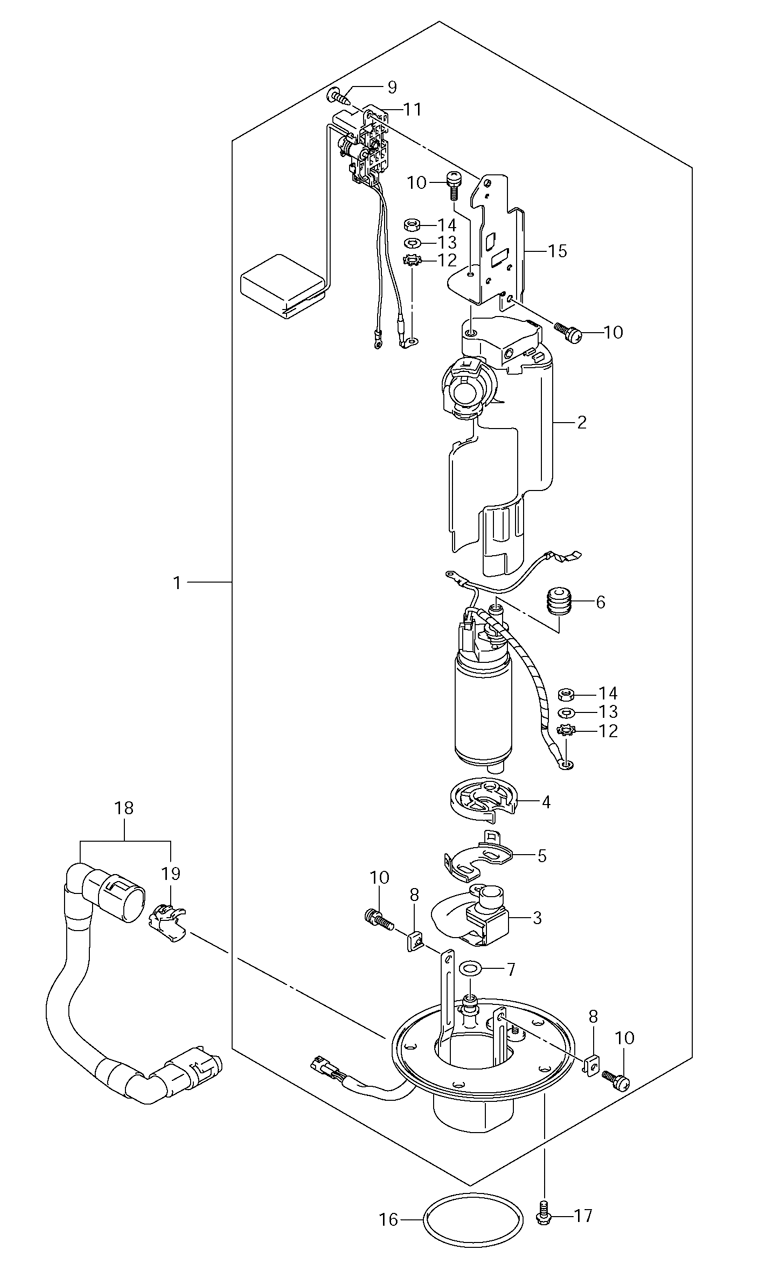

FUEL PUMP для Suzuki GSX-1300R K8 - 2008 года выпуска
-
№АртикулНазвание
-
115100-15H00 PUMP ASSEMBLY, FUELPUMP ASSEMBLY, FUEL
-
215410-41G00 ...FILTER ASSEMBLY, FUEL...FILTER ASSEMBLY, FUEL
-
315420-44G00 ...STRAINER, FUEL PUMP...STRAINER, FUEL PUMP
-
415111-35F00 ...CUSHION, FUEL PUMP...CUSHION, FUEL PUMP
-
515112-42F00 ...HOLDER, FUEL PUMP...HOLDER, FUEL PUMP
-
615114-35F00 ...BUSH, FUEL PUMP...BUSH, FUEL PUMP
-
715113-35F00 ...O RING...O RING
-
815115-35F00 ...NUT...NUT
-
915116-06G10 ...SCREW...SCREW
-
1015116-35F10 ...SCREW...SCREW
-
1134810-15H00 ...GAUGE ASSEMBLY, FUEL LEVEL...GAUGE ASSEMBLY, FUEL LEVEL
-
1215171-35F00 ...WASHER...WASHER
-
1315172-35F00 ...SPRING WASHER...SPRING WASHER
-
1415173-35F00 ...NUT...NUT
-
1515181-15H00 ...BRACKET, FUEL GAUGE...BRACKET, FUEL GAUGE
-
1615201-35F00 O RINGO RING
-
1707120-0612A BOLTBOLT
-
1815810-15H00 HOSE, FUELHOSE, FUEL
-
1915815-35F00 ...RETAINER...RETAINER
