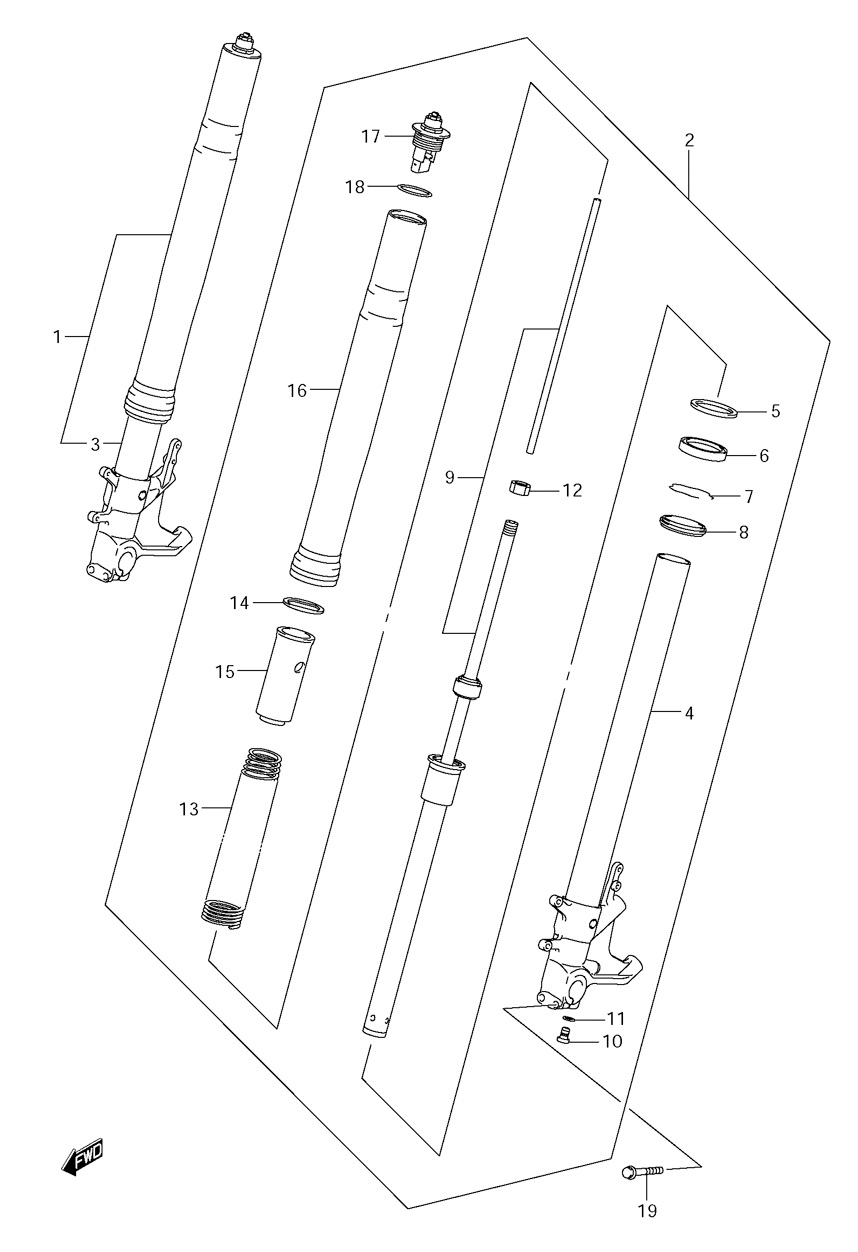

SUSPENSION - FRONT FORK для Suzuki GSX-1300R K8 - 2008 года выпуска
-
№АртикулНазвание
-
151103-24F50 DAMPER ASSEMBLY, FRONT FORK RIGHT HANDDAMPER ASSEMBLY, FRONT FORK RIGHT HAND
-
251104-24F50 DAMPER ASSEMBLY, FRONT FORK LEFT HANDDAMPER ASSEMBLY, FRONT FORK LEFT HAND
-
351110-24F50 ...TUBE, INNER RIGHT HAND...TUBE, INNER RIGHT HAND
-
451120-24F50 ...TUBE, INNER LEFT HAND...TUBE, INNER LEFT HAND
-
551158-14200 ...WASHER...WASHER
-
651153-41G00 ...SEAL, OIL...SEAL, OIL
-
751156-14200 ...RING, STOPPER...RING, STOPPER
-
851173-41G00 ...SEAL, DUST...SEAL, DUST
-
951146-24F50 ...CYLINDER...CYLINDER
-
1051147-24F50 ...BOLT...BOLT
-
1151148-41310 ...GASKET...GASKET
-
1251352-13A60 ...NUT...NUT
-
1351171-24F50 ...SPRING, FRONT...SPRING, FRONT
-
1451158-40F30 ...GUIDE, SPRING...GUIDE, SPRING
-
1551176-40F30 ...SPACER, SPRING...SPACER, SPRING
-
1651130-24F50 ...TUBE, OUTER (BRONZE)...TUBE, OUTER (BRONZE)
-
1751351-24F50 ...CAP, FRONT FORK...CAP, FRONT FORK
-
1862278-14100 ...O RING...O RING
-
1951166-24F50 BOLTBOLT
