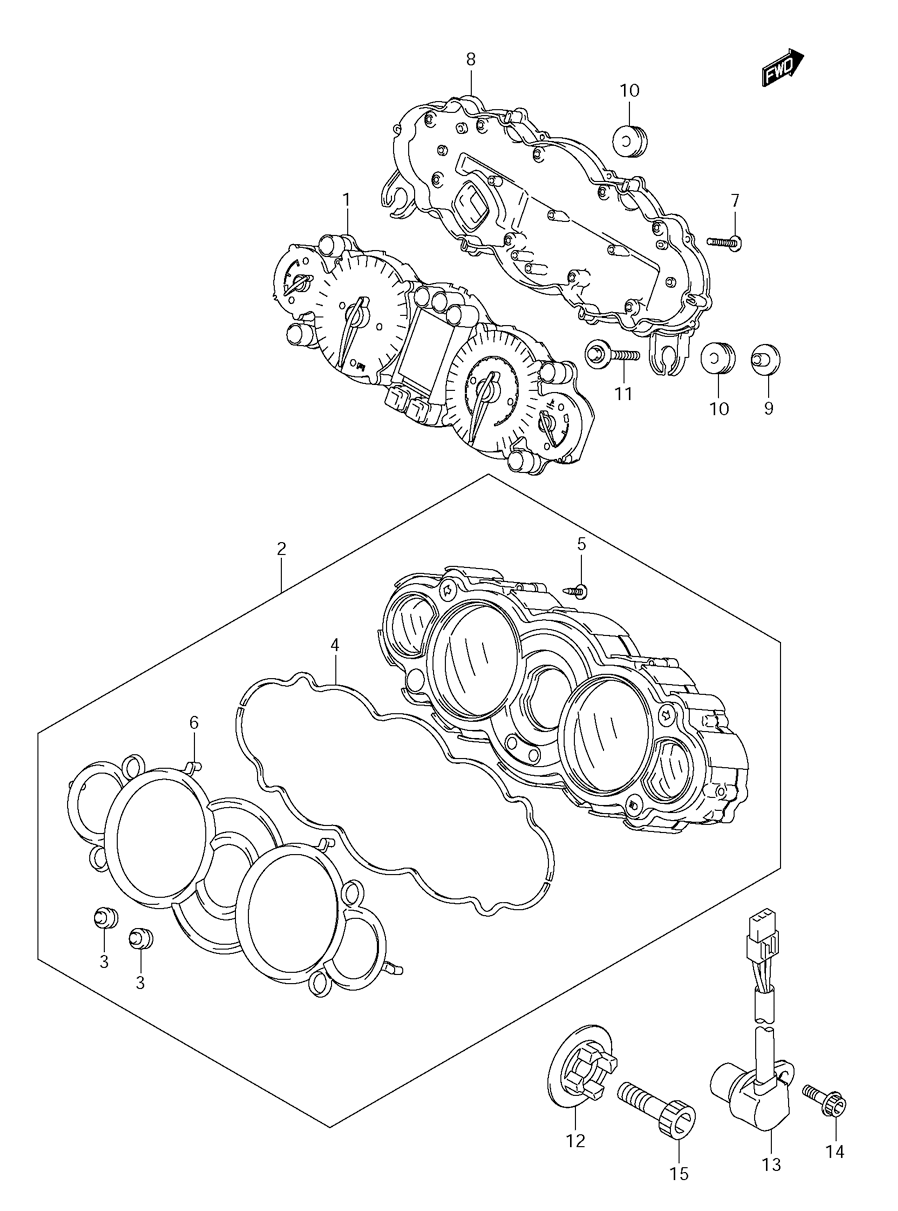

SPEEDOMETER для Suzuki GSX-1300R K8 - 2008 года выпуска
-
№АртикулНазвание
-
134120-15H10 COMBINATION METERCOMBINATION METER
-
134120-15H00 COMBINATION METER (FOR CANADA ONLY)COMBINATION METER (FOR CANADA ONLY)
-
234150-15H00 UPPER CASE ASSEMBLYUPPER CASE ASSEMBLY
-
334124-39G00 ...SWITCH RUBBER...SWITCH RUBBER
-
434153-15H00 ...PACKING...PACKING
-
534183-31F10 ...SCREW (2.3X8)...SCREW (2.3X8)
-
634193-15H00 ...RING...RING
-
709132-03008 SCREW (3X16)SCREW (3X16)
-
834111-15H00 LOWER CASE ASSEMBLYLOWER CASE ASSEMBLY
-
934187-24F00 WASHER, SPEEDOMETERWASHER, SPEEDOMETER
-
1034955-13E00 CUSHION, SPEEDOMETERCUSHION, SPEEDOMETER
-
1109116-06186 BOLT, SPEEDOMETERBOLT, SPEEDOMETER
-
1234981-15H00 ROTOR, SPEEDROTOR, SPEED
-
1334990-35F00 SENSOR, SPEEDSENSOR, SPEED
-
1407120-0512B BOLT, SPEED SENSORBOLT, SPEED SENSOR
-
1507130-0825B BOLT, SPEED ROTORBOLT, SPEED ROTOR
