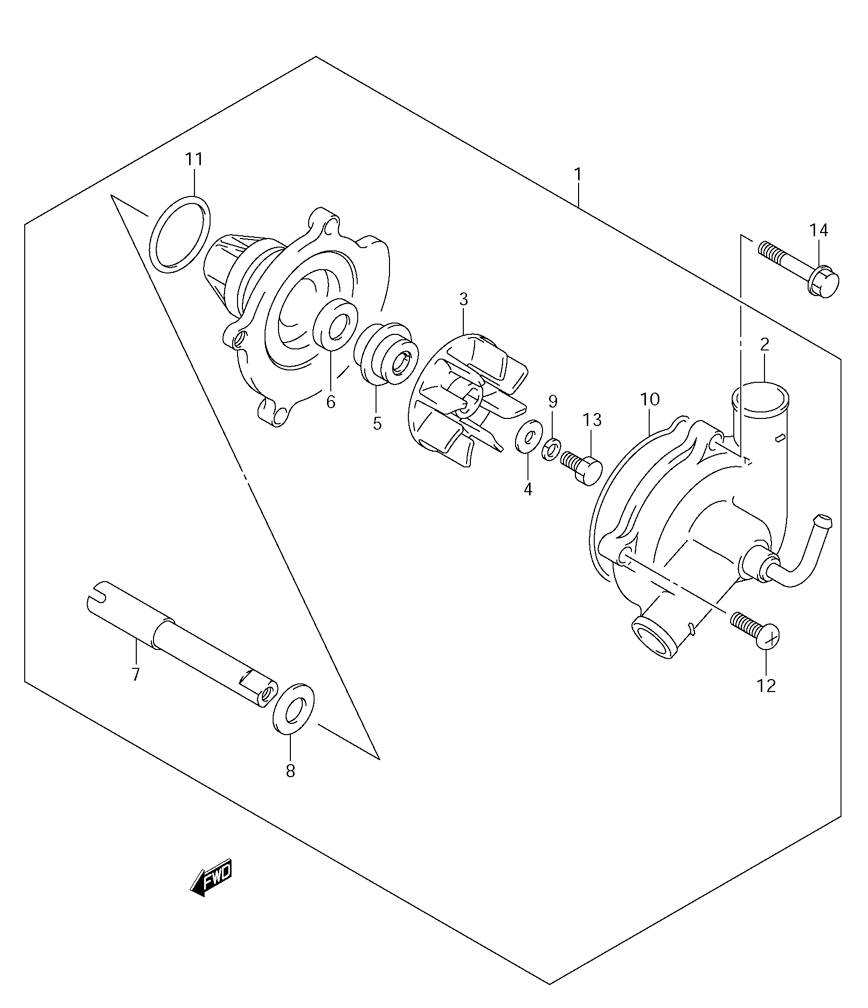

WATER PUMP для Suzuki GSX-1300R K8 - 2008 года выпуска
-
№АртикулНазвание
-
117400-24F10 PUMP ASSEMBLY, WATERPUMP ASSEMBLY, WATER
-
217411-24F00 ...CASE...CASE
-
317491-17E01 ...IMPELLER...IMPELLER
-
409168-06025 ...GASKET...GASKET
-
517470-02F10 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
617461-48G00 ...OIL SEAL...OIL SEAL
-
717511-24F10 ...SHAFT...SHAFT
-
817432-07G00 ...WASHER...WASHER
-
909164-06006 ...LOCK WASHER...LOCK WASHER
-
1017418-33400 ...O RING...O RING
-
1117435-33400 ...O RING...O RING
-
1202112-0616A ...SCREW...SCREW
-
1309100-06099 ...BOLT (6X13)...BOLT (6X13)
-
1401547-0635A BOLTBOLT
