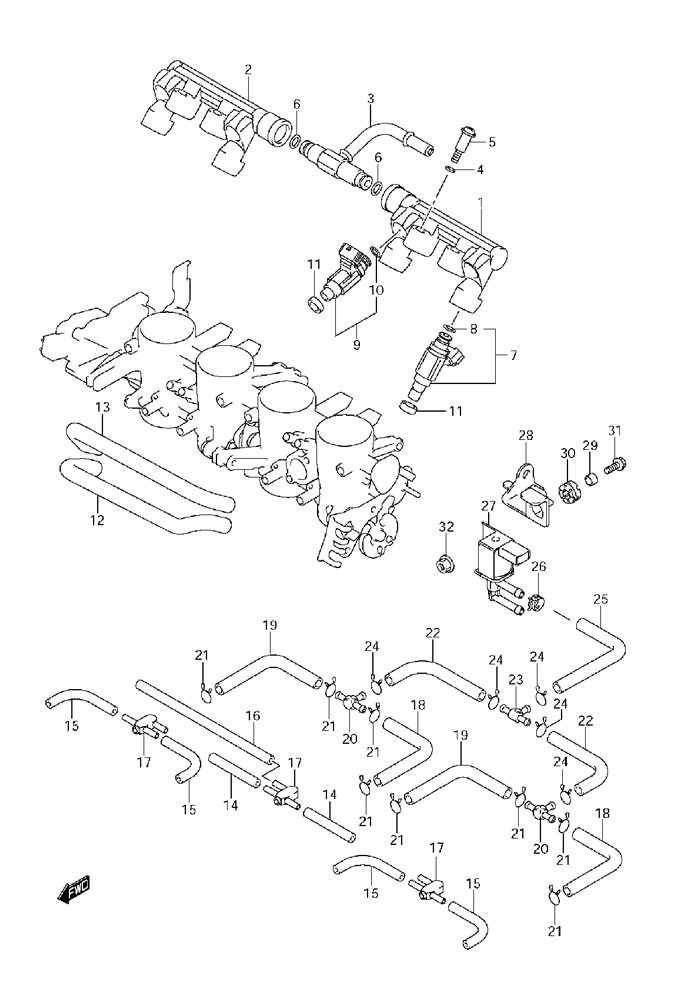

CARBURETOR - THROTTLE BODY FITTINGS для Suzuki GSX-R600 K9 - 2009 года выпуска
-
№АртикулНазвание
-
113473-37H00 DELIVERY PIPE ASSYDELIVERY PIPE ASSY
-
213473-37H10 DELIVERY PIPE ASSYDELIVERY PIPE ASSY
-
313473-29G00 NIPPLE ASSYNIPPLE ASSY
-
413602-29G00 PACKINGPACKING
-
513601-29G00 SCREWSCREW
-
615721-29G00 O RINGO RING
-
715710-37H00 INJECTOR ASSY (INCL. 8)INJECTOR ASSY (INCL. 8)
-
815717-16G00 O RINGO RING
-
915710-37H10 INJECTOR ASSY (INCL. 10)INJECTOR ASSY (INCL. 10)
-
1015717-16G00 O RINGO RING
-
1115722-29G00 SEALSEAL
-
1213698-37H00 HOSEHOSE
-
1313698-37H10 HOSEHOSE
-
1413683-37H00 HOSEHOSE
-
1513683-37H10 HOSEHOSE
-
1613683-04F50 HOSEHOSE
-
1713471-18H00 NIPPLENIPPLE
-
1813683-37H20 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
1913683-37H30 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
2013685-29G00 NIPPLE (CALIF ONLY)NIPPLE (CALIF ONLY)
-
2113671-29G00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
2213680-37H00 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
2313685-48B00 NIPPLE (CALIF ONLY)NIPPLE (CALIF ONLY)
-
2413671-06A10 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
2513680-37H10 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
2609401-10411 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
2718117-82K00 VALVE, CANISTER PURGE (CALIF ONLY)VALVE, CANISTER PURGE (CALIF ONLY)
-
2813165-37H00 BRACKET (CALIF ONLY)BRACKET (CALIF ONLY)
-
2909180-06310 SPACER (CALIF ONLY)SPACER (CALIF ONLY)
-
3009320-10055 CUSHION (CALIF ONLY)CUSHION (CALIF ONLY)
-
3109116-06212 BOLT (CALIF ONLY)BOLT (CALIF ONLY)
-
3208316-1006A NUT (CALIF ONLY)NUT (CALIF ONLY)
