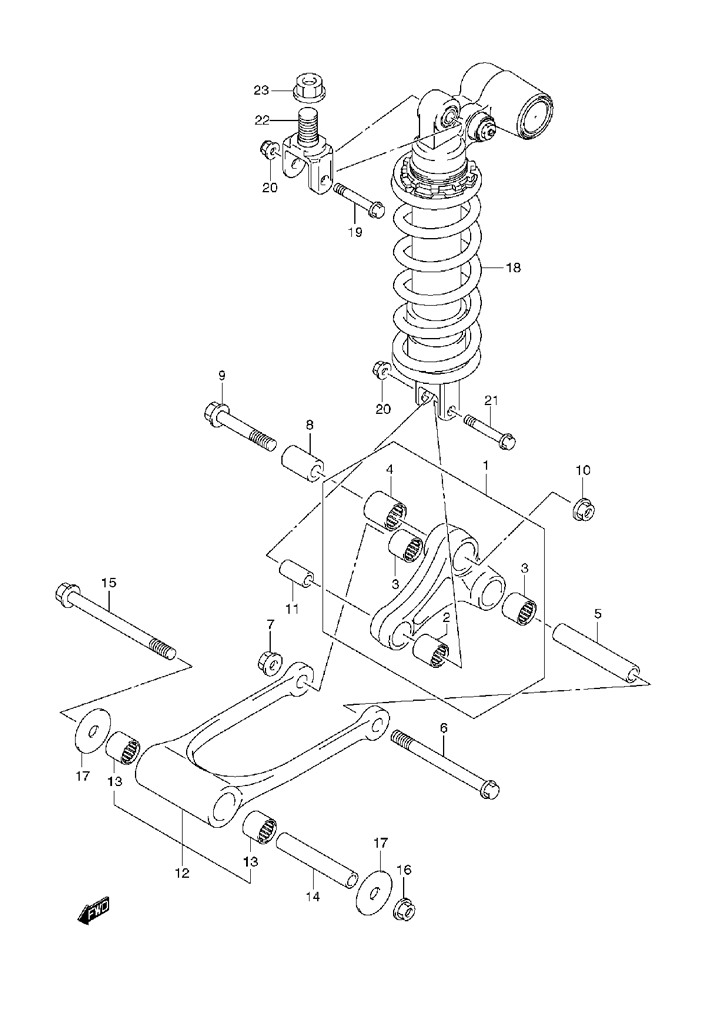

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX-R600 K9 - 2009 года выпуска
-
№АртикулНазвание
-
162601-01850 LEVER SET, REAR CUSHION (INCL. 2-4)LEVER SET, REAR CUSHION (INCL. 2-4)
-
209263-17034 BEARING, FRONT (17X24X26)BEARING, FRONT (17X24X26)
-
309263-17037 BEARING, LOWER (17X24X25)BEARING, LOWER (17X24X25)
-
409263-20074 BEARING, UPPER (20X27X32)BEARING, UPPER (20X27X32)
-
562646-08G00 SPACER, LOWERSPACER, LOWER
-
662621-42E20 BOLT, LOWERBOLT, LOWER
-
709159-12056 NUTNUT
-
862317-27C10 SPACER, UPPERSPACER, UPPER
-
962658-35F00 BOLT, UPPERBOLT, UPPER
-
1009159-12056 NUTNUT
-
1162684-40A10 SPACER, FRONTSPACER, FRONT
-
1262601-01870 ROD SET, REAR CUSHION LEVER (INCL. 13)ROD SET, REAR CUSHION LEVER (INCL. 13)
-
1309263-17037 BEARING, ROD (17X24X25)BEARING, ROD (17X24X25)
-
1462626-21H00 SPACER, RODSPACER, ROD
-
1562621-21H00 BOLT, RODBOLT, ROD
-
1609159-12056 NUTNUT
-
1709160-12037 WASHERWASHER
-
1862100-37H10-163 ABSORBER ASSY, REAR SHOCKABSORBER ASSY, REAR SHOCK
-
1862100-37H00-161 ABSORBER ASSY, REAR SHOCK (CANADA ONLY)ABSORBER ASSY, REAR SHOCK (CANADA ONLY)
-
1909103-10143 BOLT, UPPER (10X55)BOLT, UPPER (10X55)
-
2009159-10115 NUTNUT
-
2109103-10143 BOLT, LOWER (10X55)BOLT, LOWER (10X55)
-
2262993-35F00 BRACKET, ABSORBERBRACKET, ABSORBER
-
2309159-20006 NUTNUT
