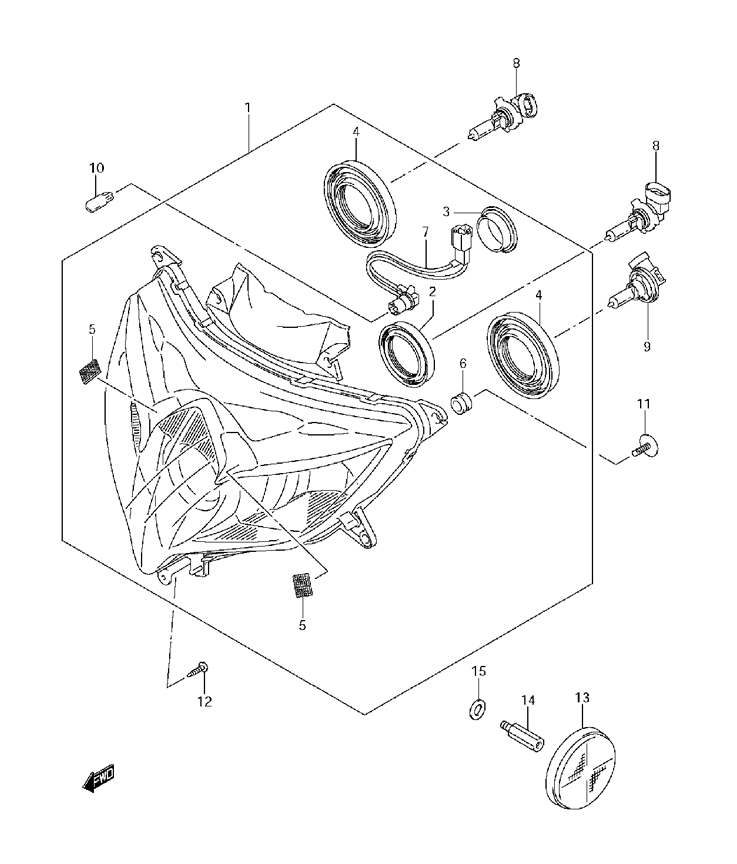

HEADLAMP для Suzuki GSX-R600 K9 - 2009 года выпуска
-
№АртикулНазвание
-
135100-37H30-999 HEADLAMP ASSY (INCL. 2-7)HEADLAMP ASSY (INCL. 2-7)
-
235179-01H00 COVER, SOCKETCOVER, SOCKET
-
335179-37H00 COVER, BACKCOVER, BACK
-
435179-76F10 COVER, SOCKETCOVER, SOCKET
-
544572-37H00 FASTENER, FUEL TANKFASTENER, FUEL TANK
-
609320-09039 CUSHIONCUSHION
-
736118-37H00 SOCKET AND LEADSOCKET AND LEAD
-
809471-12151 BULB (12V60W,HB3,#9005)BULB (12V60W,HB3,#9005)
-
909471-12210 BULB (12V55W,H11)BULB (12V55W,H11)
-
1009471-12216 BULB (12V5W)BULB (12V5W)
-
1109136-05062 SCREW, HEADLAMPSCREW, HEADLAMP
-
1203541-0516B BOLT, HEADLAMPBOLT, HEADLAMP
-
1335950-14A10 REFLEX REFLECTOR ASSY, FR SIDEREFLEX REFLECTOR ASSY, FR SIDE
-
1409116-06109 BOLT, FR SIDEBOLT, FR SIDE
-
1509160-08090 WASHER (8.5X14X1.5)WASHER (8.5X14X1.5)
