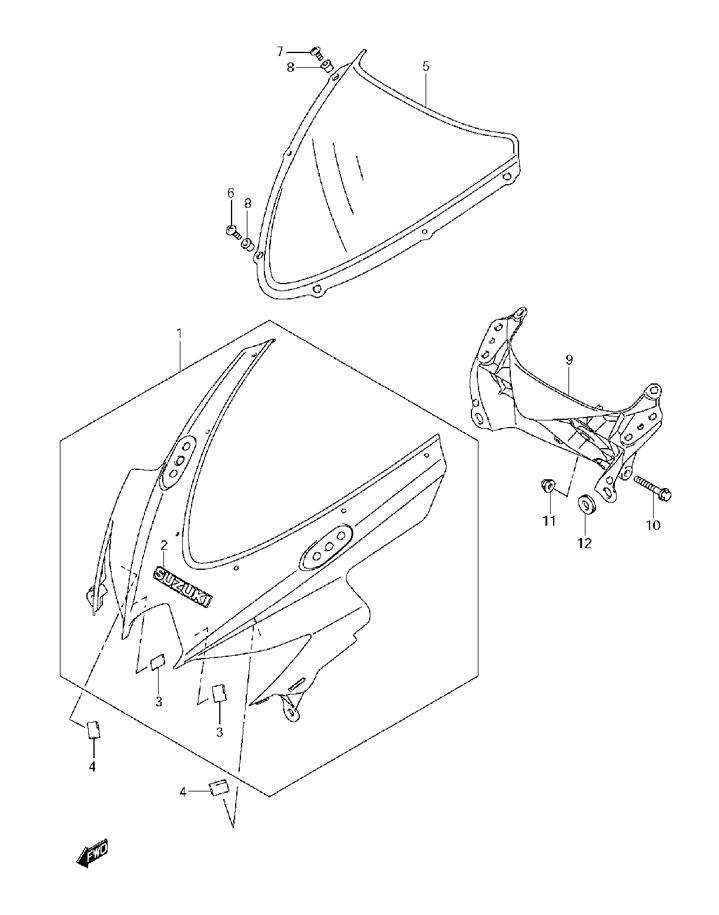

COWLING BODY для Suzuki GSX-R600 K9 - 2009 года выпуска
-
№АртикулНазвание
-
194401-37H10-02X BODY, COWLING (BLACK) (02X)BODY, COWLING (BLACK) (02X)
-
194401-37H10-5WX BODY, COWLING (WHITE) (5WX)BODY, COWLING (WHITE) (5WX)
-
194401-37H10-YME BODY, COWLING (ORANGE) (YME)BODY, COWLING (ORANGE) (YME)
-
194401-37H10-4SX BODY, COWLING (WHITE) (4SX) (INCL. 2-3)BODY, COWLING (WHITE) (4SX) (INCL. 2-3)
-
268641-19F00-17U EMBLEM (GRAY) (17U)EMBLEM (GRAY) (17U)
-
268641-19F00-YLC EMBLEM (GOLD) (YLC)EMBLEM (GOLD) (YLC)
-
268641-19F00-019 EMBLEM (BLACK) (019)EMBLEM (BLACK) (019)
-
344572-37H00 FASTENERFASTENER
-
492146-37H00 CUSHIONCUSHION
-
594611-37H00 WINDSCREENWINDSCREEN
-
609125-05133 SCREW, FRONTSCREW, FRONT
-
709125-05134 SCREW, UPPERSCREW, UPPER
-
809159-05019 NUTNUT
-
994511-37H00 BRACE, COWLINGBRACE, COWLING
-
1001550-0845A BOLTBOLT
-
1108313-2008A NUTNUT
-
1209320-08028 CUSHIONCUSHION
