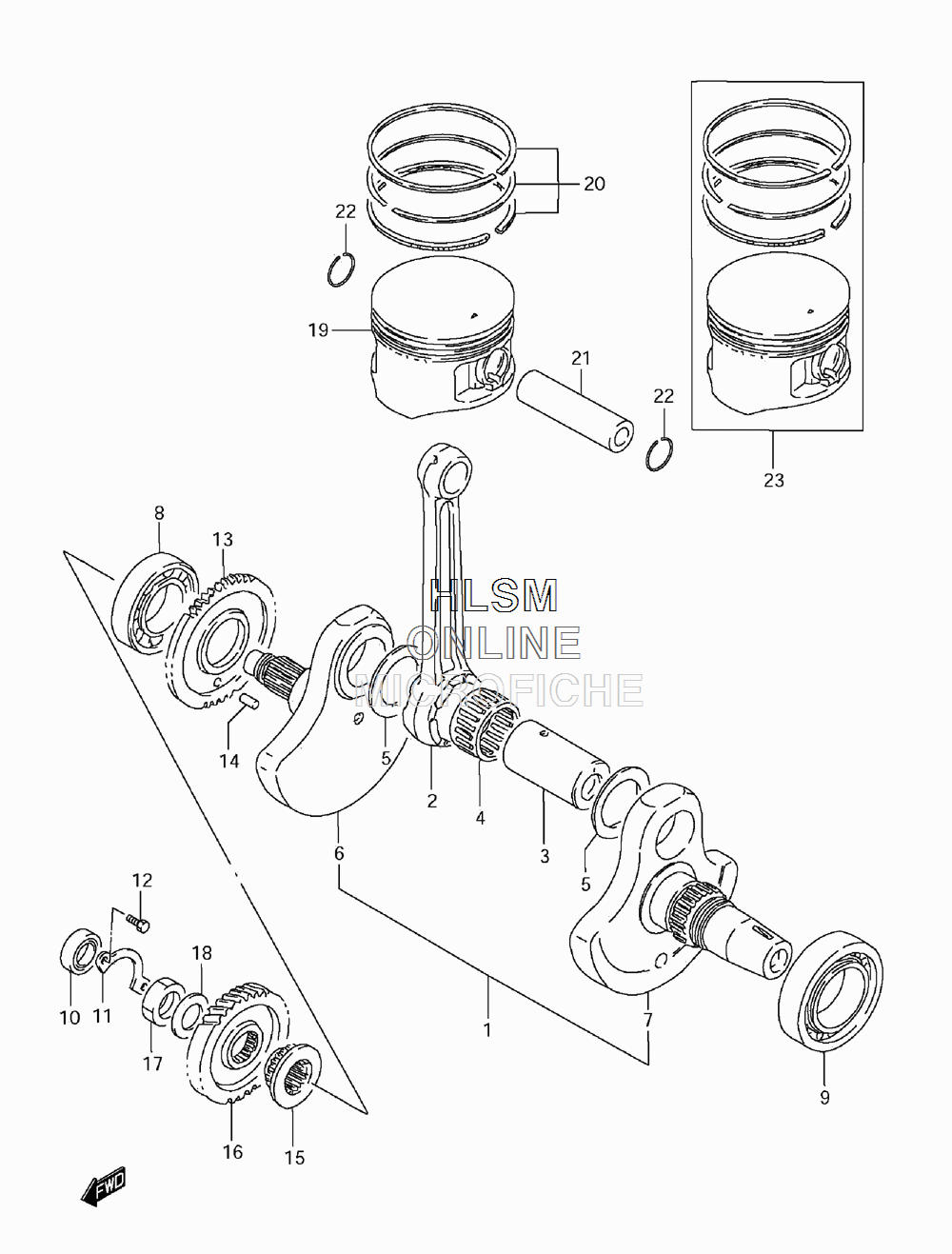

CRANKSHAFT W/ PISTON для Suzuki LS-650 L1 - 2011 года выпуска
-
№АртикулНазвание
-
112200-24B05 CRANKSHAFT ASSY (INC 2-7)CRANKSHAFT ASSY (INC 2-7)
-
212161-24B01-0C0 CONNRODCONNROD
-
312210-24B01-0A0 PIN, CRANKPIN, CRANK
-
409263-37004-0B0 BEARING (37X47X25) (0B0)BEARING (37X47X25) (0B0)
-
409263-37004-0C0 BEARING (37X47X25) (0C0)BEARING (37X47X25) (0C0)
-
509160-37006 WASHER (37X55X1)WASHER (37X55X1)
-
612221-24B02 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
712261-24B02 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
809262-35038 BEARING, RIGHT HAND (35X72X17)BEARING, RIGHT HAND (35X72X17)
-
909264-40002 BEARING, LEFT HAND (40X80X18)BEARING, LEFT HAND (40X80X18)
-
1009282-16002 OIL SEAL, RIGHT HAND (16X30X6)OIL SEAL, RIGHT HAND (16X30X6)
-
1112548-24B00 RETAINER, CRANKSHAFT OIL SEALRETAINER, CRANKSHAFT OIL SEAL
-
1201500-0508B BOLTBOLT
-
1312661-24B00 GEAR, CRANK BALANCER DRIVE NT:47GEAR, CRANK BALANCER DRIVE NT:47
-
1404221-08149 PINPIN
-
1512731-24B00 SPROCKET, CAM CHAIN DRIVE NT:19SPROCKET, CAM CHAIN DRIVE NT:19
-
1621111-24B10 GEAR, PRIMARY DRIVE (NT:37)GEAR, PRIMARY DRIVE (NT:37)
-
1709140-20013 NUTNUT
-
1809164-20003 LOCK WASHERLOCK WASHER
-
1912111-24B01-0F0 PISTONPISTON
-
2012140-14A32 RING SET, PISTONRING SET, PISTON
-
2112151-14A01 PIN, PISTONPIN, PISTON
-
2209381-23003 CIRCLIPCIRCLIP
-
2312100-24B00-050 PISTON SET (OS:0.5) (OPT)PISTON SET (OS:0.5) (OPT)
