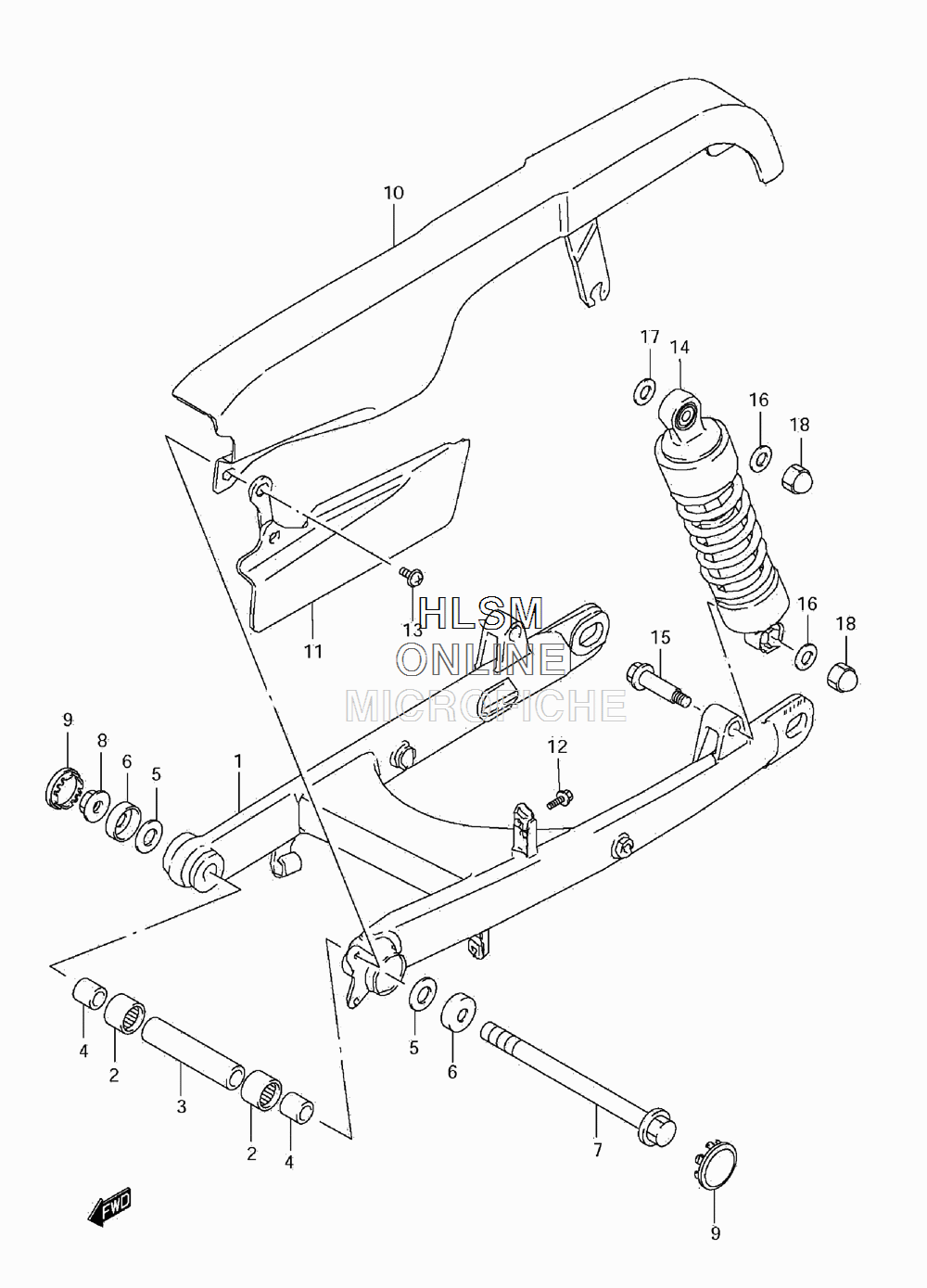

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki LS-650 L1 - 2011 года выпуска
-
№АртикулНазвание
-
161100-24B03-019 SWINGING ARM, REAR (BLACK)SWINGING ARM, REAR (BLACK)
-
209263-22017 BEARING (22X29X30)BEARING (22X29X30)
-
361282-24B01 SPACER, REAR SWINGING ARM PIVOT CENTERSPACER, REAR SWINGING ARM PIVOT CENTER
-
461251-24B00 SPACER, REAR SWINGING ARM PIVOTSPACER, REAR SWINGING ARM PIVOT
-
508211-14341 THRUST WASHERTHRUST WASHER
-
661262-45002 DUST SEAL, REAR SWINGING ARM PIVOTDUST SEAL, REAR SWINGING ARM PIVOT
-
761211-24B00 SHAFT, REAR SWINGING ARM PIVOTSHAFT, REAR SWINGING ARM PIVOT
-
808319-3114A NUTNUT
-
961222-38A01 CAP, REAR SWINGING ARM PIVOTCAP, REAR SWINGING ARM PIVOT
-
1061310-24B02 BELT CASE, UPPERBELT CASE, UPPER
-
1161320-24B02 BELT CASE, LOWERBELT CASE, LOWER
-
1201550-0612B BOLTBOLT
-
1302112-7612B SCREWSCREW
-
1462100-24B00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1562313-24B00 BOLT, REAR SHOCK ABSORBER LOWERBOLT, REAR SHOCK ABSORBER LOWER
-
1609160-10035 WASHER (10.5X28X2.3)WASHER (10.5X28X2.3)
-
1709160-14009 WASHER (14.5X29X2.3)WASHER (14.5X29X2.3)
-
1808313-10107 NUTNUT
