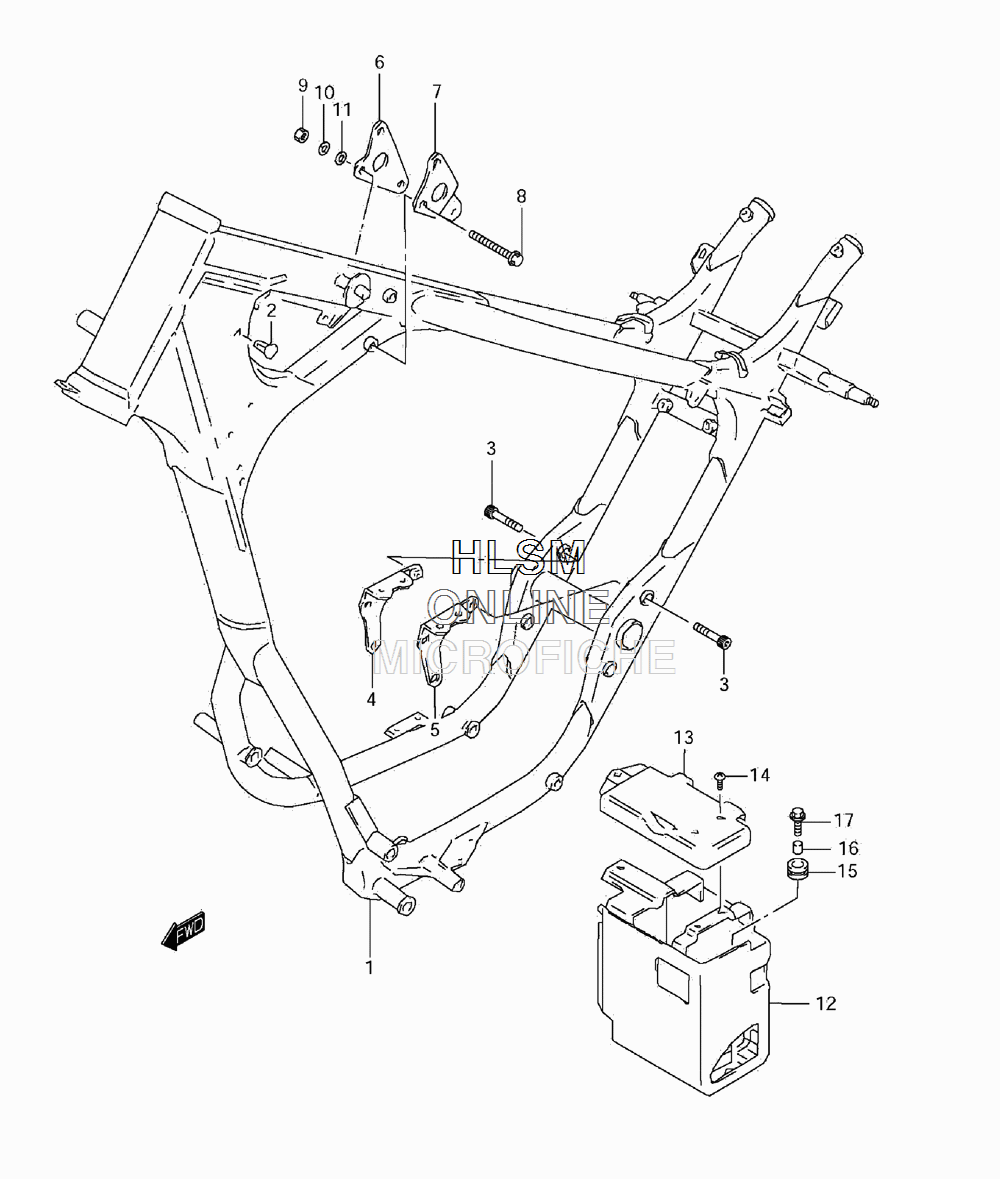

FRAME для Suzuki LS-650 L1 - 2011 года выпуска
-
№АртикулНазвание
-
141100-24B01-019 FRAME (BLACK)FRAME (BLACK)
-
209409-06306 CLIPCLIP
-
309106-08074 BOLT (8X40)BOLT (8X40)
-
441970-24B00-019 PLATE, ENGINE MOUNTING NO.4 RIGHT HAND (BLACK)PLATE, ENGINE MOUNTING NO.4 RIGHT HAND (BLACK)
-
541980-24B00-019 PLATE, ENGINE MOUNTING NO.4 LEFT HAND (BLACK)PLATE, ENGINE MOUNTING NO.4 LEFT HAND (BLACK)
-
641991-24B00-019 PLATE, ENGINE MOUNTING NO.5 RIGHT HAND (BLACK)PLATE, ENGINE MOUNTING NO.5 RIGHT HAND (BLACK)
-
741992-24B00-019 PLATE, ENGINE MOUNTING NO.5 LEFT HAND (BLACK)PLATE, ENGINE MOUNTING NO.5 LEFT HAND (BLACK)
-
809103-08279 BOLT (8X72)BOLT (8X72)
-
908319-2108A NUTNUT
-
1008321-0108B LOCK WASHERLOCK WASHER
-
1108322-0108B WASHERWASHER
-
1241540-24B01 HOLDER, BATTERYHOLDER, BATTERY
-
1341576-24B01 COVER, BATTERYCOVER, BATTERY
-
1402142-04107 SCREW, COVERSCREW, COVER
-
1509320-08021 CUSHIONCUSHION
-
1609180-06260 SPACER (6.5X9X7.2)SPACER (6.5X9X7.2)
-
1709116-06010 BOLT (6X20)BOLT (6X20)
