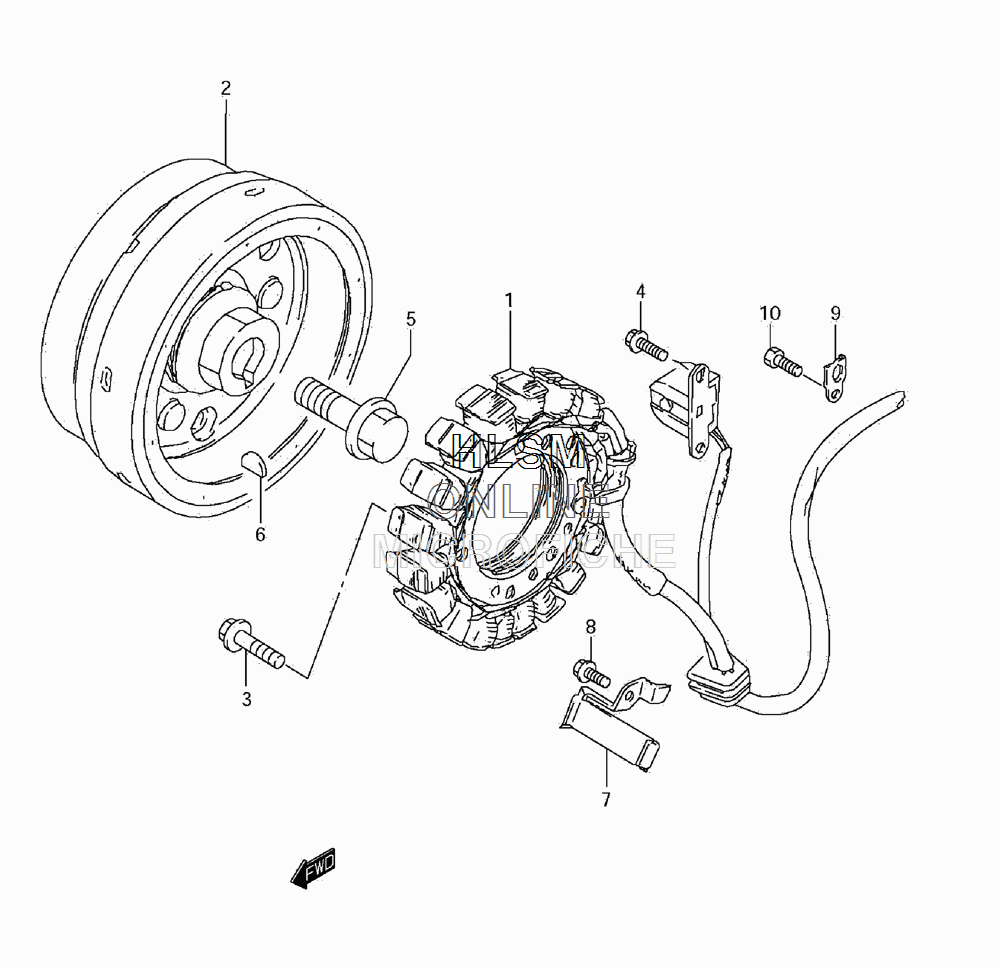

MAGNETO для Suzuki LS-650 L1 - 2011 года выпуска
-
№АртикулНазвание
-
132101-24B02 STATOR ASSYSTATOR ASSY
-
232102-24B10 ROTORROTOR
-
301547-0625B BOLTBOLT
-
401547-0510B BOLTBOLT
-
509103-14001 BOLT (14X43)BOLT (14X43)
-
609420-05007 KEYKEY
-
732371-24B00 CLAMP, LEAD WIRE NO.1CLAMP, LEAD WIRE NO.1
-
801547-0510B BOLTBOLT
-
931497-45000 CLAMP, LEAD WIRE NO.2CLAMP, LEAD WIRE NO.2
-
1009100-05019 BOLT (5X10)BOLT (5X10)
